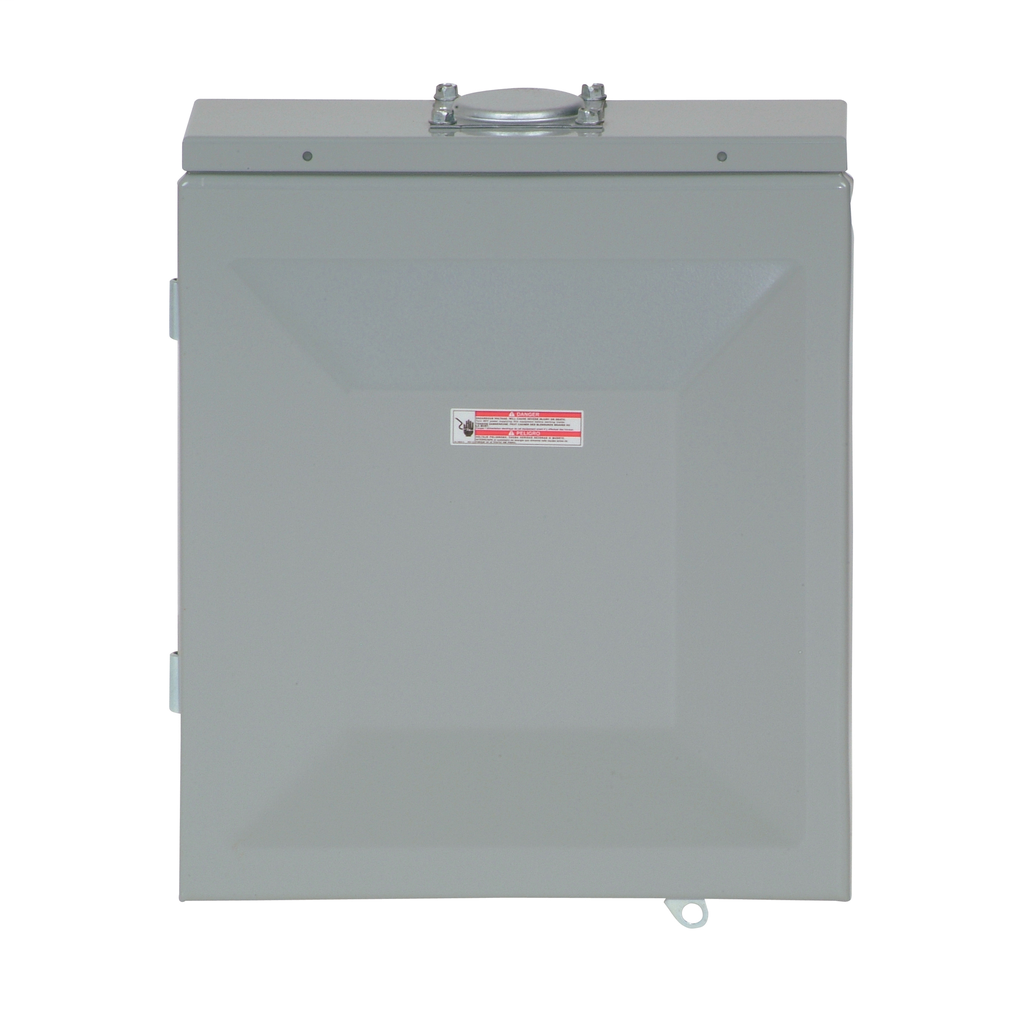

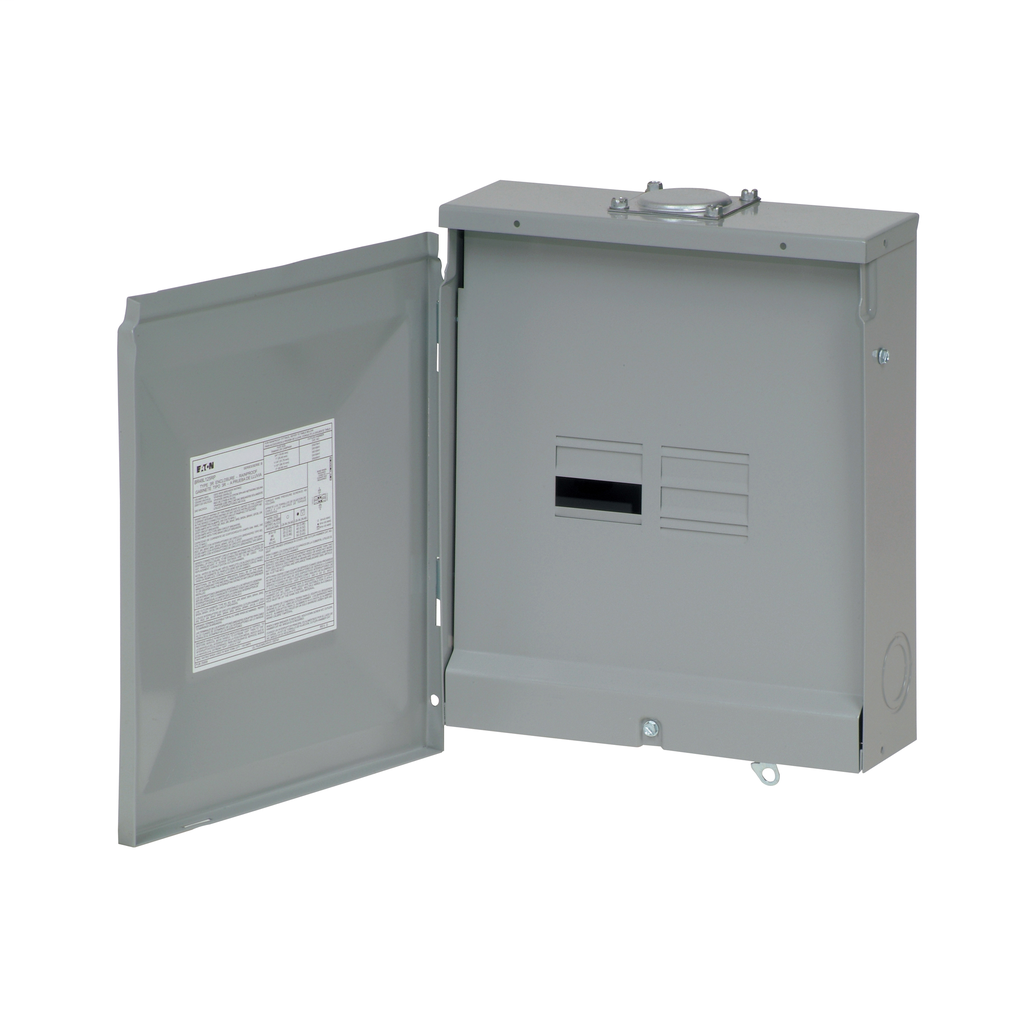

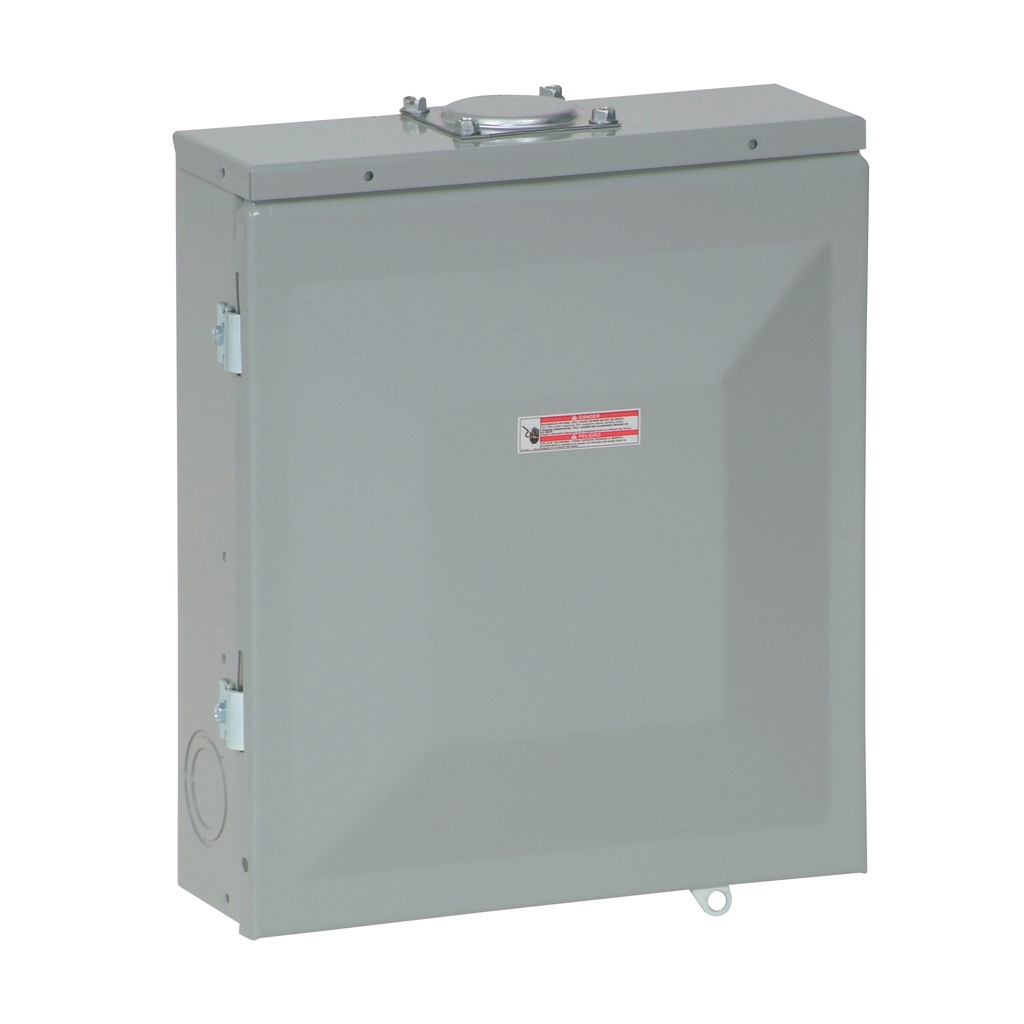

Cutler-Hammer BR48L125RP Loadcenter Main Lug 125A 120/240V 8-Circuit BR 1-Inch Breakers Metallic NEMA 3R
The BR style 1-inch loadcenter by Cutler-Hammer is expertly designed for efficient electrical distribution with a focus on reliability and safety. This metallic enclosure features a main lug type and accommodates eight circuits, making it an ideal choice for residential or light commercial applications. With a voltage rating of 120/240V and an amperage capacity of 125A, it supports a variety of wiring configurations, utilizing wire sizes from #14 to 1/0 AWG for both copper and aluminum installations. This loadcenter not only includes a cover for enhanced protection but also features an interrupt rating of 10 kAIC to ensure safe operation under varying electrical loads. Its compact dimensions allow for versatility in installation, while the aluminum bus material contributes to efficient current flow. Built for single-phase applications, it is designed to work seamlessly with Type BR 1-inch breakers, making it a practical and effective solution for modern electrical systems.
- Includes cover for protection against accidental contact
- NEMA 3R metallic enclosure for outdoor and damp location use
- 125A amperage rating for moderate electrical loads
- 10 kAIC interrupt rating for short-circuit protection
- Single-phase configuration for residential and light commercial use
- Eight-pole design supporting multiple circuits
- Compatible with Type BR 1-inch breakers for easy integration
- Accepts #14-1/0 AWG copper or aluminum wiring
- Aluminum bus material offering corrosion resistance and reliable conductivity
Specifications
- Voltage Rating: 120/240V
- Number Of Wires: Three-wire
- Number Of Circuits: 8
- Cover: Cover included
- Box Size: 7r
- Type: Main lug
- Number Of Poles: Eight-pole
- Enclosure Material: Metallic
- Wire Size: #14-1/0 AWG Cu/Al
- Height: 13 IN
- Weight: 23 LB
- Main Circuit Breaker: BR
- Interrupt Rating: 10 kAIC
- Used With: Type BR 1-inch breakers
- Special Features: Current design
- Phase: Single-phase
- Bus Material: Aluminum
- Length: 3.56 IN
- Amperage Rating: 125A
- Width: 11 IN
- Enclosure: NEMA 3R
- Number Of Spaces: 4
