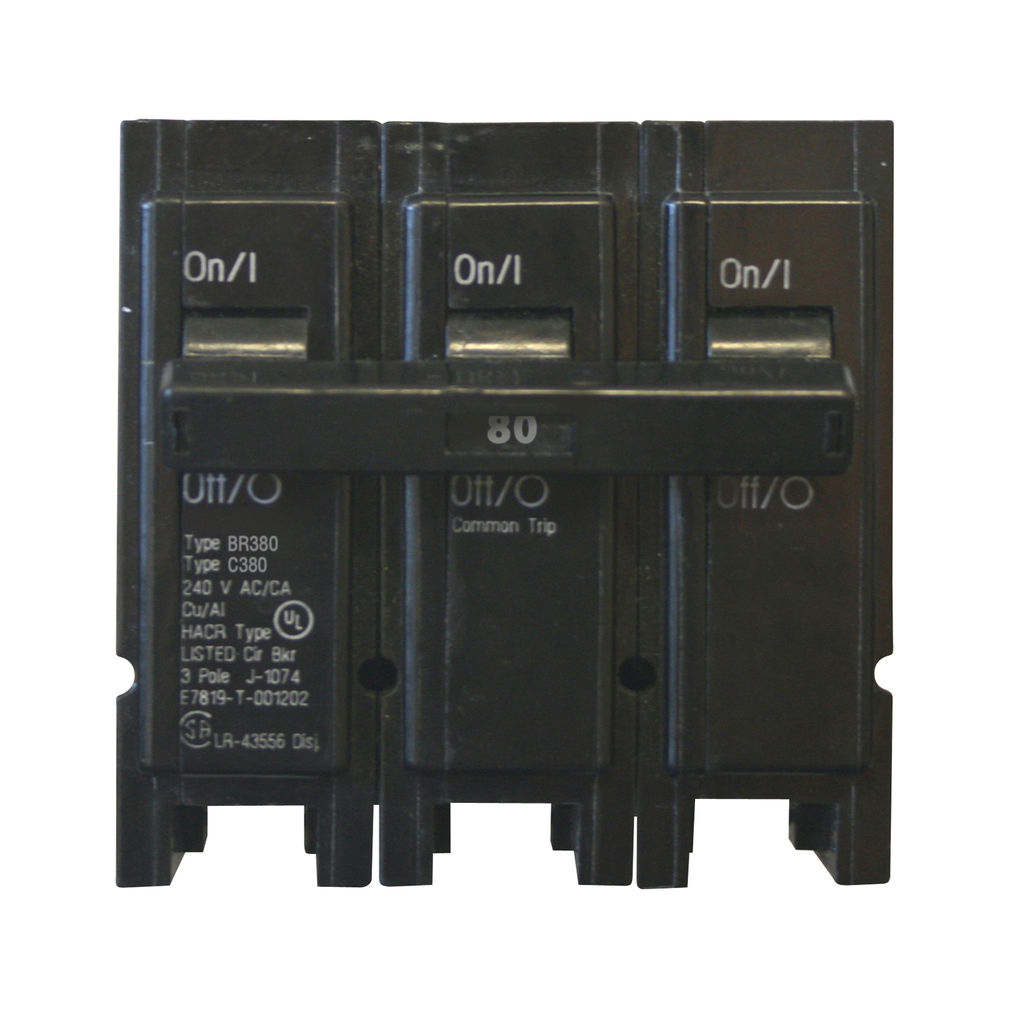

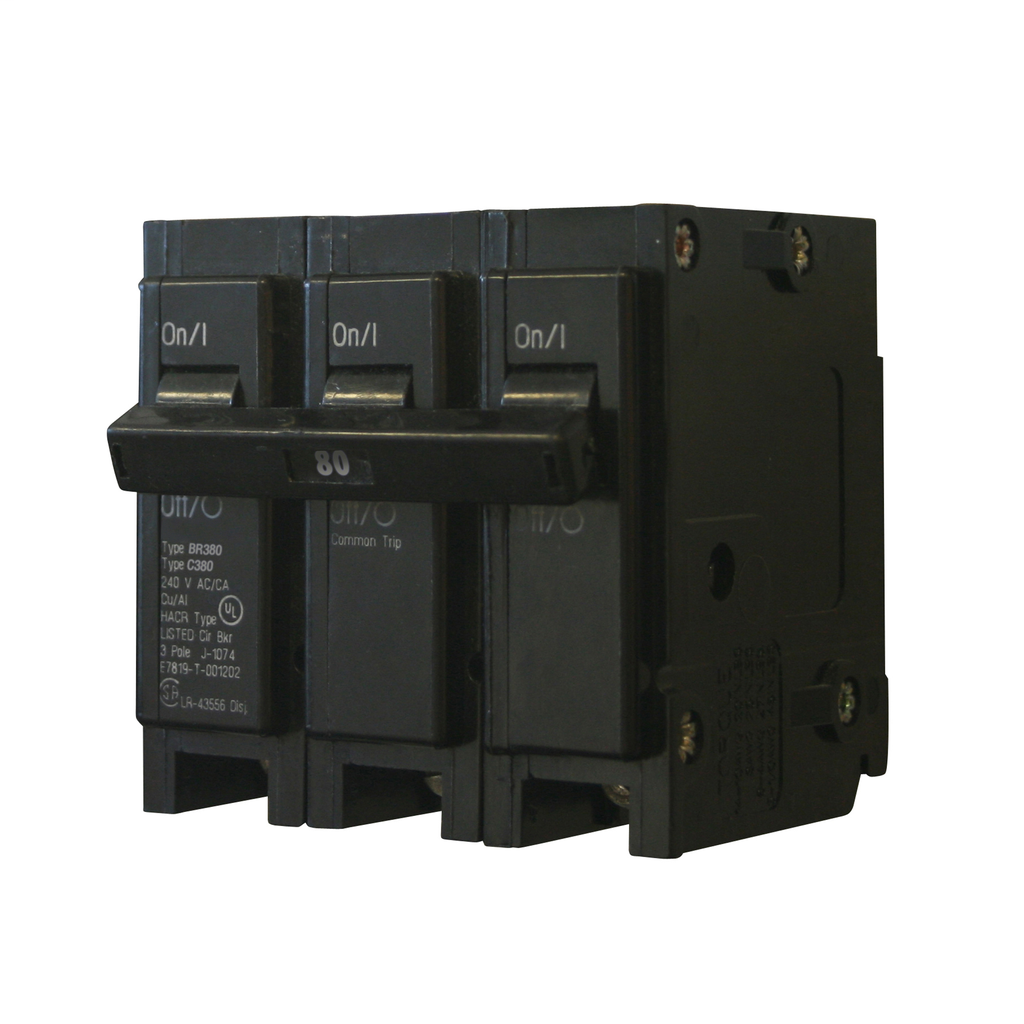

Cutler-Hammer BR380 Circuit Breaker Three-pole 80A 240V 10 kAIC Plug-on
The Type BR 1-Inch Plug-On Circuit Breaker from Cutler-Hammer exemplifies reliable performance for circuit protection in various applications. Designed with a main circuit breaker configuration, this three-pole unit supports wire sizes of #4 to 1/0 AWG for both copper and aluminum conductors, making it versatile for different wiring requirements. With a voltage rating of 240V and an interrupt rating of 10 kAIC, it can effectively handle significant overloads while ensuring safety and preventing equipment damage. This circuit breaker is specifically designed for use with Type BR Loadcenters and comes equipped with a common trip type, ensuring simultaneous tripping of all poles, enhancing operational reliability.
- Common trip type ensures simultaneous disconnection to enhance safety
- 10 kAIC interrupt rating for effective overload and short circuit protection
- Rated for 240V applications suitable for residential and light commercial use
- Supports #4-1/0 AWG copper and aluminum wiring for versatile installation
- Plug-on mounting for quick, tool-free installation
- Compatible with Type BR Loadcenters for seamless integration
- UL 489 certified for safety and reliability compliance
- Meets Federal Specifications W-C375 ensuring quality and standards adherence
- Three-pole design for coordinated multi-wire protection
- Amperage: 80A
- Interrupt Rating: 10 kAIC
- Voltage: 240V
- Number of Poles: Three-pole
- Length: 3.25 in
- Width: 3 in
- Height: 4 in
- Weight: 1 lb
- Mounting: Plug-on
- Wire Size: #4-1/0 AWG Cu/Al
- Main Circuit Breaker: BR
- Used With: Type BR Loadcenters
- Trip Type: Common
- Compliance: UL 489, Federal Specifications W-C375
