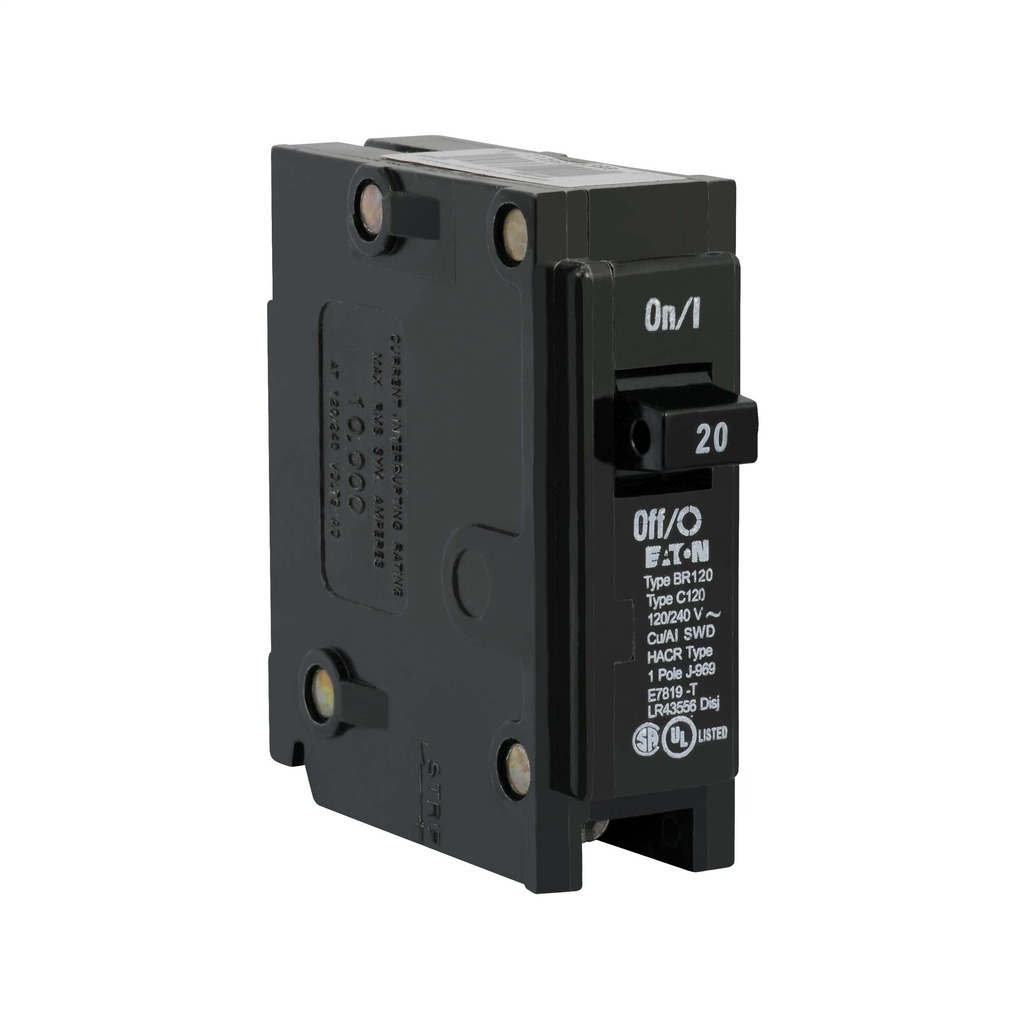

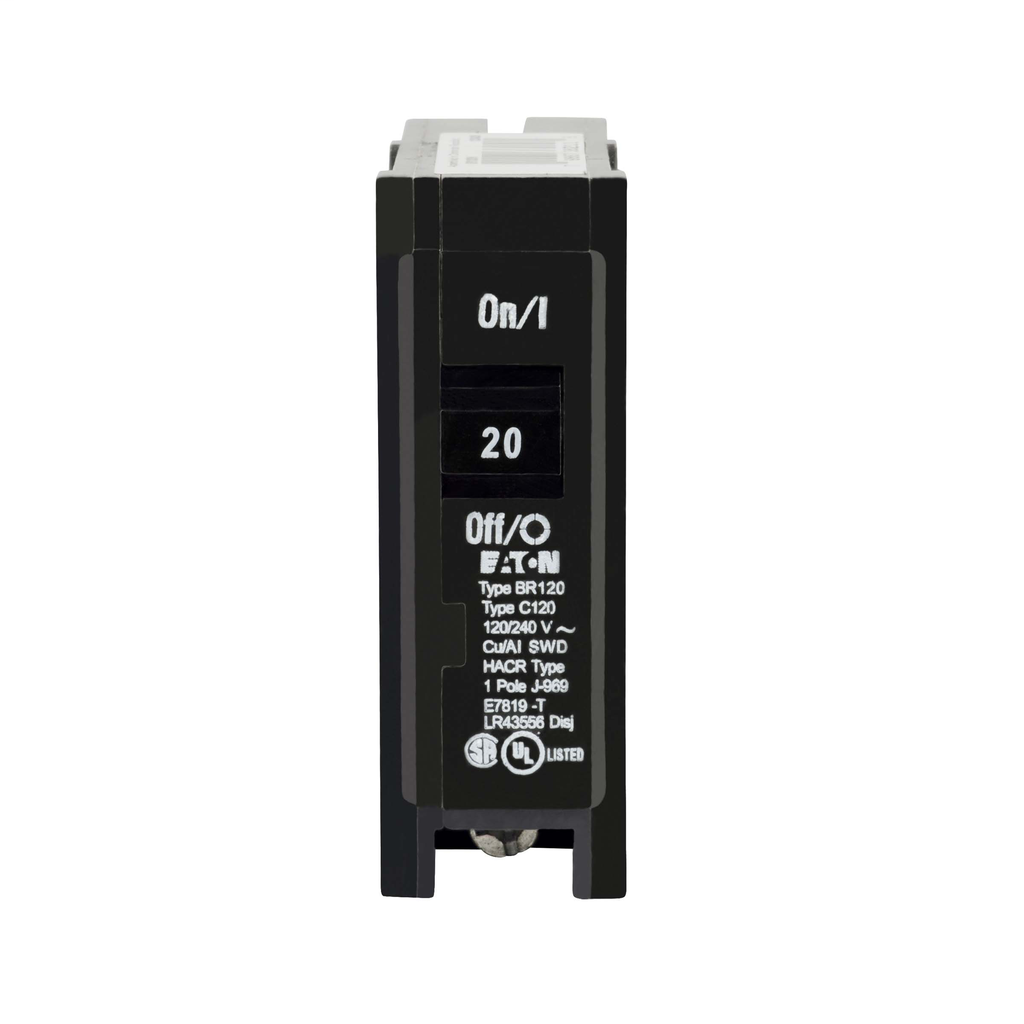

Cutler-Hammer BR120 Thermal Magnetic Single-Pole 20A 120/240V Plug-on Circuit Breaker
The Type BR 1-inch Plug-on Circuit Breaker from Cutler-Hammer is engineered for seamless integration within Type BR loadcenters, providing both reliability and efficiency in power management. Designed with a thermal-magnetic mechanism, this circuit breaker offers robust overcurrent protection with an impressive interrupt rating of 10 kAIC, ensuring safety in electrical systems. Its compact size makes installation straightforward, accommodating wire sizes from #14 to #4 AWG for both copper and aluminum applications. Operating at an amperage rating of 20A and a voltage rating of 120/240V, this single-pole circuit breaker meets the rigorous demands of modern electrical systems, making it a preferred choice for residential and commercial applications alike.
- Thermal magnetic mechanism for reliable overcurrent protection
- Interrupt rating of 10 kAIC for high fault current safety
- UL 489 and Federal Specification W-C375 compliance for safety assurance
- Supports wire sizes #14-4 AWG for copper and aluminum conductors
- Single-pole design suitable for 120/240V electrical systems
- Plug-on mounting for easy installation and integration
- Compatible with Type BR loadcenters for seamless system upgrades
- Compact 1-inch width for space-saving panel design
- Limited lifetime warranty for residential use and one year commercial warranty
- Amperage: 20A
- Interrupt Rating: 10 kAIC
- Voltage: 120/240V
- Number of Poles: Single-pole
- Type: Thermal magnetic circuit breaker
- Length: 2.5 in
- Height: 3 in
- Width: 1 in
- Weight: 0.3 lb
- Wire Size: #14-4 AWG Cu/Al
- Mounting: Plug-on
- Used With: Type BR loadcenters
- Main Circuit Breaker: BR
- Compliance: UL 489, Federal Spec W-C375
