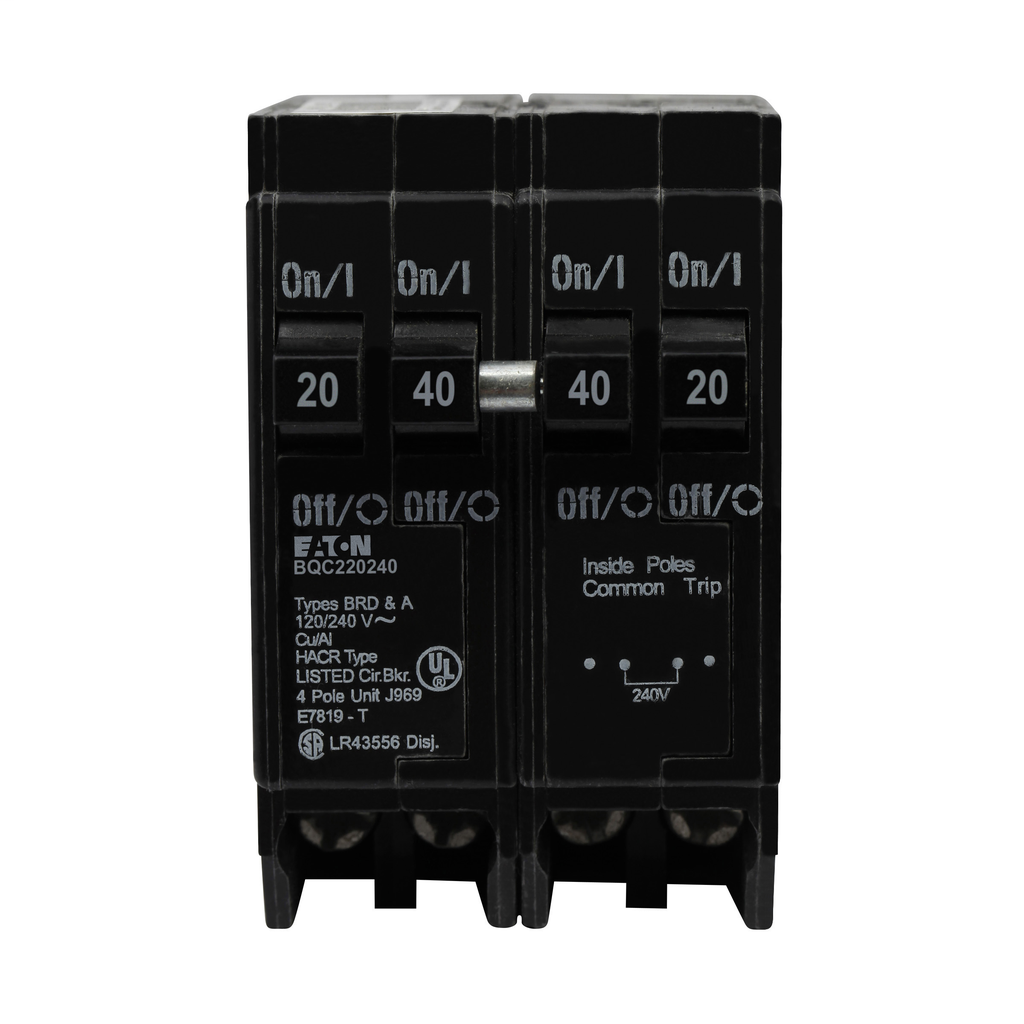

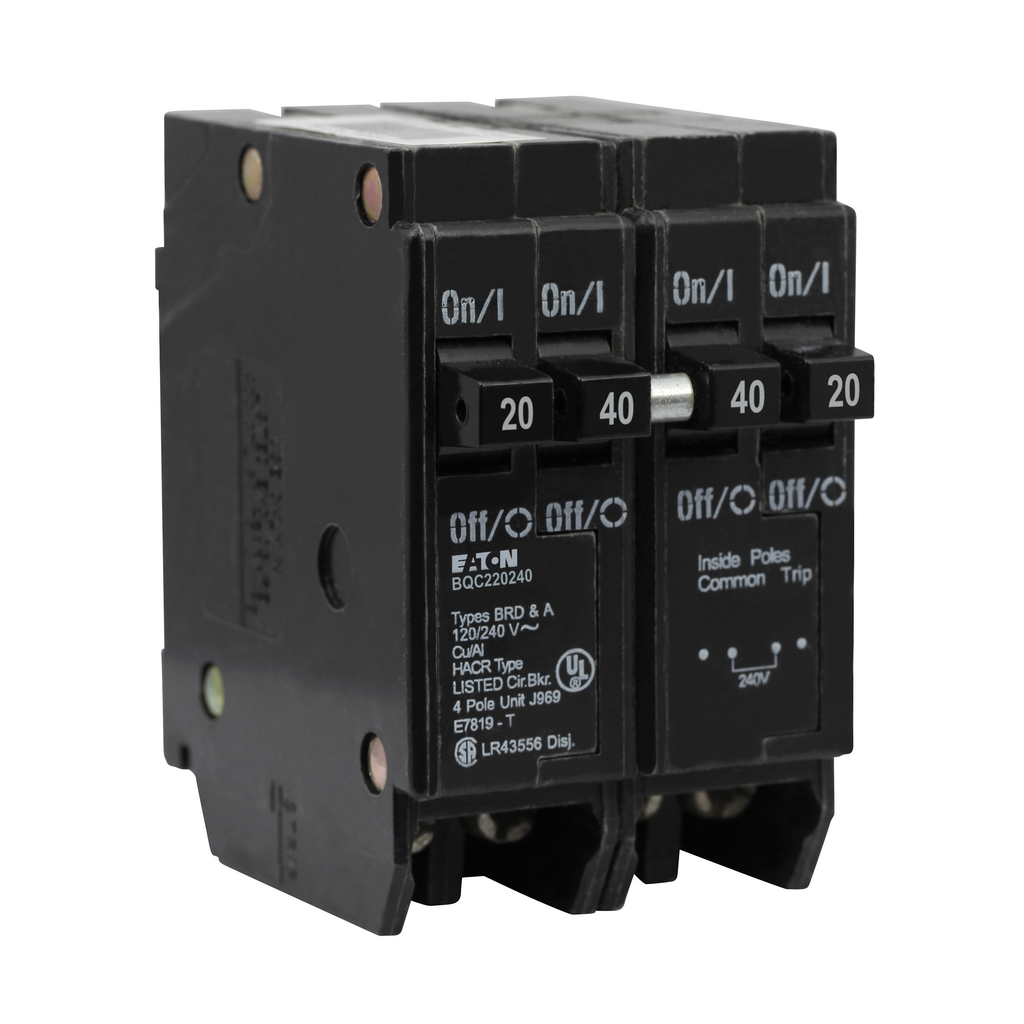

Cutler-Hammer BQC220240 Four-Pole Plug-on Breaker 120/240V 10 kAIC Common Trip #14-4 AWG CuAl
Engineered for versatility and high performance, the Type BQC 1-inch CTL Plug-on Breaker from Cutler-Hammer is a reliable solution for modern electrical systems. This four-pole breaker is designed to fit seamlessly with Type BR loadcenters and boasts an interrupt rating of 10 kAIC, ensuring robust protection against overloads and short circuits. Its ability to accommodate a wide range of wire sizes, from #14 to #4 AWG for both copper and aluminum, makes it adaptable to various installations. Featuring a common trip type for coordinated operation and a built-in Rejection Tab for added security, this breaker is both user-friendly and efficient. With a voltage rating of 120/240V and options for two-pole configurations at 20A and 40A, it is suited for diverse applications while meeting necessary HACR standards for compatibility with certain types of devices.
- 10 kAIC interrupt rating for robust overload protection
- Common trip type for coordinated breaker operation
- HACR listed for HVAC and refrigerant compressor compatibility
- Voltage rated at 120/240V for residential and commercial use
- Plug-on mounting for easy installation
- Compatible with Type BR loadcenters
- Supports #14 to #4 AWG copper and aluminum wire sizes
- Includes rejection tab feature for enhanced installation security
- Four-pole design for multi-circuit protection
- Meets UL 489 certification and Federal Specifications W-C375 compliance
- Amperage: Two-Pole 20A, Two-Pole 40A
- Interrupt Rating: 10 kAIC
- Voltage Rating: 120/240V
- Number of Poles: Four-pole
- Type: Type BQC 1-inch CTL Plug-on Breaker
- Mounting: Plug-on
- Trip Type: Common
- Wire Size: #14-4 AWG Cu/Al
- Special Features: Includes Rejection Tab feature
- Used With: Type BR Loadcenters
- Compliance: UL 489, Federal Specs W-C375
