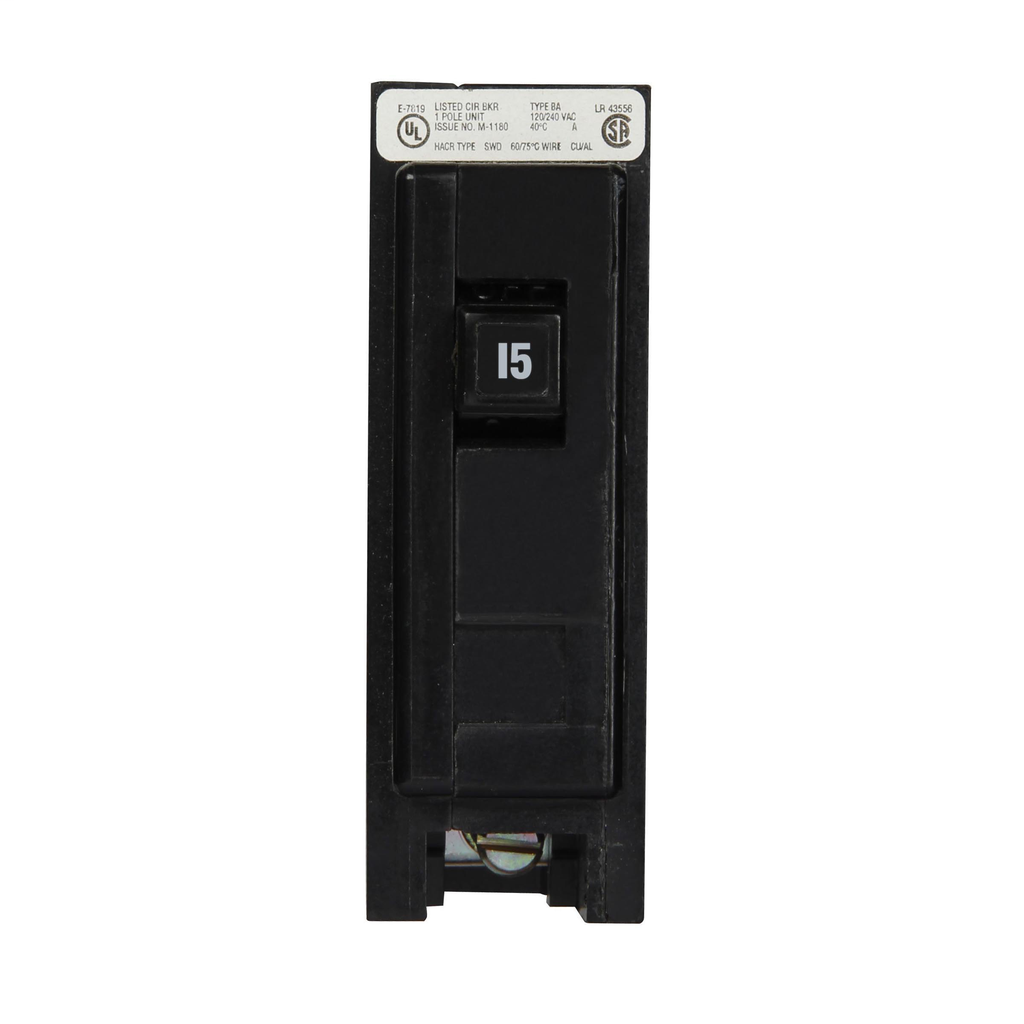

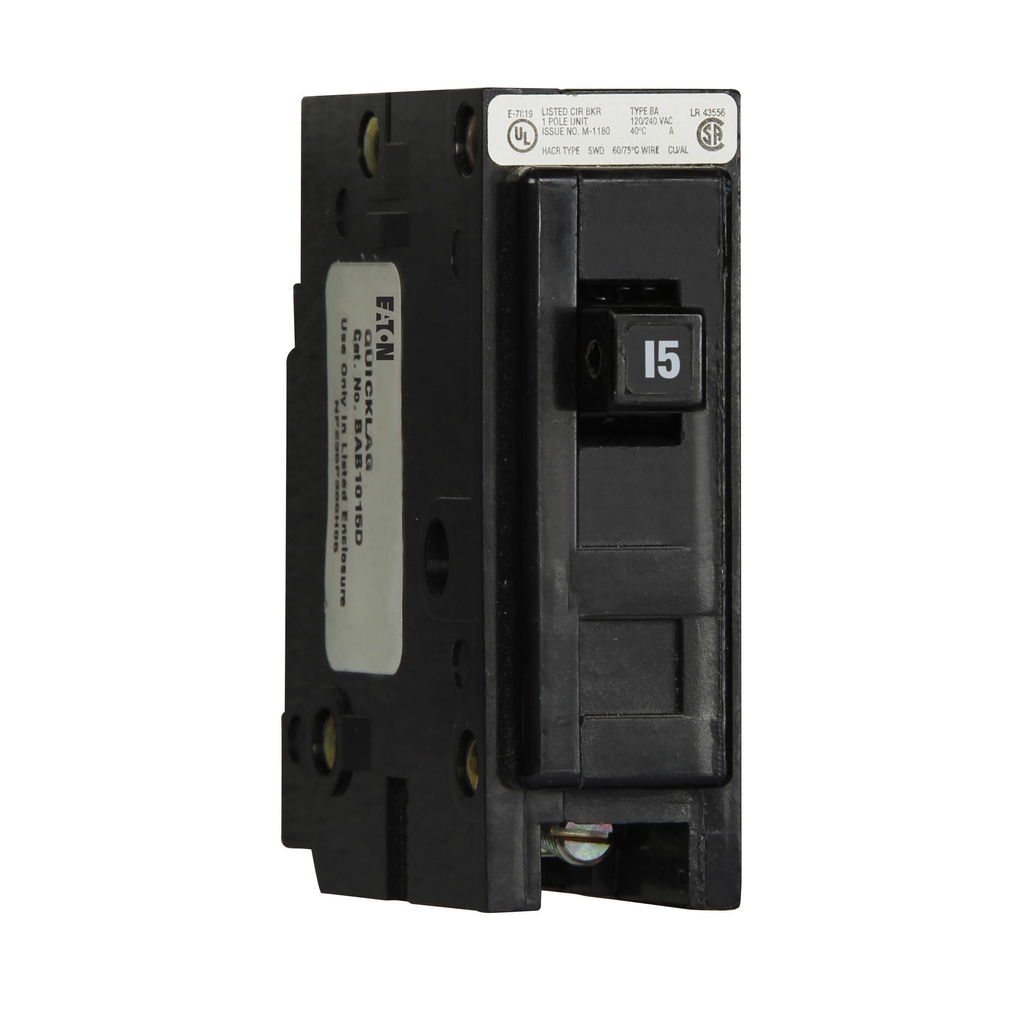

Cutler-Hammer BAB1015 Circuit Breaker 1 Pole 15A 120-240V 10kAIC
This 15A single-pole circuit breaker from Cutler-Hammer is engineered for reliable electrical protection in residential and commercial settings. Designed to operate at a voltage range of 120 to 240 VAC, it features a thermal-magnetic mechanism that ensures dependable operation under various conditions. With an interrupt rating of 10 kAIC, this circuit breaker provides robust defense against overcurrents, safeguarding your circuits from potential damage. Its non-interchangeable trip type enhances safety, while the terminal design allows for easy connections using ring or spade lug terminals. Compliance with UL and CSA standards confirms its quality and suitability for diverse applications.
- UL Listed and CSA Certified for assured quality and compliance
- Thermal-magnetic mechanism for reliable overcurrent protection
- 10 kAIC interrupt rating provides strong protection against high fault currents
- Non-interchangeable trip type enhances electrical safety
- Rated for 15A amperage handling in residential and commercial circuits
- Supports 120-240V voltage range for versatile electrical applications
- Single-pole design for straightforward circuit integration
- Ring or spade lug terminals allow easy, secure electrical connections
- Voltage: 120/240 VAC
- Amperage: 15 A
- Interrupt Rating: 10 kAIC
- Number of Poles: 1
- Type: Thermal-magnetic circuit breaker
- Trip Type: Non-Interchangeable
- Terminal Type: Ring or spade lug terminals
- Height: 4.8 in
- Length: 3.7 in
- Width: 1.2 in
- Weight: 0.35 lb
- Compliance: UL Listed, CSA Certified
