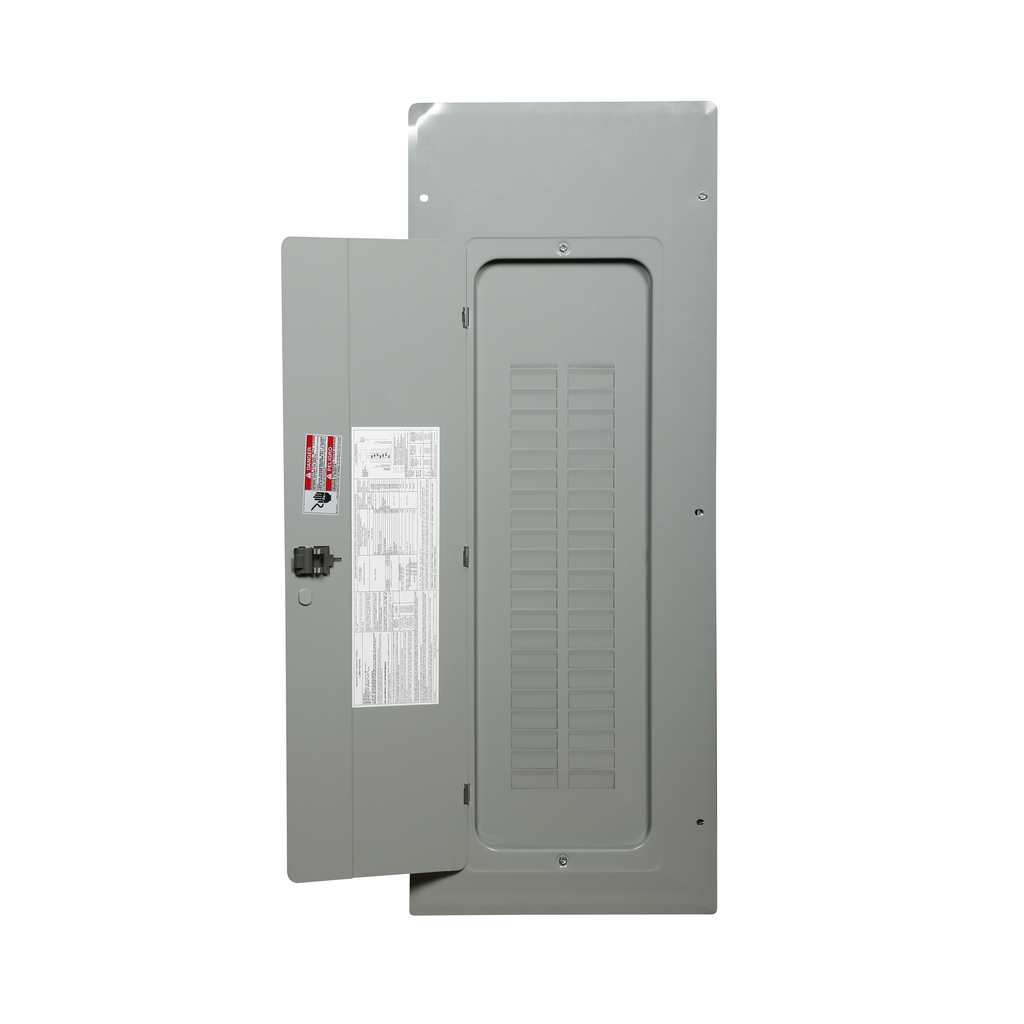

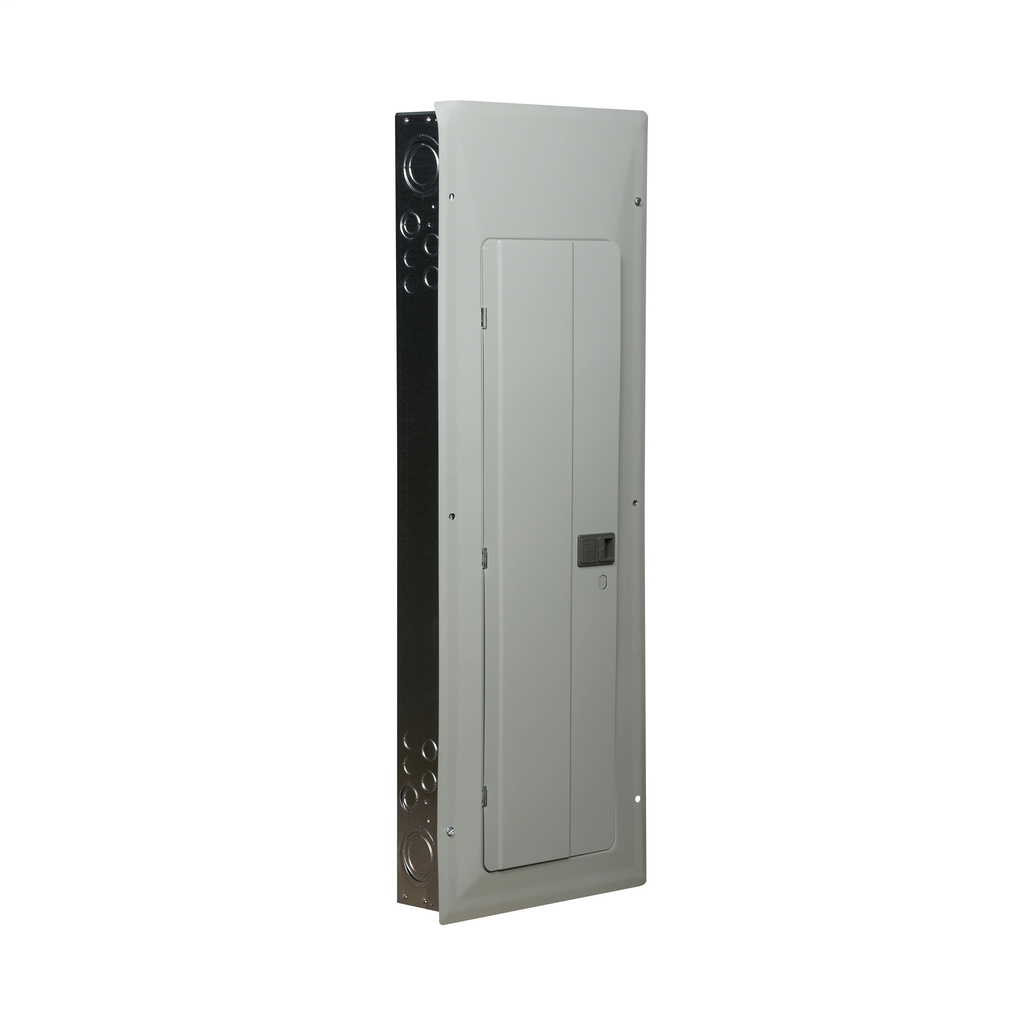

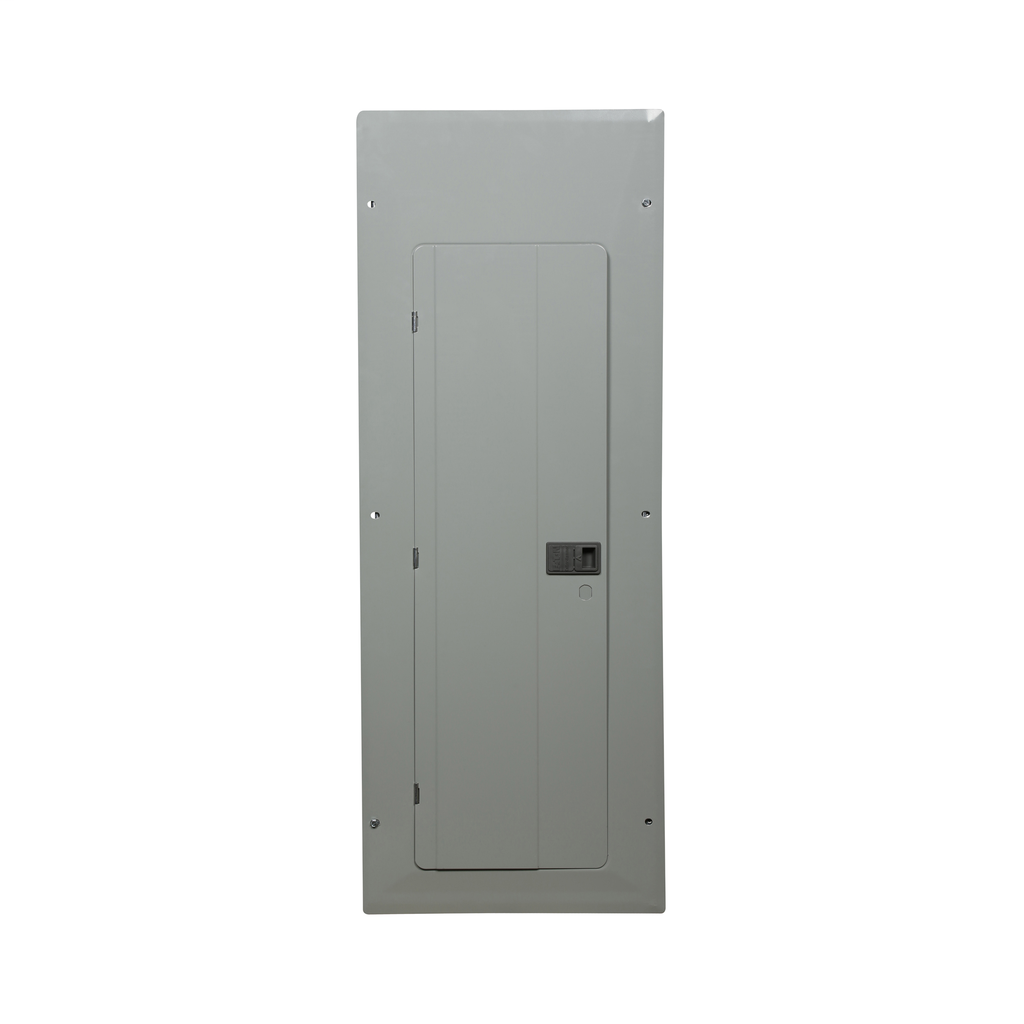

Cutler-Hammer 3BR4242L225 Loadcenter 225A 42 Circuits Three-phase 208Y/120 240V NEMA 1 Metallic Aluminum Bus

Engineered by Cutler-Hammer, this BR style commercial loadcenter is designed for robust electrical distribution in commercial settings. With an amperage rating of 225A, it accommodates up to 42 circuits, making it an efficient choice for managing diverse electrical loads. Exceptionally versatile, it supports Type BR 1-inch breakers and operates on a three-phase system, delivering reliable performance at voltage ratings of 208Y/120 or 240V. The loadcenter features a durable metallic enclosure that meets NEMA 1 specifications, ensuring a secure and reliable housing for your electrical connections. Its combination mounting style allows greater flexibility for installation, while the aluminum bus material enhances conductivity and efficiency. With a 25 kAIC interrupt rating and a four-wire configuration, this loadcenter provides dependable safety and serviceability within your electrical infrastructure.

• 25 kAIC interrupt rating for high fault current protection
• Rated for 225A amperage to handle high electrical loads
• Supports up to 42 circuits for comprehensive electrical distribution
• Three-phase system for balanced power delivery
• Four-wire configuration supporting safe and reliable connections
• Durable metallic enclosure meeting NEMA 1 standards for indoor protection
• Aluminum bus material for enhanced conductivity and efficiency
• Combination mounting style for flexible installation options
• Compatible with Type BR 1-inch breakers for versatile use
• Included cover for secure enclosure and protection

• Amperage: 225A
• Voltage Rating: 208Y/120, 240V
• Interrupt Rating: 25 kAIC
• Number of Circuits: 42
• Phase: Three-phase
• Number of Wires: Four-wire
• Length: 3.88 in
• Width: 14.31 in
• Height: 45 in
• Wire Size: #1 AWG-300 kcmil Cu/Al
• Mounting: Combination
• Box Size: L1
• Type: Main lug
• Main Circuit Breaker: BWH
• Bus Material: Aluminum
• Enclosure: NEMA 1
• Enclosure Material: Metallic
• Special Features: No feed-thru lugs
• Cover: Included
• Used With: Type BR 1-inch breakers
• Compliance: UL 50, UL 67
