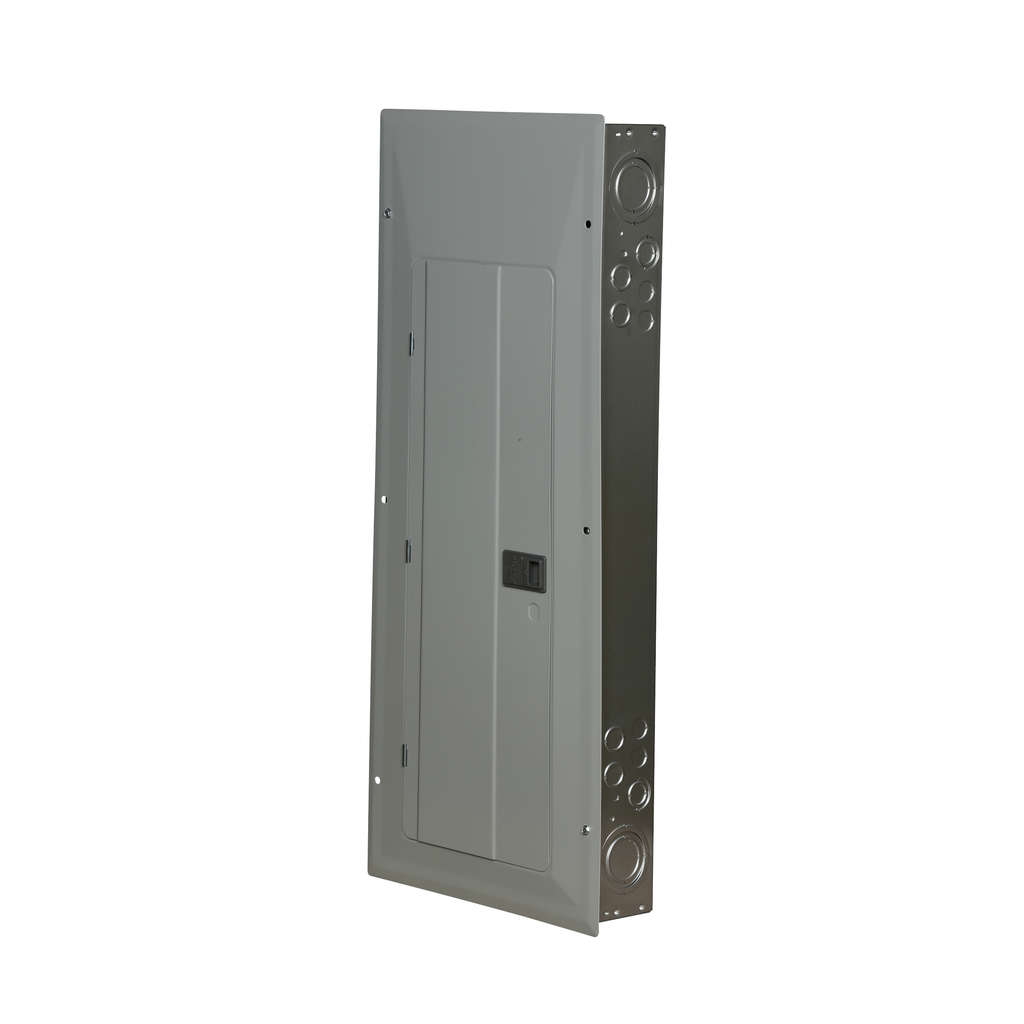

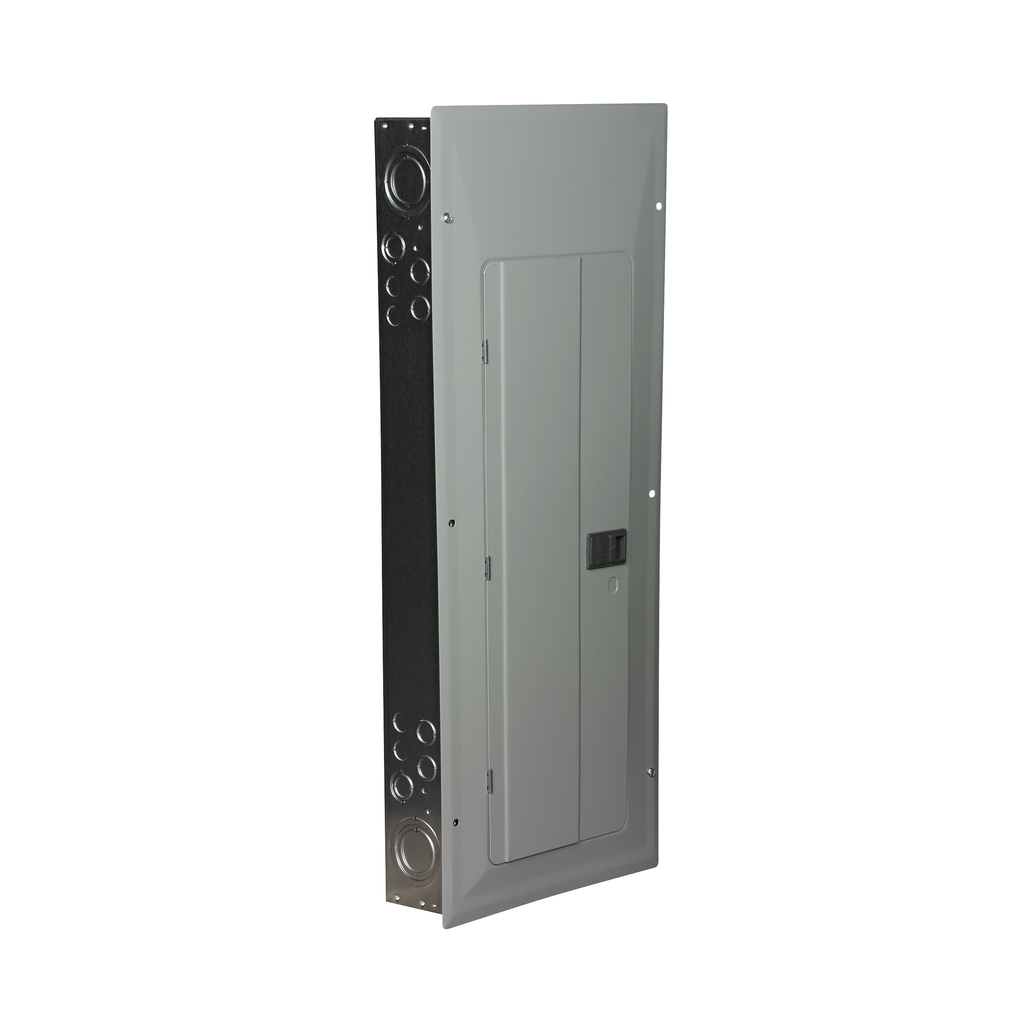

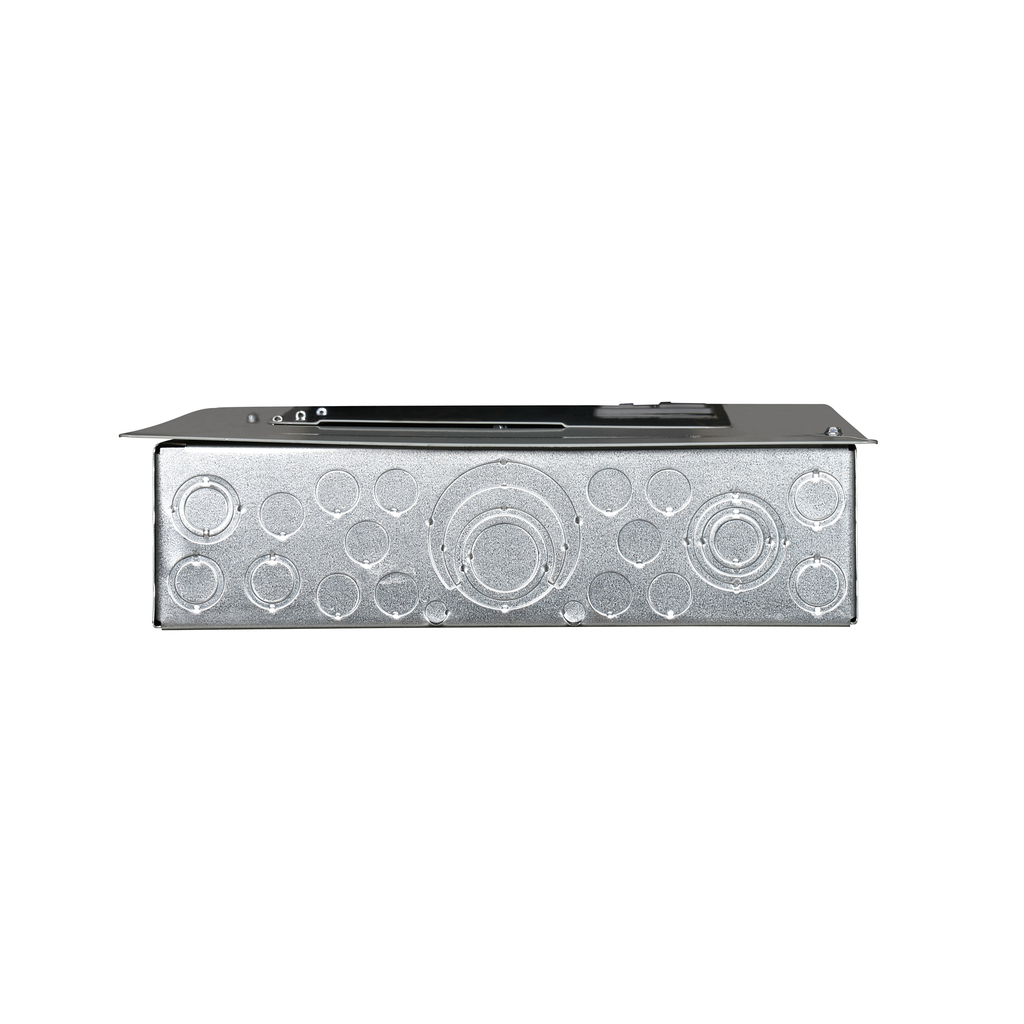

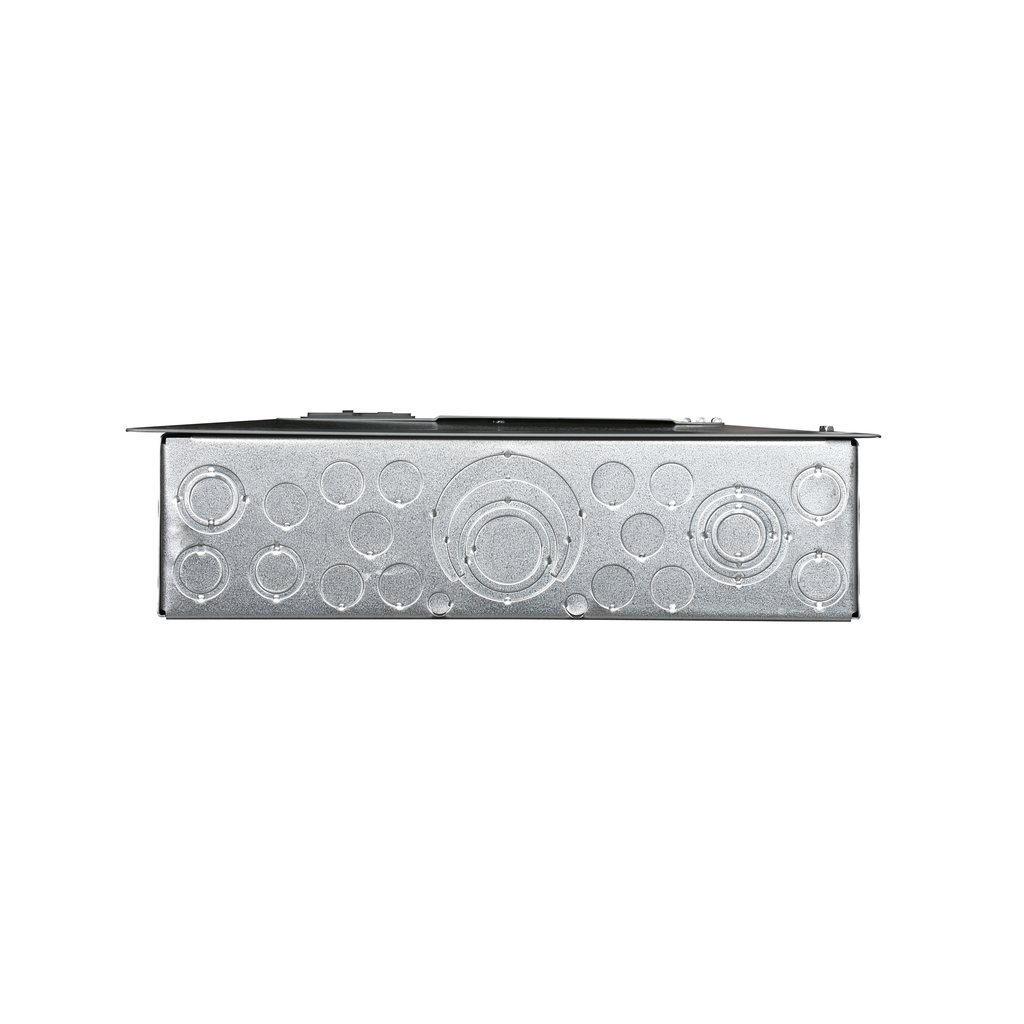

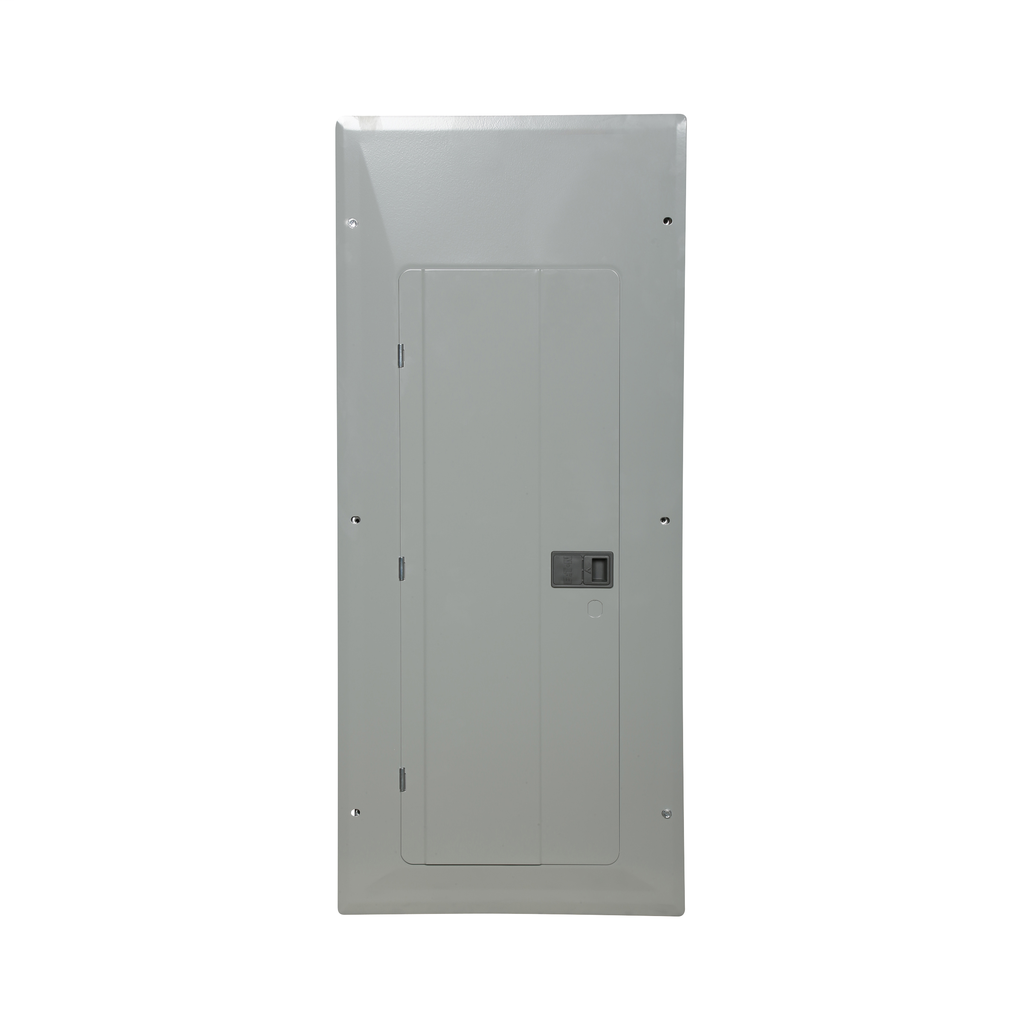

Cutler-Hammer 3BR3042L200 Main Lug Load Center 200A 25 kAIC 42 Circuits NEMA 1 Metallic Aluminum Bus
Engineered for robust performance in commercial applications, the Eaton R style 1-inch loadcenter from Cutler-Hammer stands out with its impressive interrupt rating of 25 kAIC, ensuring reliable circuit protection. This three-phase main lug loadcenter accommodates up to 42 circuits and features a combination mounting design within a sturdy metallic NEMA 1 enclosure. Designed to support Type BR 1-inch breakers, it offers versatility with a voltage rating of both 208Y/120 and 240V, while its aluminum bus material enhances conductivity. With a significant amperage rating of 200A, this loadcenter is constructed to handle demanding electrical needs efficiently, making it a practical choice for any commercial electrical system.
- High interrupt rating of 25 kAIC for superior circuit protection
- Supports up to 42 circuits for extensive electrical distribution
- Three-phase design for commercial power applications
- Aluminum bus material enhances electrical conductivity
- Combination mounting supports flexible installation options
- NEMA 1 metallic enclosure suitable for indoor use
- Compatible with Type BR 1-inch breakers for versatility
- Main lug type design for simplified power feed
- Includes cover for component protection
- No feed-thru lugs to streamline wiring and enhance safety
- Amperage: 200A
- Voltage Rating: 208Y/120, 240V
- Interrupt Rating: 25 kAIC
- Phase: Three-phase
- Length: 35.75 in
- Width: 15.8 in
- Height: 4.5 in
- Weight: 31.4 lb
- Number of Circuits: 42
- Number of Spaces: 30
- Number of Wires: Four-wire
- Wire Size: #1 AWG-300 kcmil Cu/Al
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Enclosure: NEMA 1
- Mounting: Combination
- Type: Main lug
- Main Circuit Breaker: BWH
- Cover: Cover included
- Special Features: No feed-thru lugs
- Used With: Type BR 1-inch breakers
