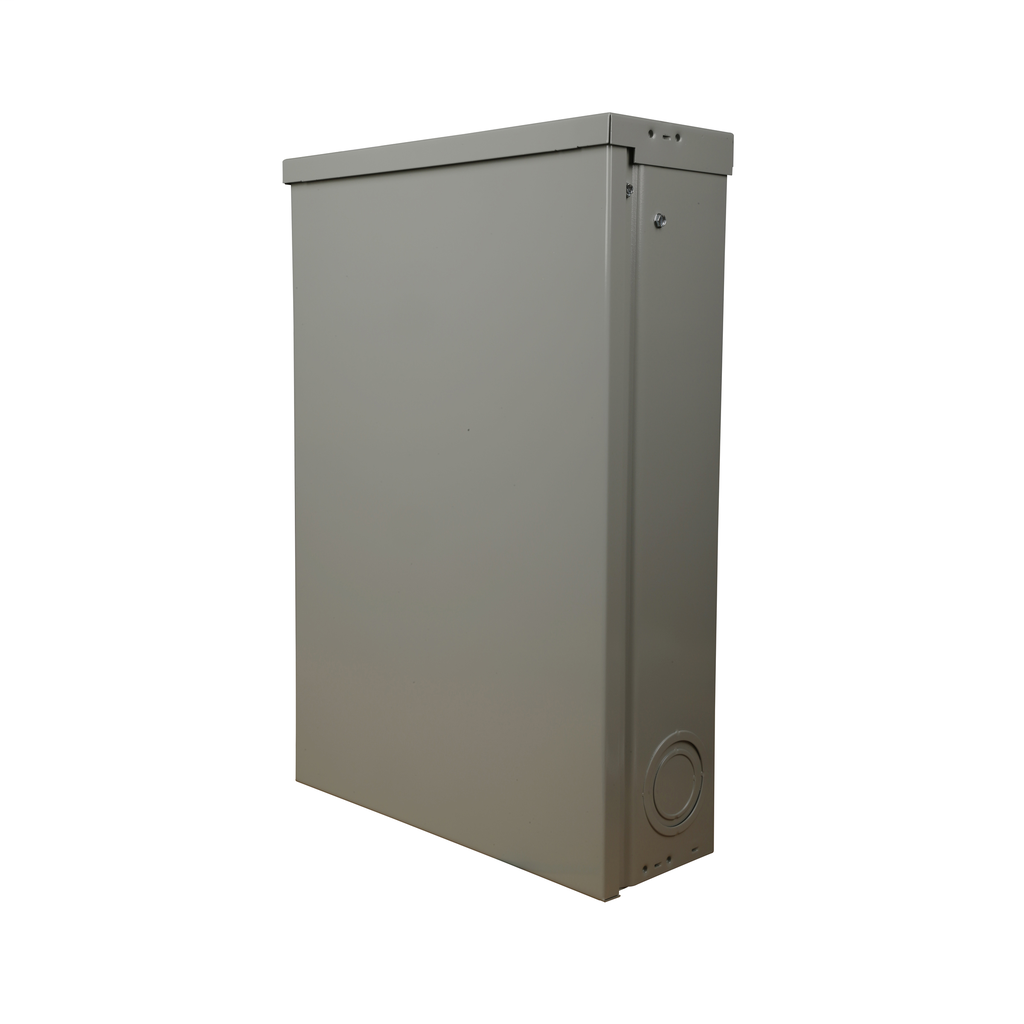

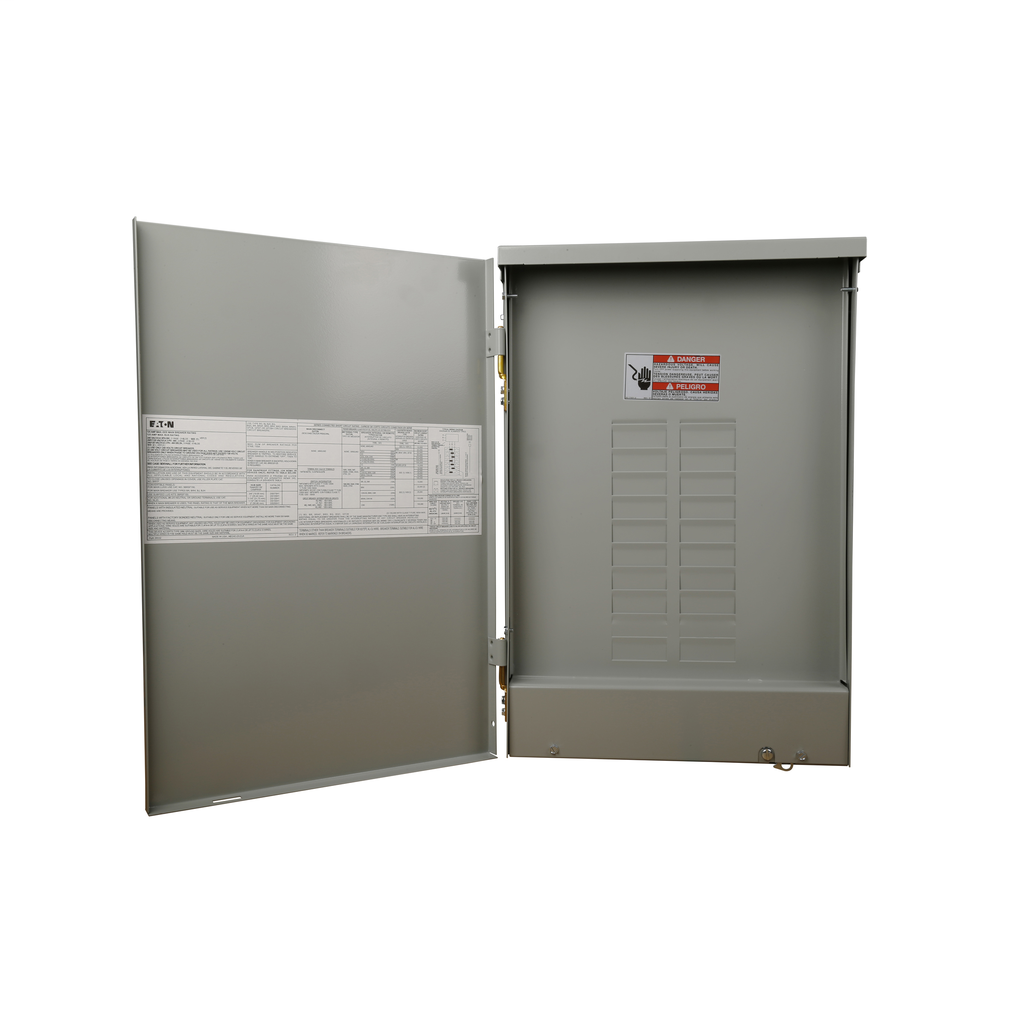

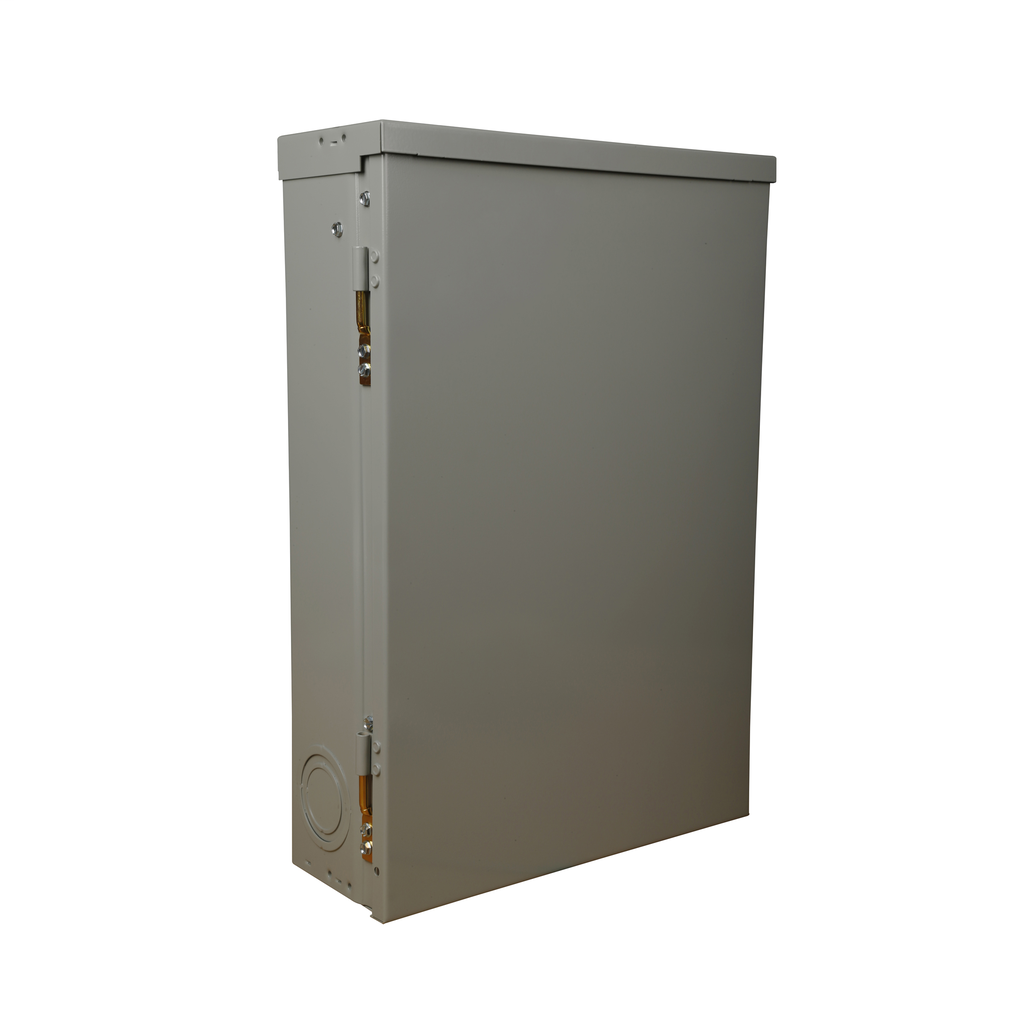

Cutler-Hammer 3BR1224L125R Loadcenter 125A 12 Spaces 10 kAIC 208Y/120 240V 3-Phase 4-Wire Main Lug NEMA 3R Metallic
Engineered for robust performance, the BR style 1-inch commercial loadcenter from Cutler-Hammer combines versatility with reliability for your electrical distribution needs. Designed to accommodate Type BR 1-inch breakers, this loadcenter supports a comprehensive setup with a total of 12 spaces and 24 circuits, making it ideal for applications requiring efficient power management. With a durable metallic enclosure rated NEMA 3R, it is well-suited for various environments, while its impressive interrupt rating of 10 kAIC enhances safety by handling potential fault conditions effectively. This three-phase loadcenter is compatible with wire sizes ranging from #6 to 2/0 AWG for both copper and aluminum, ensuring flexibility in installation. Additionally, the unit features a main lug type configuration and comes equipped with a cover, providing a complete solution for your electrical requirements. Notably, it includes a hold-down screw for secure installation, making this model a practical choice for both commercial and industrial settings.
- 10 kAIC interrupt rating enhances safety
- Durable metallic enclosure rated NEMA 3R for outdoor use
- Supports Type BR 1-inch breakers for versatile configuration
- Accommodates 12 spaces and 24 circuits for efficient power distribution
- Compatible with #6 to 2/0 AWG copper and aluminum wiring
- Three-phase, four-wire design for commercial power systems
- Main lug type configuration simplifies connections
- Includes hold-down screw for secure installation
- Aluminum bus material ensures reliable conductivity and corrosion resistance
- UL 50 and UL 67 listed for safety and performance compliance
- Amperage: 125A
- Interrupt Rating: 10 kAIC
- Voltage Rating: 208Y/120, 240V
- Phase: Three-phase
- Number of Circuits: 24
- Number of Spaces: 12
- Number of Wires: Four-wire
- Wire Size: #6-2/0 AWG Cu/Al
- Type: Main lug
- Length: 5.19 in
- Width: 14.31 in
- Height: 21 in
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Enclosure: NEMA 3R
- Main Circuit Breaker: BR
- Used With: Type BR 1-inch breakers
- Box Size: C1r
- Compliance: UL 50, UL 67
- Special Features: No feed-thru lugs, includes BREQS125 hold-down screw
