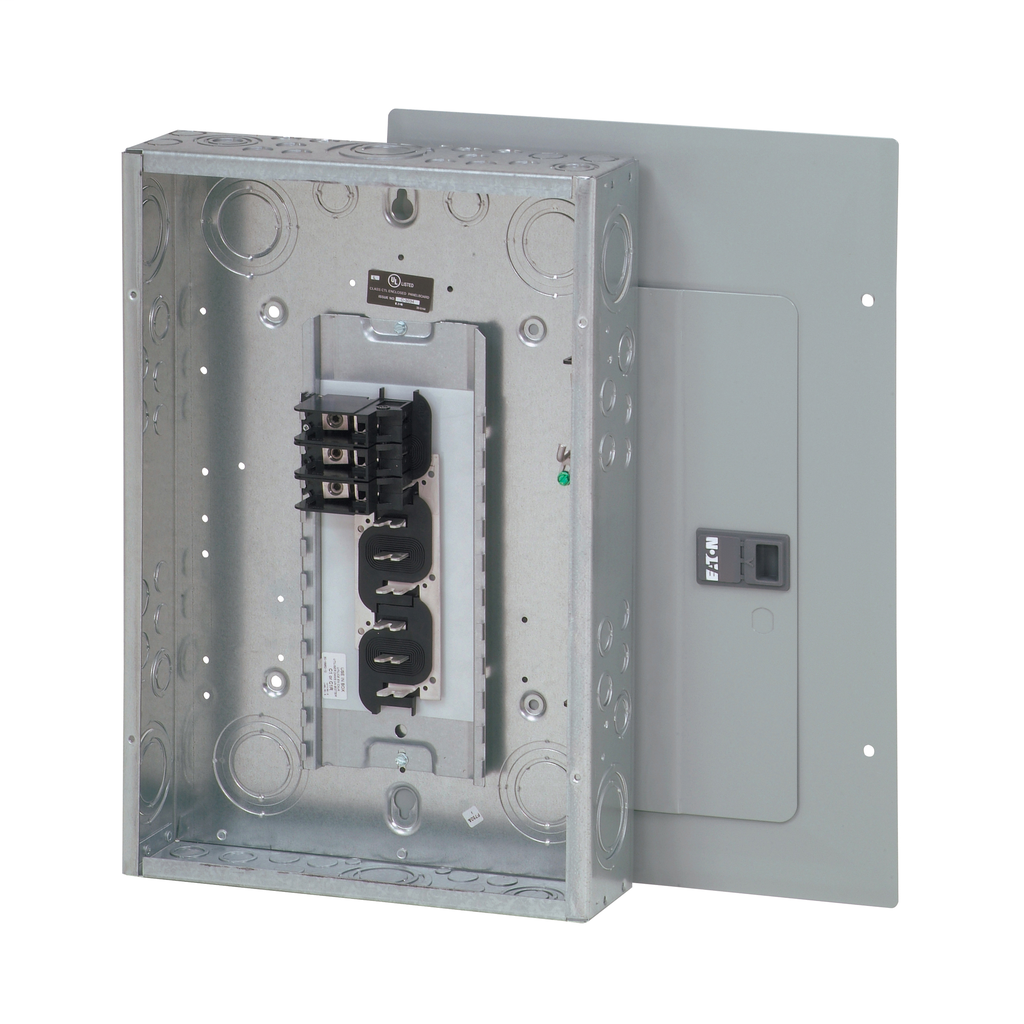

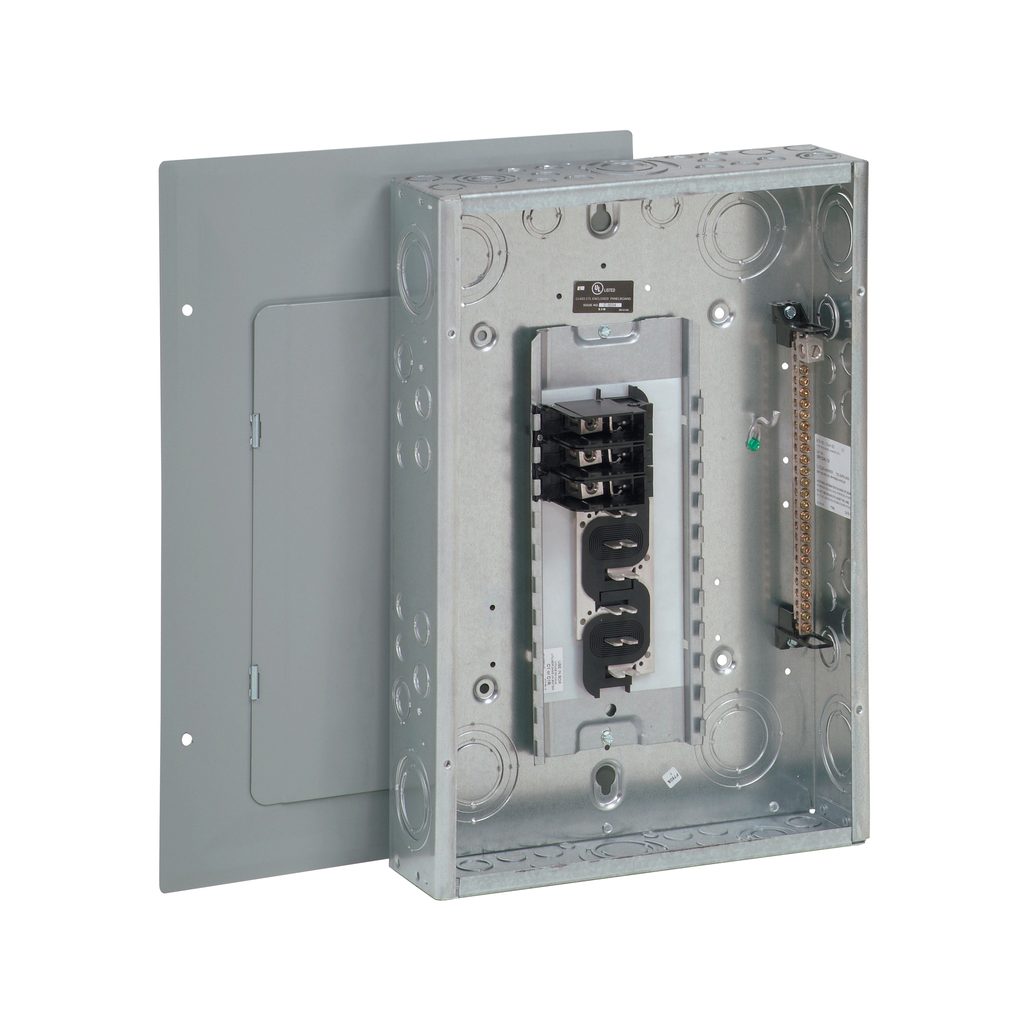

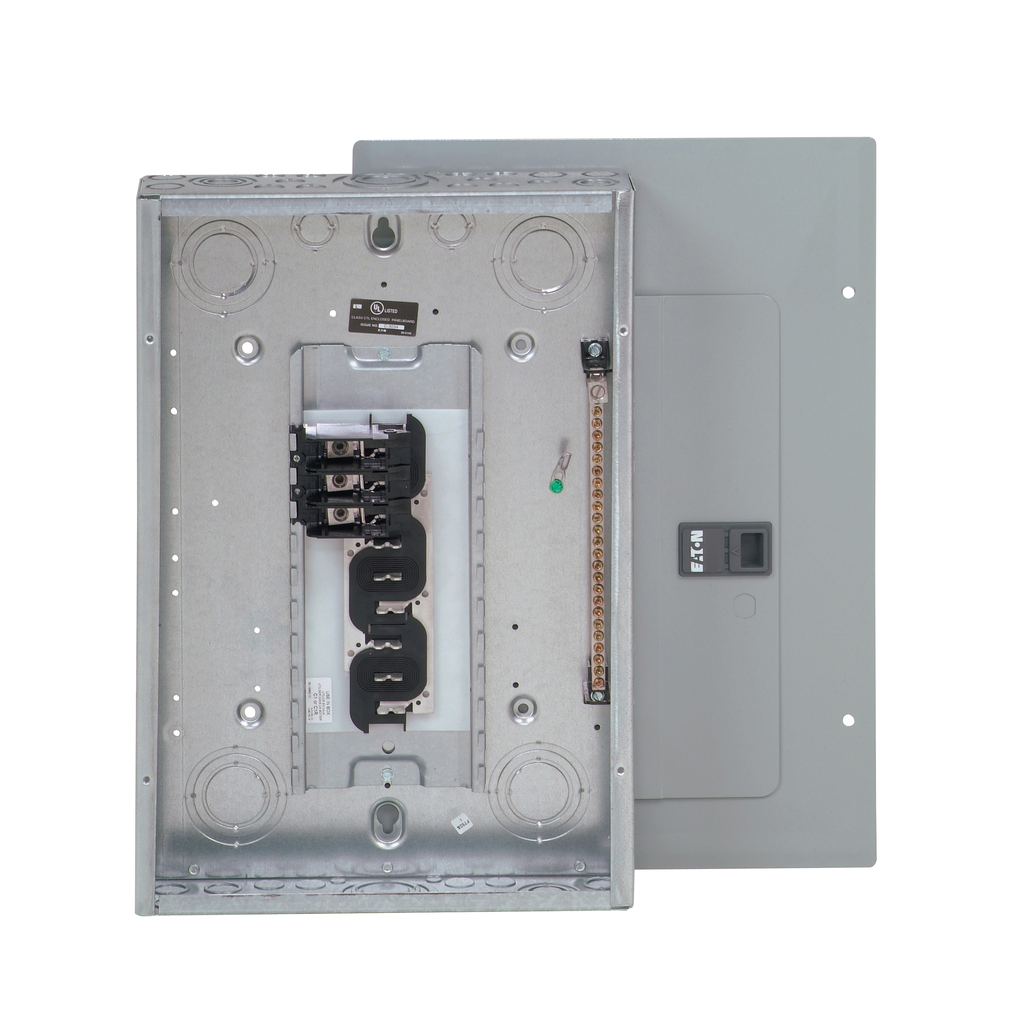

Cutler-Hammer 3BR1224L125 Loadcenter 24 Circuits 125A Three-Phase Aluminum Bus Metallic NEMA 1 Enclosure

Brand SKU 6140
Skip image gallery

This commercial loadcenter from Cutler-Hammer is designed with robust performance in mind, offering a reliable solution for managing electrical circuits. Equipped with a NEMA 1 enclosure and capable of accommodating up to 24 circuits, it supports three-phase setups with a notable amperage rating of 125A. The aluminum bus material contributes to its efficiency, while the configuration, featuring 12 spaces and suitability for Type BR 1-inch breakers, ensures an effective arrangement for both power distribution and connectivity. Additional features, such as the included cover and hold-down screw, underscore its practical design for use in commercial applications, making this loadcenter a dependable choice for maintaining electrical systems.

  • Suitable for three-phase commercial electrical systems
  • Supports up to 24 circuits with 12 spaces
  • 125A amperage rating for robust power handling
  • Aluminum bus material for efficient conductivity
  • Metallic NEMA 1 enclosure suitable for indoor use
  • Compatible with Type BR 1-inch breakers
  • Includes cover for protected internal components
  • Combination mounting options for flexible setup
  • No feed-thru lugs for enhanced installation safety
  • Includes BREQS125 hold-down screw for secure breaker retention
  • Amperage Rating: 125A
  • Voltage Rating: 208Y/120, 240V
  • Interrupt Rating: 10 kAIC
  • Phase: Three-phase
  • Number Of Circuits: 24
  • Number Of Spaces: 12
  • Number Of Wires: Four-wire
  • Length: 3.88 in
  • Width: 14.31 in
  • Height: 21 in
  • Mounting: Combination
  • Type: Main lug
  • Main Circuit Breaker: BR
  • Wire Size: #6-2/0 AWG Cu/Al
  • Bus Material: Aluminum
  • Enclosure Material: Metallic
  • Enclosure: NEMA 1
  • Cover: Included
  • Used With: Type BR 1-inch breakers
  • Special Features: No feed-thru lugs, includes BREQS125 hold-down screw
  • Notes: Suitable for use as service equipment with up to 6 main disconnects or not as lighting & appliance panelboard; has notch for brhdk125 hold-down kit
