Cutler-Hammer 10250H671 Control Station 30.5 mm Heavy-Duty 2 Elements Flush Lock Hasp Black Die Cast NEMA 3 3R 4 4X 13 Surface Mount

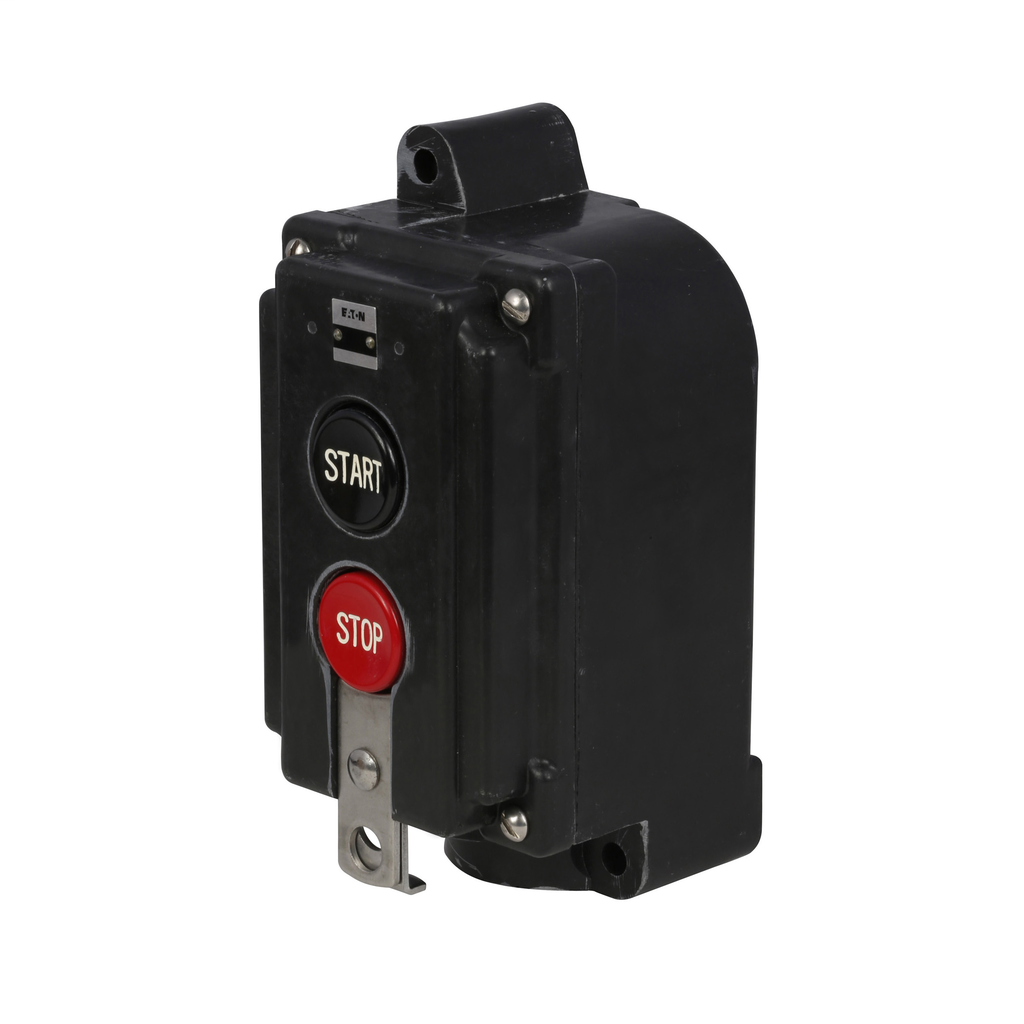

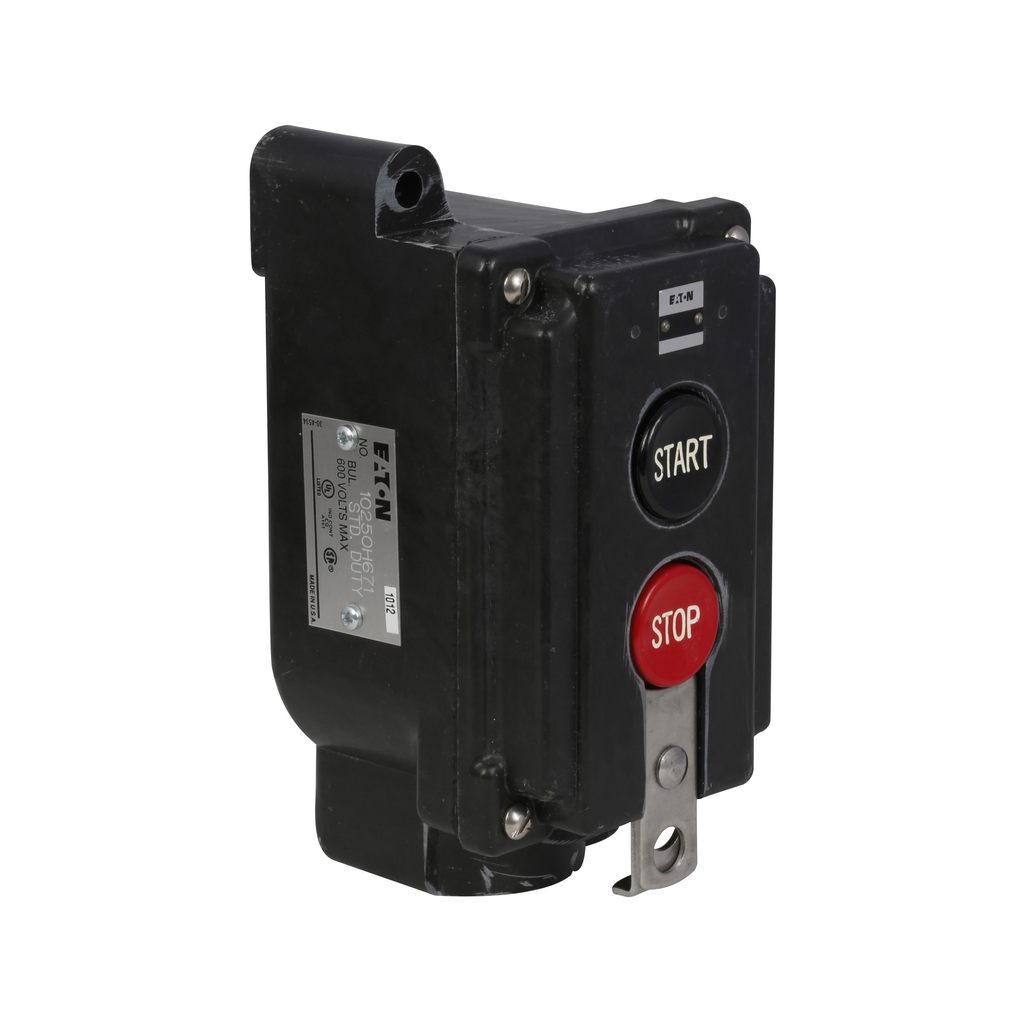

The 30.5 mm Heavy-Duty Assembled Control Station from Cutler-Hammer provides robust functionality and durability for various industrial applications. Featuring a die-cast enclosure rated NEMA 3, 3R, 4, 4X, and 13, it ensures protection in demanding environments while its surface mount design makes installation straightforward. This control station includes two elements with a clear START/STOP legend for intuitive operation, complemented by a flush actuator with a lock hasp in a sleek black finish. With an emphasis on precision and reliability, it is a vital component for any control system requiring consistent performance in challenging conditions.
- UL 505 and CSA certified for safety compliance
- NEMA 3, 3R, 4, 4X, and 13 ratings for protection against dust, water, and corrosion
- Flush actuator with lock hasp for secure operation
- Heavy-duty 30.5 mm design for industrial use
- Die-cast enclosure for robust durability
- Two elements to enable dual functionality
- Distinct START/STOP legend for intuitive control
- PresTest illumination for enhanced visibility
- Surface mount design for easy installation
- Black actuator color for sleek appearance
- Type: 30.5 mm, Heavy-Duty
- Actuator: Flush with lock hasp
- Actuator Color: Black
- Mounting: Surface
- Number Of Elements: 2
- Legend: START/STOP
- Illumination: PresTest
- Enclosure: NEMA 3, 3R, 4, 4X, 13
- NEMA Rating: NEMA 3, 3R, 4, 12, 13
- Enclosure Material: Die cast
- Height: 4.4 in
- Width: 4.6 in
- Length: 7.7 in
- Weight: 1.8 lb
- Series: 10250H
