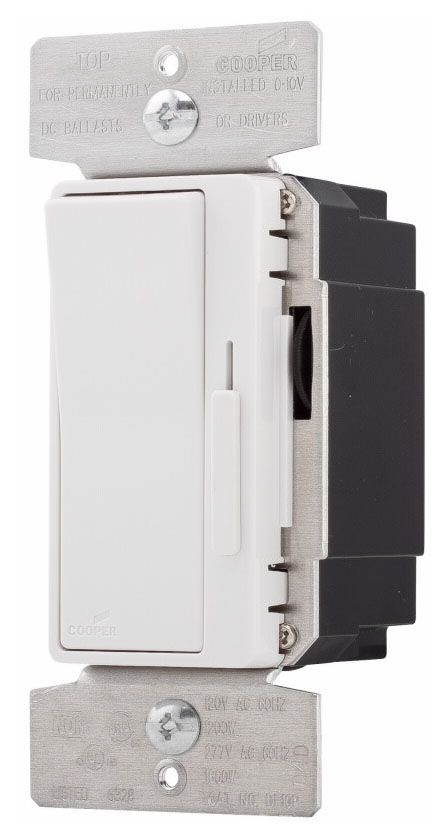

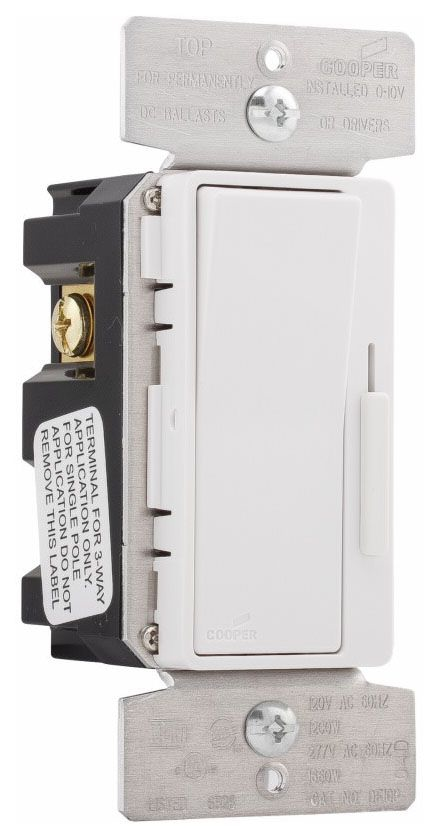

Cooper Wiring Devices DF10P-C1 Wall Dimmer Slide Switch with Preset 120/277V 1200/1600W Dimmable LED Fluorescent Gloss Almond White Ivory Polycarbonate

The DF10P-C1 Slide Dimmer from Cooper Wiring Devices combines functionality and aesthetics, offering users an enhanced lighting experience for both commercial and residential spaces. Its soft-on/fade-off feature not only creates a warm ambiance but also extends the life of your lamps. With a preset option that allows for easy return to previously set light levels, this dimmer caters to all lighting preferences. Designed for versatility, it is compatible with a variety of dimmable lighting loads, ensuring optimal performance across different setups. Built with a user-friendly interface, the dimmer includes a seven-step green LED display that shows the selected light level clearly, complemented by an amber LED indicator for on/off load status. The adjustable high and low trim settings provide additional energy savings and ensure compatibility with various lamp types. Safety is prioritized with its air-gap switch, which disconnects power to the load, and it's compliant with Title 24 standards. With a stylish removable faceplate available in multiple finishes, this dimmer integrates seamlessly into any décor while enabling multi-location control through master and accessory units.

• Air-gap switch disconnects power for enhanced safety
• Soft-on/fade-off feature extends lamp life and enhances ambiance
• Preset feature allows return to previous light setting
• Compatible with dimmable LED and fluorescent lighting loads
• Seven-step green LED display shows selected light level
• Amber LED indicates on/off load status
• Adjustable high and low trim settings optimize energy savings and lamp compatibility
• Multi-location control with master and accessory units
• Removable decorator-style faceplate in multiple finishes
• Programmable rapid start ensures lamp startup at low dim levels

• Load Rating: 1200/1600 Watt
• Voltage: 120/277 Volt AC 60 Hz
• Load Type: Dimmable LED, Fluorescent 0 to 10 Volt Ballast
• Type: Wall Dimmer
• Operator Type: Slide Switch with Preset
• Operation Type: 1-Pole, 3-Way
• Size: 1.8 in Width x 1.29 in Depth x 4.2 in Height
• Wall Plate Type: Decorator
• Finish: Gloss Almond/White/Ivory
• Material: Polycarbonate
• Temperature Range: -4 to 158 °F
• Flammability Rating: UL 94-V2
• Compliance: cULus Listed, UL 1472, NOM 426, Title 24 Compliant
• Series/Model: DF10P
• Application: Commercial, Residential
• Weight: 0.283 lb
• Environmental Condition: Indoor
• Wiring Method: Back and side
• Allowable Wire Size: #14-12 AWG
