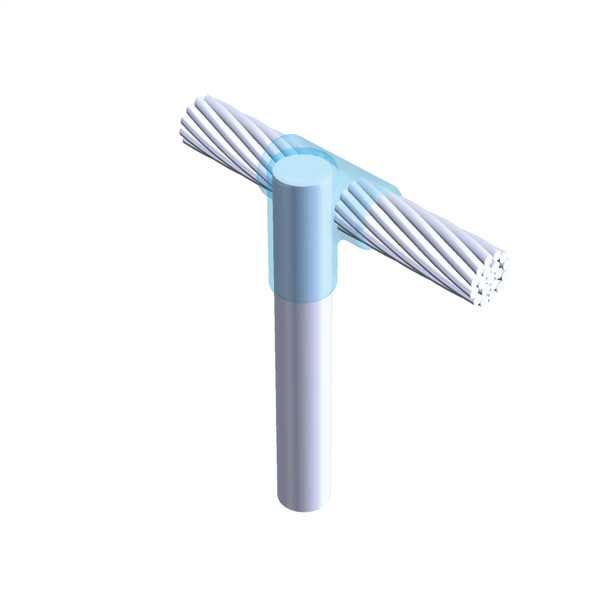

Cadweld GTC182Q Ground Rod Connection 0.682 in Diameter 4/0 Concentric Copper-Bonded Copper-Bonded
This Cable to Ground Rod connection solution from Cadweld is designed to ensure a reliable and effective bond between conductors and grounding rods. Constructed for ease of use, it accommodates a ground rod diameter of 0.682 inches and is compatible with 4/0 concentric conductors. The robust copper-bonded ground rod enhances performance and durability, making it suitable for demanding electrical applications. With certifications from cULus, this product meets necessary safety and quality standards, providing users with peace of mind while working on their grounding solutions.
- Certified cULus for safety and quality assurance
- Reliable bond between conductor and ground rod
- Compatible with 0.682 in diameter copper-bonded ground rods
- Designed for 4/0 concentric conductors
- Copper-bonded ground rod enhances conductivity and corrosion resistance
- Suitable for demanding electrical grounding applications
- Ground Rod Diameter: 0.682 in. actual, 3/4 in. nominal
- Conductor Size: 4/0 Concentric
- Ground Rod Type: Copper-bonded
- Certifications: cULus
- Handle Clamp: L160, sold separately
- Welding Material: 115 or 115PLUSF20, sold separately
- Kit: No
- Split Crucible: No
- Mold Only: No
- Wear Plates: No
- Mold Family: GT
- Part Number: GTC182Q
- UPC: 78285653701
