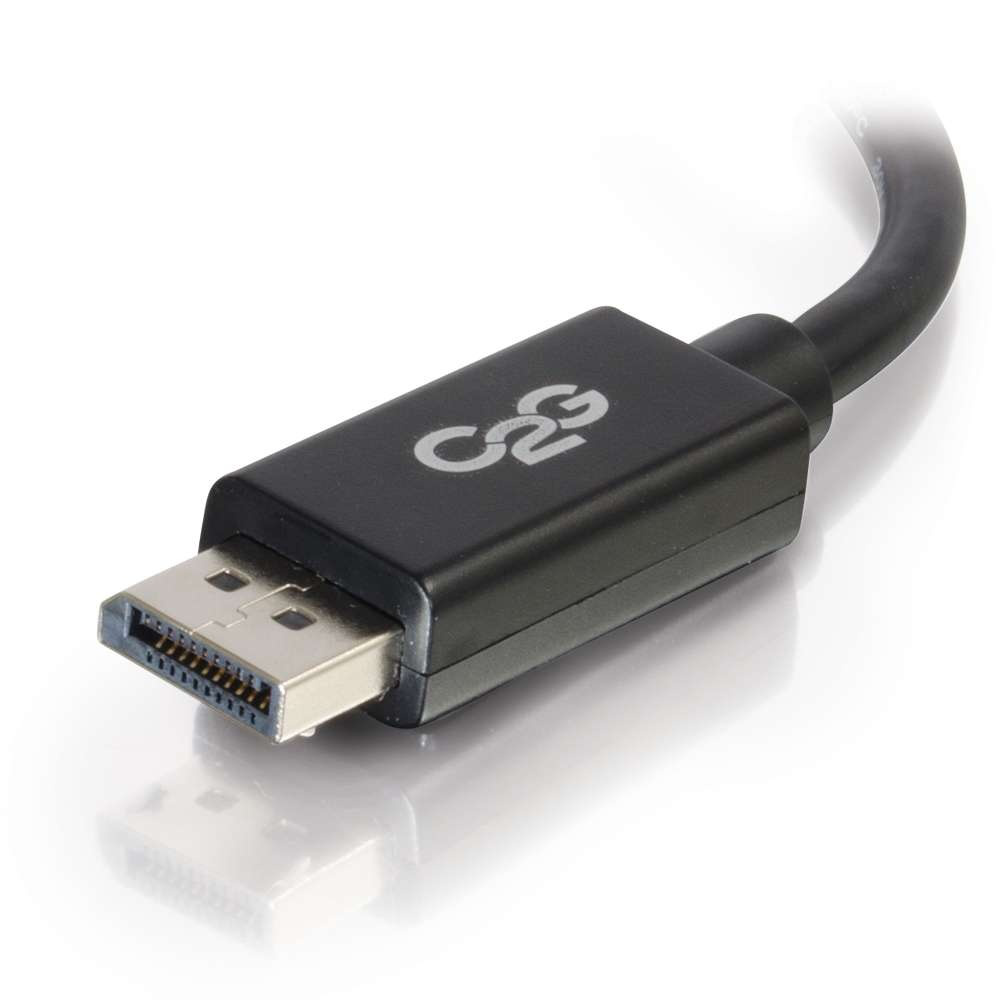

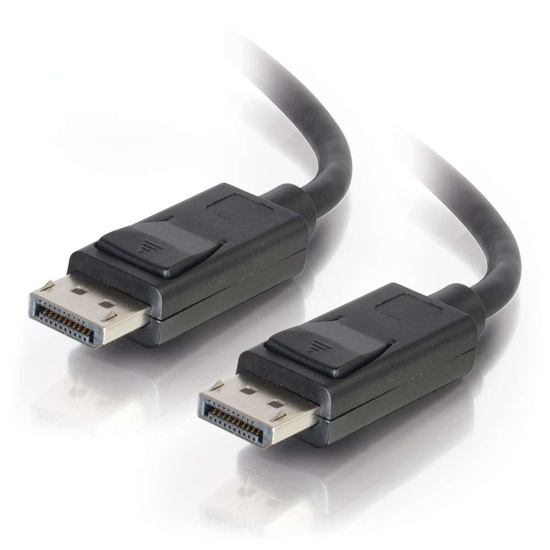

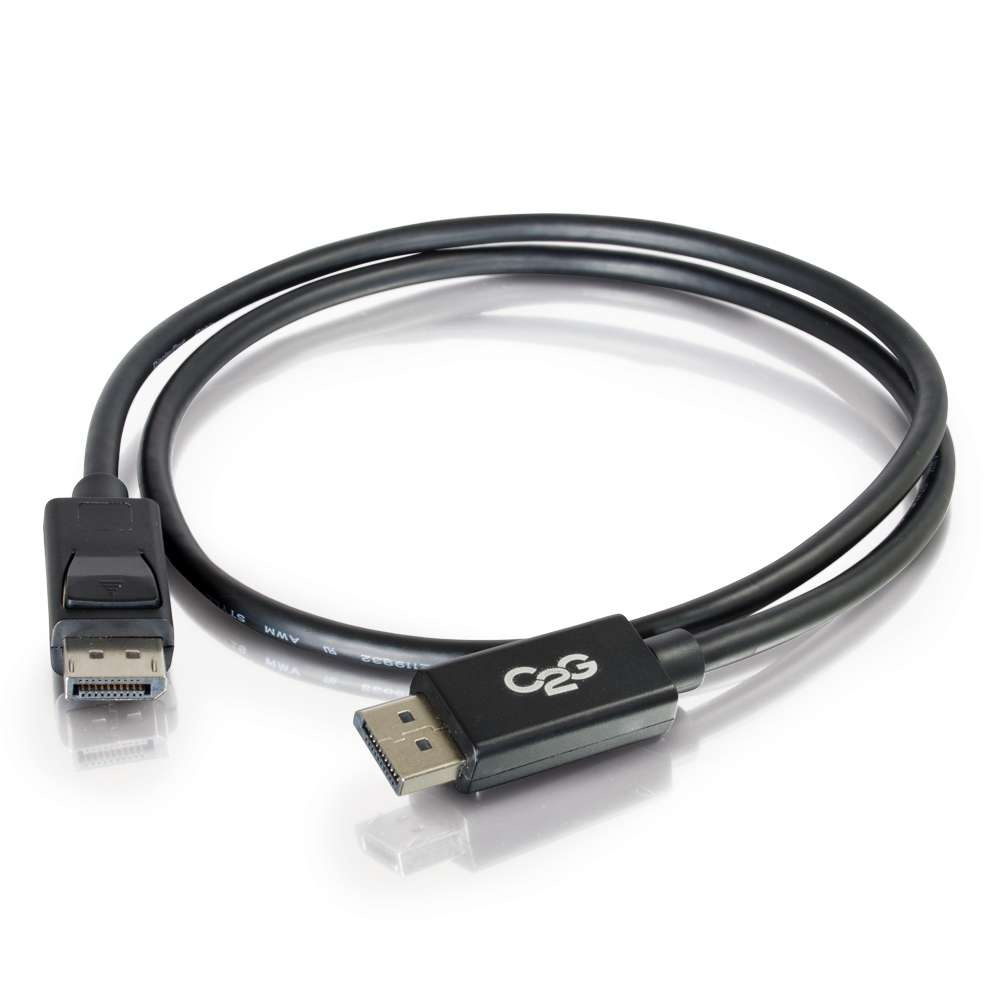

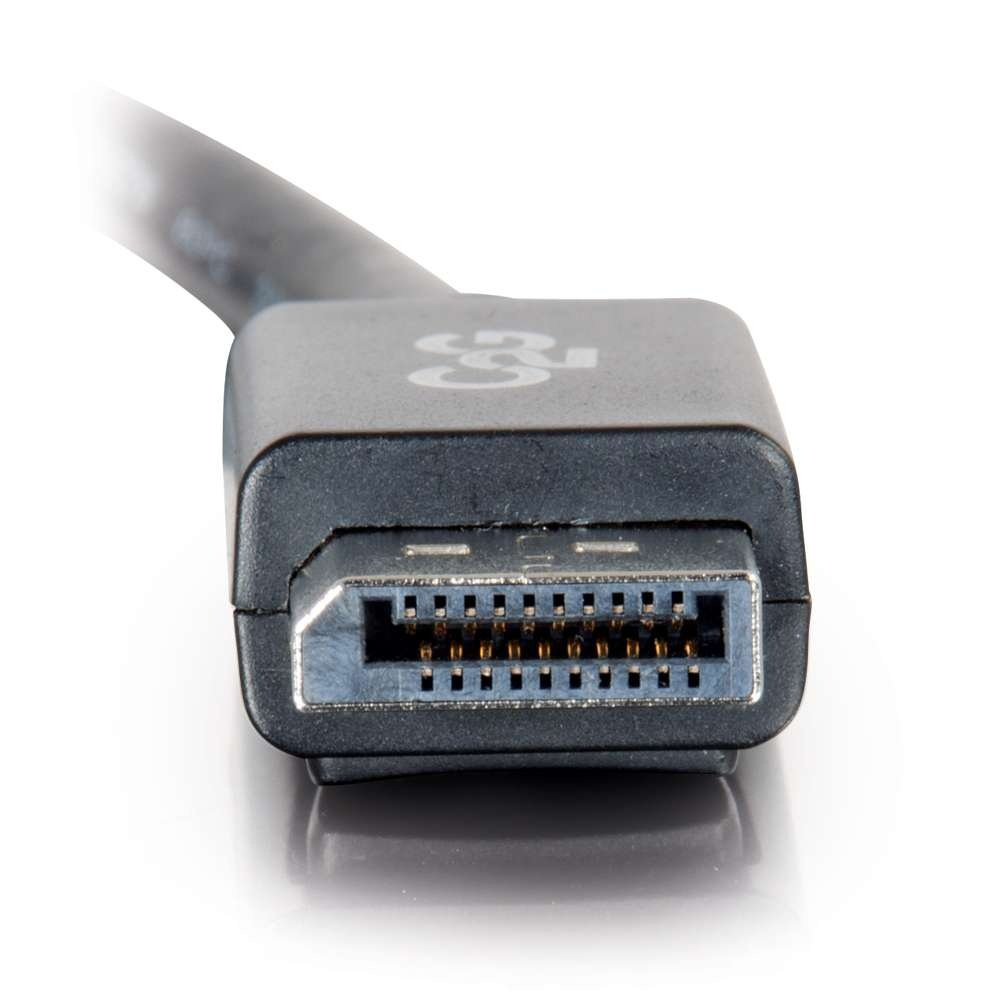

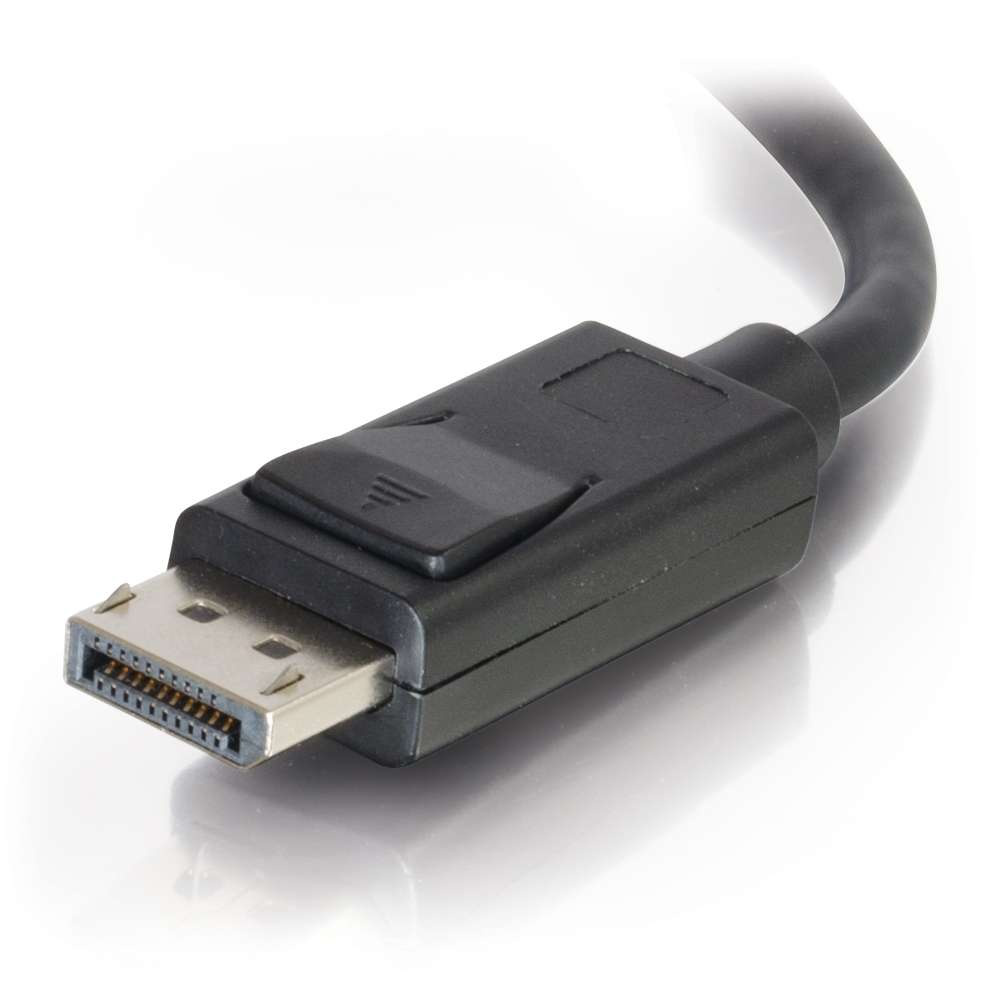

C2G 54401 DisplayPort Cable 6 ft 10.8 Gbps 8K UHD Black PVC
Specifications
Documents
Cutsheet
Elevate your visual experience with this 6ft DisplayPort cable designed by C2G, which delivers exceptional audio and video performance. Capable of supporting resolutions up to an impressive 8K UHD (7680 x 4320), this cable ensures that your high-definition content is transmitted with clarity and precision. The direct connection between DisplayPort output and input is made seamless, providing a data transfer rate of 10.8 Gbps and accommodating a variety of resolutions, including 4K and 1080p. Constructed with durability in mind, the cable features latches for secure connections, making it suitable for both residential and commercial applications. Wrapped in a robust PVC jacket, this black cable meets essential quality standards and is ready to enhance your setup for gaming, streaming, or professional presentations.
- Directly connect DisplayPort output to input
- Supports high bit rate bandwidth and 8K UHD resolution
- 10.8 Gbps data transfer rate for smooth audio/video transmission
- Latches on connectors provide secure, reliable connections
- Gold flash plated contacts enhance signal quality and corrosion resistance
- Nickel-plated connector shells for enhanced durability
- Durable PVC jacket for physical protection and longevity
- Flexible 32 AWG wire gauge for efficient signal conduction
- Low time delay of 5.2 ns per meter for minimal signal latency
- Complies with CE and RoHS 2 safety and environmental standards
- Data Transfer Rate: 10.8 Gbps
- Voltage: 30 V
- Video Resolution: 8K, 4K 60Hz, 4K 30Hz, 4K, 1080p
- Length: 6 ft (1.8 m)
- Bend Radius: 73 mm
- Wire Gauge: 32 AWG
- Jacket Material: PVC (Polyvinyl Chloride) 0.51 mm Min AVG
- Cable Type: Video
- Color: Black
- Country of Origin: Vietnam
- Connector Type: DisplayPort 20P male with latches
- Conductor Resistance: 28AWG: 237.25 Ω/km, 30AWG: 376.96 Ω/km, 32AWG: 588.85 Ω/km
- Insulation Resistance: 10MΩ/km at 20°C DC 500V
- Time Delay: 5.2 ns/m max
- Tensile Strength: Unaged: 1500 PSI min, Aged: 70%
- Elongation: Unaged: 100% min, Aged: 65%
- Contact Finish: Gold Flash Plated
- Housing Material: Black LCP
- Shell Material: Nickel Plated
- Compliance: CE Marked, RoHS 2
Cutsheet
CG-54401 CutsheetDownloads
DisplayPort™ Cable with Latches 8K UHD M/M - Black
