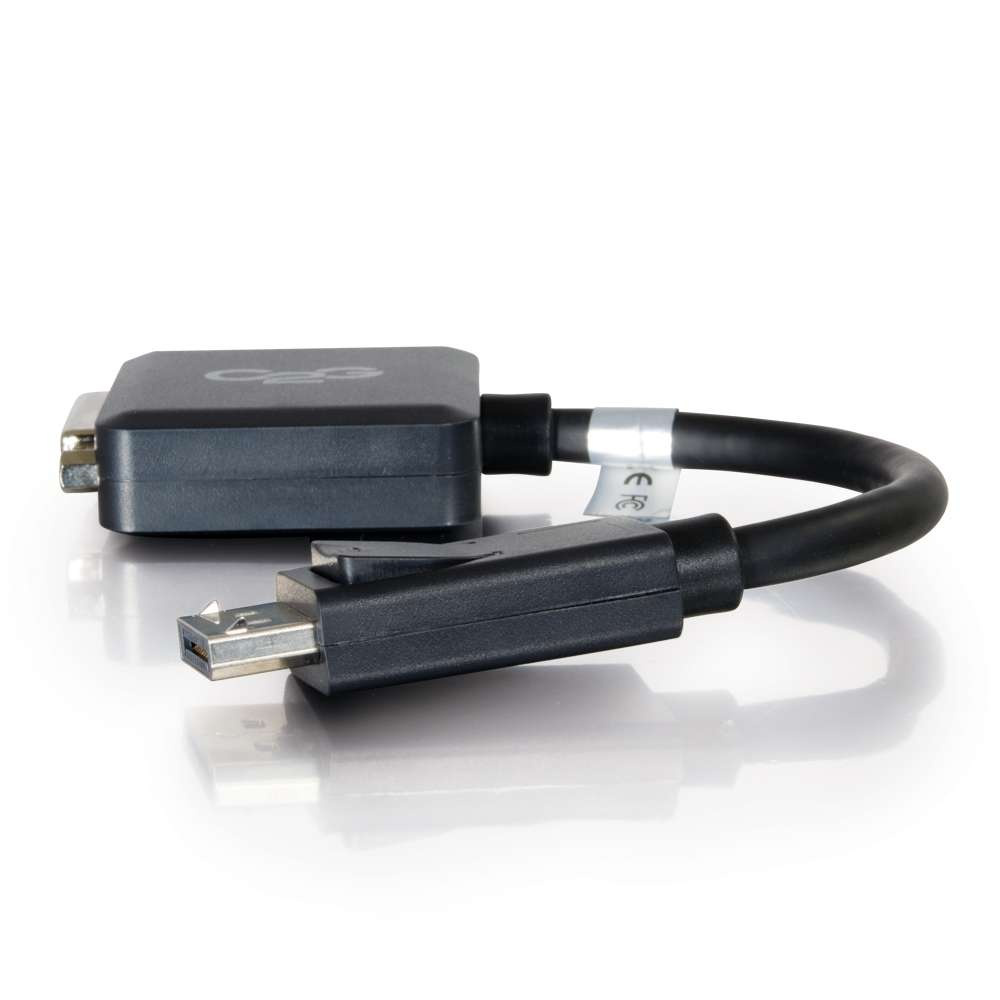

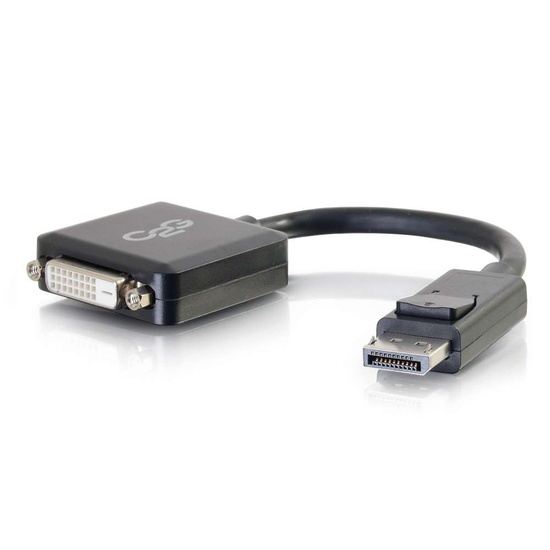

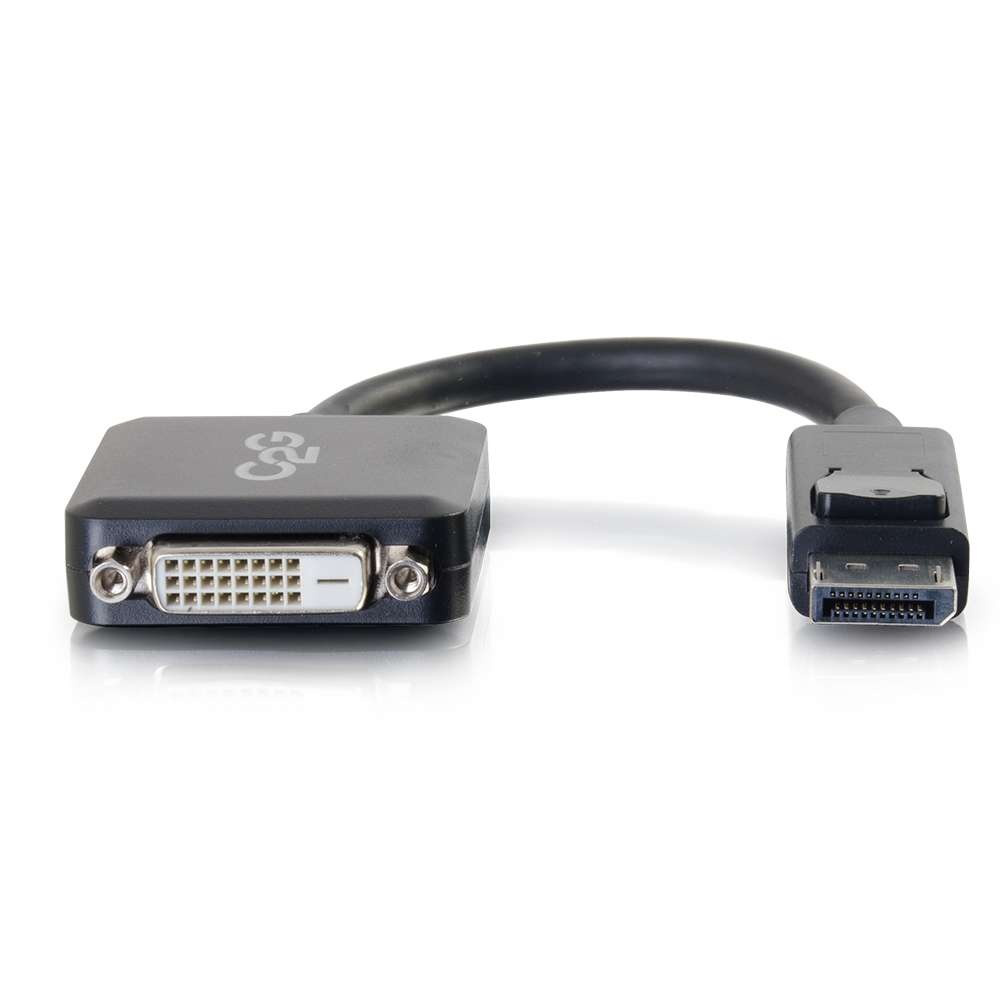

C2G 54321 DisplayPort to Single-Link DVI-D Adapter 18 Gbps 0.67 ft Black PVC
Specifications
Application Sector
Commercial, Residential
Color
Black
Voltage
30 V AC
Documents
Downloads
Cutsheet
This adapter is a practical solution for connecting your DisplayPort devices to legacy Single-Link DVI-D displays, allowing you to leverage existing equipment without the need for costly upgrades. The plug-and-play design ensures an effortless installation process without additional software or drivers, making it convenient for both residential and commercial applications. With support for resolutions up to 1920 x 1200, you can enjoy high-definition content while the dongle-style configuration minimizes strain on the ports, enhancing durability over time. Whether for everyday use or specialized setups, this adapter delivers reliable performance with a data transfer rate of 18 Gbps, ensuring a smooth video experience.
- Supports resolutions up to 1920 x 1200 for high-definition content
- Plug-and-play design with no software or driver needed
- Dongle style adapter reduces strain, prolonging port life
- High data transfer rate of 18 Gbps for smooth video performance
- Connects DisplayPort devices to legacy Single-Link DVI-D displays
- PVC jacket provides insulation and protection
- 100% coverage AL-Mylar shielding reduces electromagnetic interference
- Compliant with CE standards for safety assurance
- Suitable for residential and commercial applications
- Voltage: 30 V
- Data Transfer Rate: 18 Gbps
- Video Resolution: WUXGA (1920x1200), 1080p
- Bend Radius: 29.4 mm
- Length: 0.67 ft (8 in)
- Wire Gauge: 30 AWG
- Type: Adapter, Converter
- Color: Black
- Jacket Material: PVC (Polyvinyl Chloride)
- Jacket Rating: Standard / Non-Rated
- Shield: AL-Mylar Wrap, 100% coverage
- Overall Cable Drain: 2: 30AWG (7/0.1 BC)
- Conductor: 30 AWG (7/0.1 TC)
- Insulation: FM-PE, ID 0.8±0.05 mm (2 conductor), HD-PE, ID 0.56±0.05 mm (5 conductor)
- Overall Cable Outer Diameter: 6.5±0.2 mm
- CE: Yes
- Application Sector: Residential, Commercial
- Country of Origin: China
