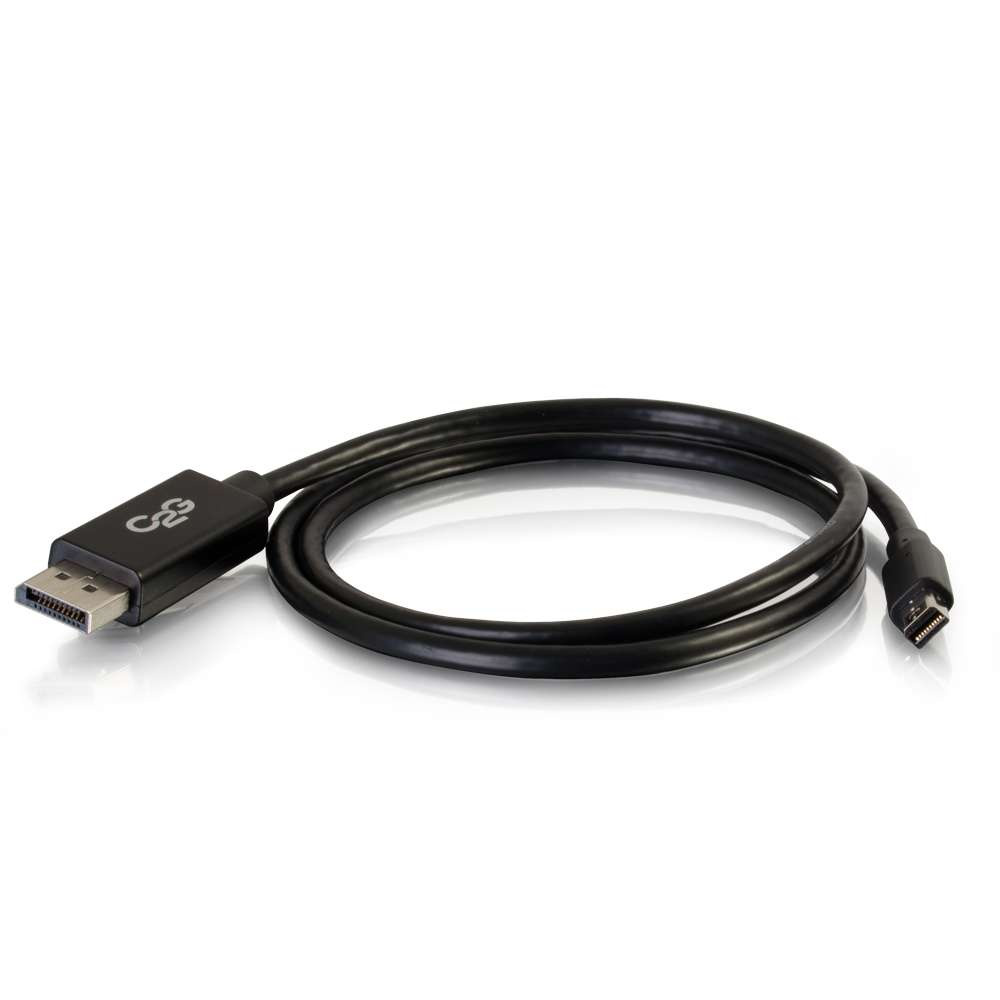

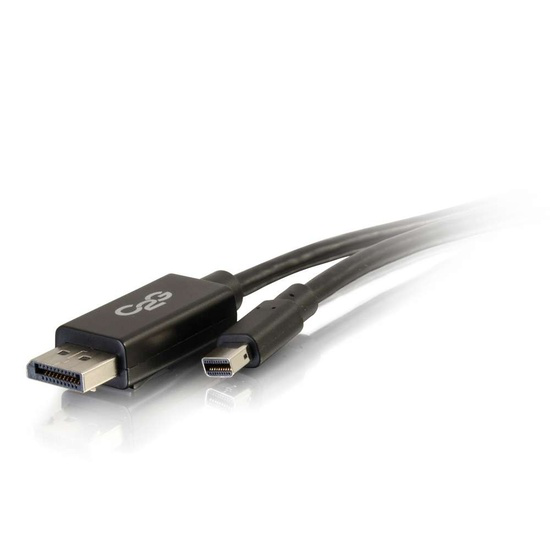

C2G 54301 Mini DisplayPort to DisplayPort Adapter 6 ft 4K 30Hz Black PVC
Specifications
Documents
Cutsheet
Experience seamless connectivity with this 6ft Mini DisplayPort to DisplayPort adapter cable, designed to meet DisplayPort 1.2 standards. Specifically engineered to support resolutions up to 4K at 30Hz, it effortlessly transmits digital audio and video signals between devices, making it an ideal choice for users of the Microsoft® Surface® Pro 6, Surface Laptop 2, and various other leading laptops. Crafted with a durable PVC jacket, this cable is built for both residential and commercial applications, offering reliable performance wherever you need it. Whether you’re connecting to a monitor for a stunning visual experience or linking your laptop to a projector, this adapter cable ensures high-quality transmission without compromising on clarity.
- Built to DisplayPort 1.2 standards
- Supports resolutions up to 4K (4096 x 2160) at 30Hz
- Carries digital audio and video signals
- Compatible with Microsoft® Surface® Pro 6, Surface Laptop 2, and other laptops

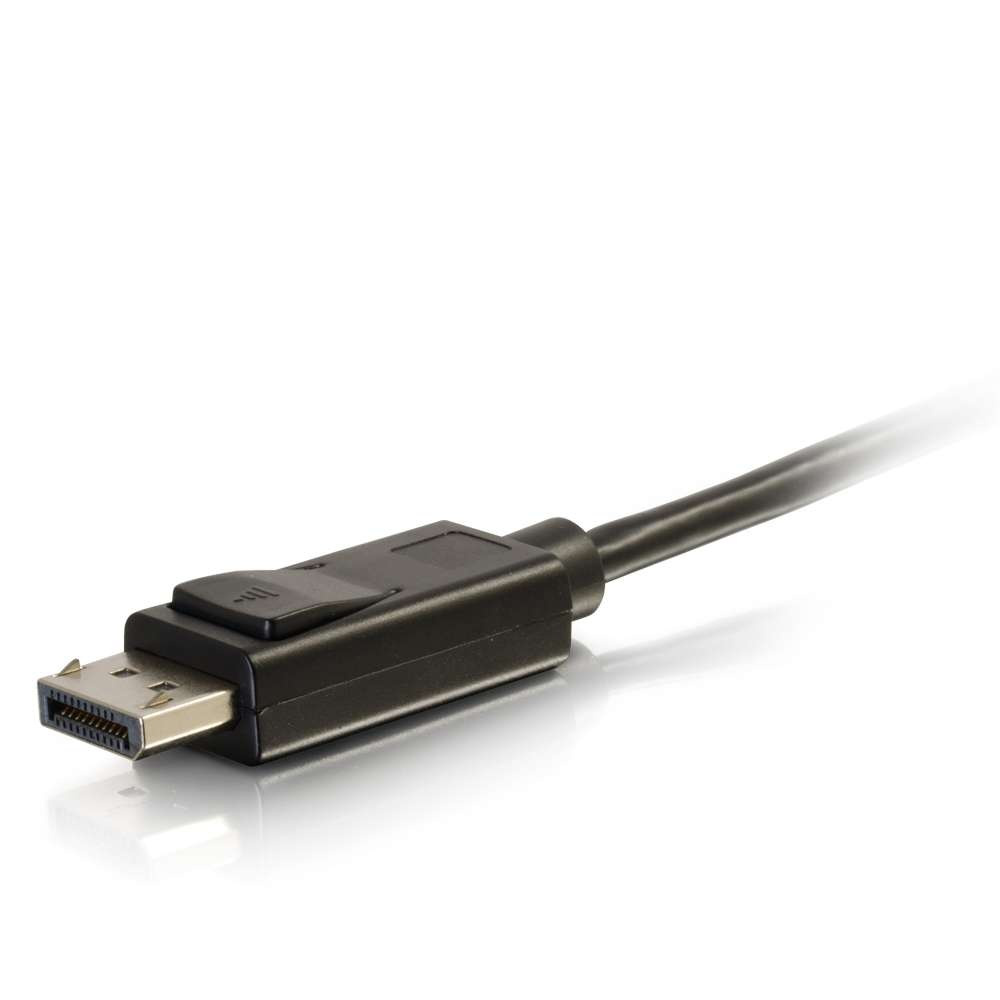

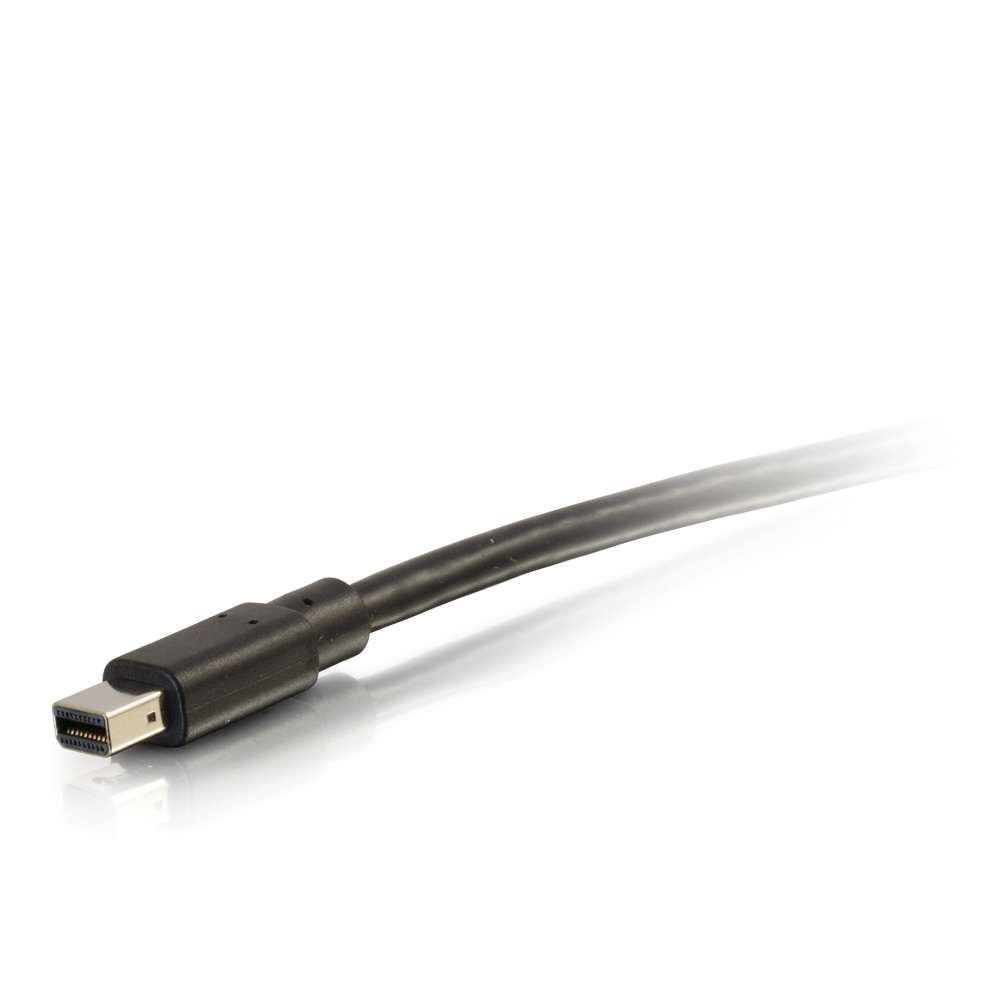

- Directly connects Mini DisplayPort output to DisplayPort input
- Durable PVC jacket for residential and commercial use
- Shielded with aluminum foil wrap and 85% braided coverage to reduce interference
- 6 ft length for flexible device placement
- Minimum 52 mm bend radius enhances cable longevity
- 32 AWG wire gauge ensures reliable signal integrity
- Voltage Rating: 30V
- Video Resolution: 4K 30Hz, 1080p
- Cable Length: 6 ft (1.8 m)
- Bend Radius: 52 mm
- Wire Gauge: 32 AWG (7/0.08 TC)
- Outer Diameter: 5.2 7 0.15 mm
- Jacket Material: PVC (Polyvinyl Chloride)
- Jacket Rating: Standard / Non-Rated
- Shield: AL-Foil Wrap, Braid 85% Min Coverage
- Insulation: FM-PE, ID 0.6270.05 mm
- Color: Black
- Type: Cable, Adapter
- Application Sector: Residential, Commercial
- Country of Origin: Vietnam
- Cable Type: Video, Adapter
- Compliance: DisplayPort 1.2
