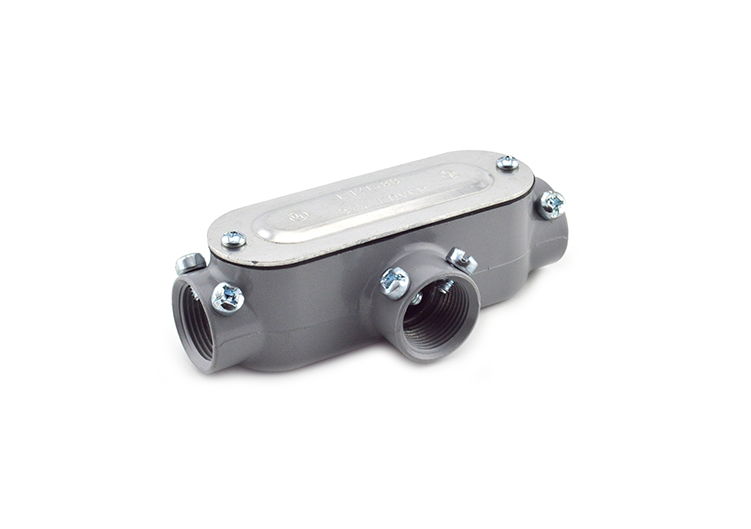

Bridgeport Fittings T-42CGC Type T Combination Conduit Body 3/4 in Aluminum Gray
Engineered with versatility and reliability in mind, this Type T Combination Conduit Body features a robust aluminum construction that is copper-free, reducing overall system weight while ensuring excellent performance for your wiring needs. Designed for efficient cable management through 90-degree pulls, it boasts outlets on both sides, accommodating various conductors in both rigid and intermediate metal conduit as well as electrical metallic tubing applications. A durable enamel paint finish enhances its protective qualities, while the included neoprene gasket and aluminum cover provide an added layer of defense against dust and moisture, earning it a raintight rating when used with rigid conduit. This conduit body not only simplifies routine maintenance—with easy access to the interior of your conduit system—but also adheres to UL-514A standards, making it a reliable choice for any electrical installation.
- Meets UL-514A electrical safety standards
- Neoprene gasket and aluminum cover protect against dust and moisture
- Raintight rating when used with rigid conduit
- Copper-free aluminum construction reduces system weight
- Designed for 90-degree cable pulls with outlets on both sides
- Compatible with rigid, intermediate metal conduit, and electrical metallic tubing
- Enamel paint finish enhances corrosion resistance
- Easy access to conduit interior for pulling, inspection, and maintenance
- Combination of set screws and NPT threads allows flexible installation
Specifications
- COLOR: Gray
- MATERIAL: Aluminum
- NPD Date Electrical: 2008-07-03T00:00:00.000Z
- Aluminum Body: Copper-free aluminum conduit bodies reduce the weight of your wiring system while also providing a reliable, cost-effective solution
- Depth: 1.53 in
- Division: Electrical H1
- UL File #: E11077
- Weight: 45.5 lbs
- Collection Folder: T-42CGC
- Length: 5.4 in
- Country of Origin: India
- Width: 2.25 in
- Gasket and Cover: A neoprene gasket and aluminum cover protects your system from dust and water. This conduit body is also listed raintight when used with rigid conduit
- Greater Flexibility: The combination of set screws and NPT threads allows for rigid and intermediate metal conduit as well as electrical metallic tubing applications
- FINISH: Enamel paint
- BPT Trade Size: 3/4"
- Easy Access: Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance
- Field Application: Type T Combination EMT/Rigid Conduit Body with Cover and Gasket
- Type T: Type T conduit bodies are designed for 90 degree cable pulls, with outlets on both the left and right side of the body
- Sub-Division: Electrical-E H2
