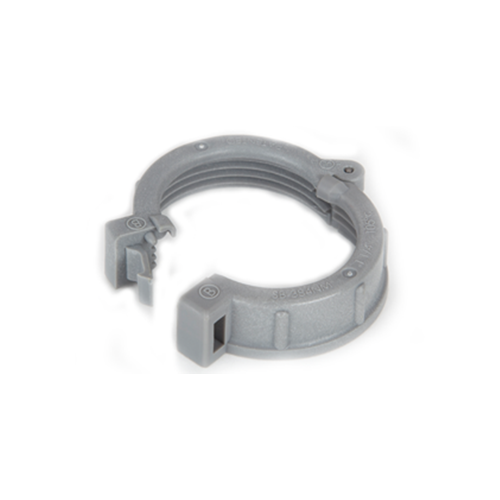

Bridgeport Fittings SB-384NM Insulated Split Bushing 1-1/4 in Nylon Gray 105°C UL-514B
Crafted from robust gray nylon plastic, this insulated split bushing is designed to provide superior abrasion and wear resistance while ensuring the protection of conductors passing through threaded Rigid/IMC conduit or EMT and Rigid Connectors. With a temperature rating of 105°C, it is suitable for demanding industrial environments and meets the standards established by UL-514B and cULus, assuring compliance with recognized electrical safety norms. The unique Might-Rite patented design not only facilitates easy positioning but also helps save time on installation, making it an efficient tool for any electrical project. Whether you're upgrading existing installations or designing new configurations, this bushing offers a reliable solution for conductor protection and enhanced electrical integrity.
- UL-514B and cULus compliance ensures recognized electrical safety
- Insulated split design protects conductors from damage
- Abrasion and wear resistant gray nylon construction
- Rated to 105°C for high-temperature industrial use
- Suitable for threaded Rigid/IMC conduit or EMT connectors
- Might-Rite patented design allows easy positioning
- Saves installation time with tool-free placement
- Enhances electrical integrity by protecting conductor insulation
- Temperature Rating: 105 b0C
- Size: 1-1/4 in.
- Length: 1.93 in
- Diameter: 1.16 in
- Width: 1.36 in
- Depth: 0.57 in
- Weight: 0.458 lbs
- Material: Gray Nylon Plastic
- Finish: Plain
- Compliance: UL-514B, OSHA-recognized, NRTL-listed, cULus Listed, UL File #E9391
- NEMA Rating: FB-1
- Country of Origin: China
