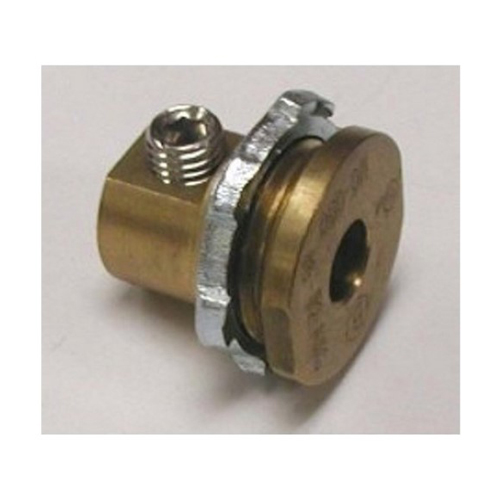

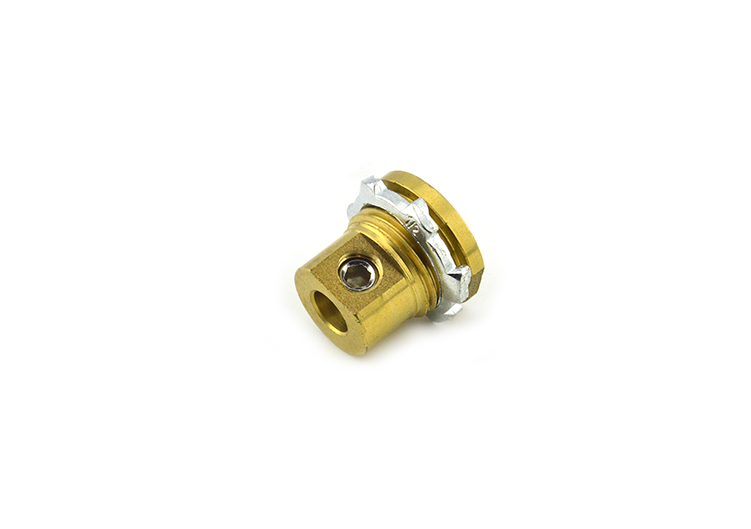

Bridgeport Fittings MC-050 Grounding Connector 1/2 in Brass UL-467 NEMA FB-1
Designed for effective grounding applications, these enclosure grounding connectors and couplings specifically cater to the requirements outlined by the National Electrical Code (NEC) Article 250.8. Constructed with a precision-machined brass body, they promise both durability and a professional installation appearance, making them a reliable choice for service entrance grounding. The tamper-resistant design features a zinc die cast locknut and stainless steel set screw — thoughtfully mounted inside the box to ensure lasting security and performance. Coupled with a low-profile flange that includes application guidelines for easy inspection by authorities, these connectors deliver both safety and compliance without compromising on ease of use. UL Listed under UL467, they accommodate a range of conductor sizes, making them adaptable for various applications in electrical connectivity.
- UL Listed under UL467 for safety assurance and code compliance
- Compliant with NEC Article 250.8 grounding requirements
- Tamper-resistant design with zinc die cast locknut and stainless steel set screw
- Precision-machined brass body for durability and professional appearance
- Low-profile flange with application guidelines for easy safety inspections
- Accommodates a range of conductor sizes for versatile grounding applications
- Designed for reliable service entrance grounding
- Size: 1/2 in
- Material: Brass, Zinc Die Cast, Stainless Steel
- Weight: 3.125 lbs
- Length: 0.94 in
- Width: 0.38 in
- Depth: 0.12 in
- Finish: Plain
- NEMA Rating: FB-1
- UL File Number: E20412
- Compliance: UL-467
- Country of Origin: China
