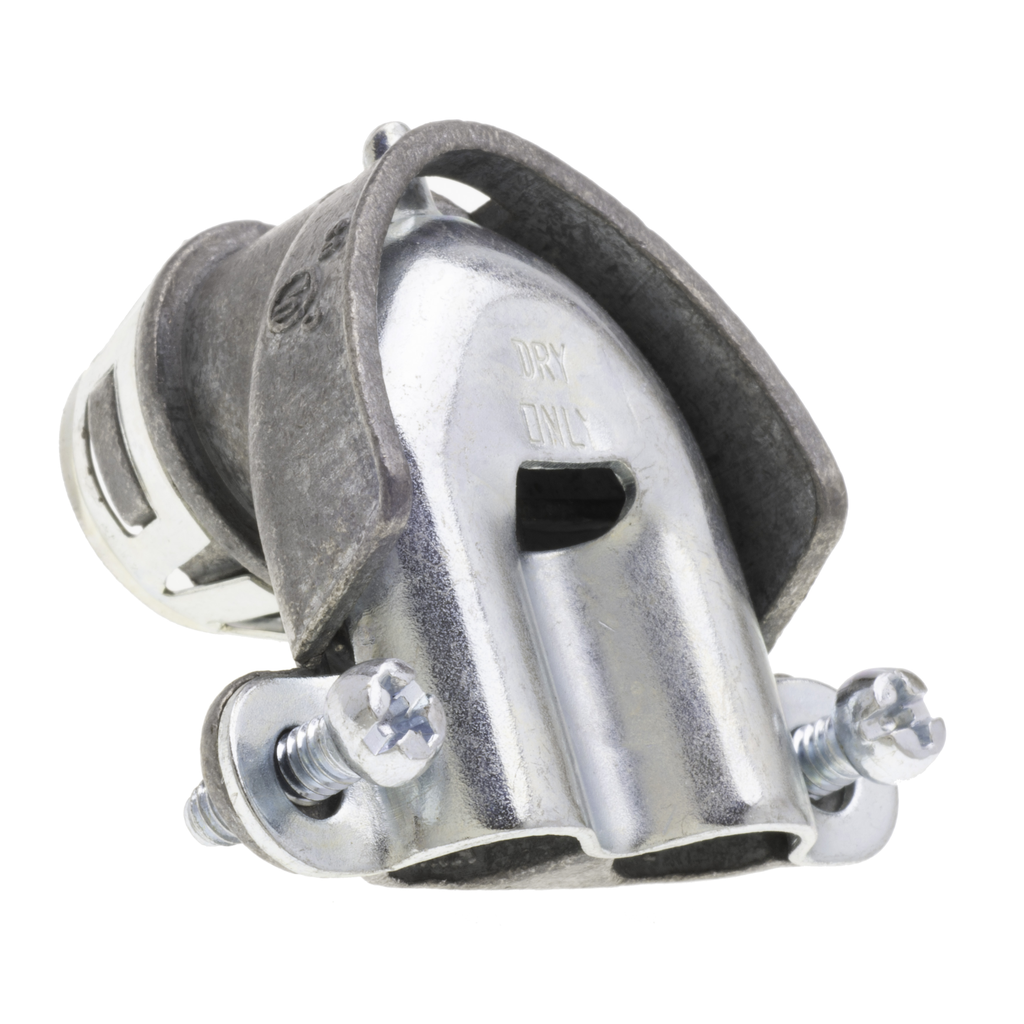

Bridgeport Fittings 84690SP AC/MC Connector 3/8 in Duplex 90 Degree Zinc Die Cast Ball Burnished
This Duplex 90 Degree AC/MC Connector from Bridgeport Fittings is expertly crafted from corrosion-resistant zinc die cast, ensuring both durability and a precise fit for reliable performance in electrical applications. Its innovative duplex design accommodates two cables in a single knockout, streamlining installations and reducing hardware costs, which ultimately saves time and labor during projects. Engineered for versatility, it effectively connects cable or conduit at right angles, keeping your installations neat and efficient. The connector’s snap-in front featuring dual locking tabs allows for rapid and secure connections, making it a practical choice for any professional looking to enhance their workflow. With a smooth, ball-burnished finish and compliance with UL-514B standards, this product combines functionality with a professional aesthetic, suitable for both steel and aluminum armored cables as well as flexible metal conduits.
- UL-514B compliant for safety and reliability
- Corrosion-resistant zinc die cast construction
- Duplex design accommodates two cables in one knockout
- 90 degree angle connection for neat cable routing
- Snap-in front with dual locking tabs for rapid, secure connections
- Compatible with steel and aluminum armored cables and flexible metal conduits
- Ball-burnished finish for professional appearance
- NEMA FB1 rating for environmental protection
- Reduces hardware costs and labor time through efficient design
- Cable Compatibility: 14/4 to 10/3 AWG (0.44 to 0.61 in)
- Conduit Size: 3/8 in
- Angle: 90 Degree
- Material: Zinc Die Cast
- Length: 2 in
- Width: 1.5 in
- Depth: 0.96875 in
- Weight: 13.15 lbs
- NEMA Rating: FB1
- UL File #: E20534
- Compliance: UL-514B
- Country of Origin: United States
