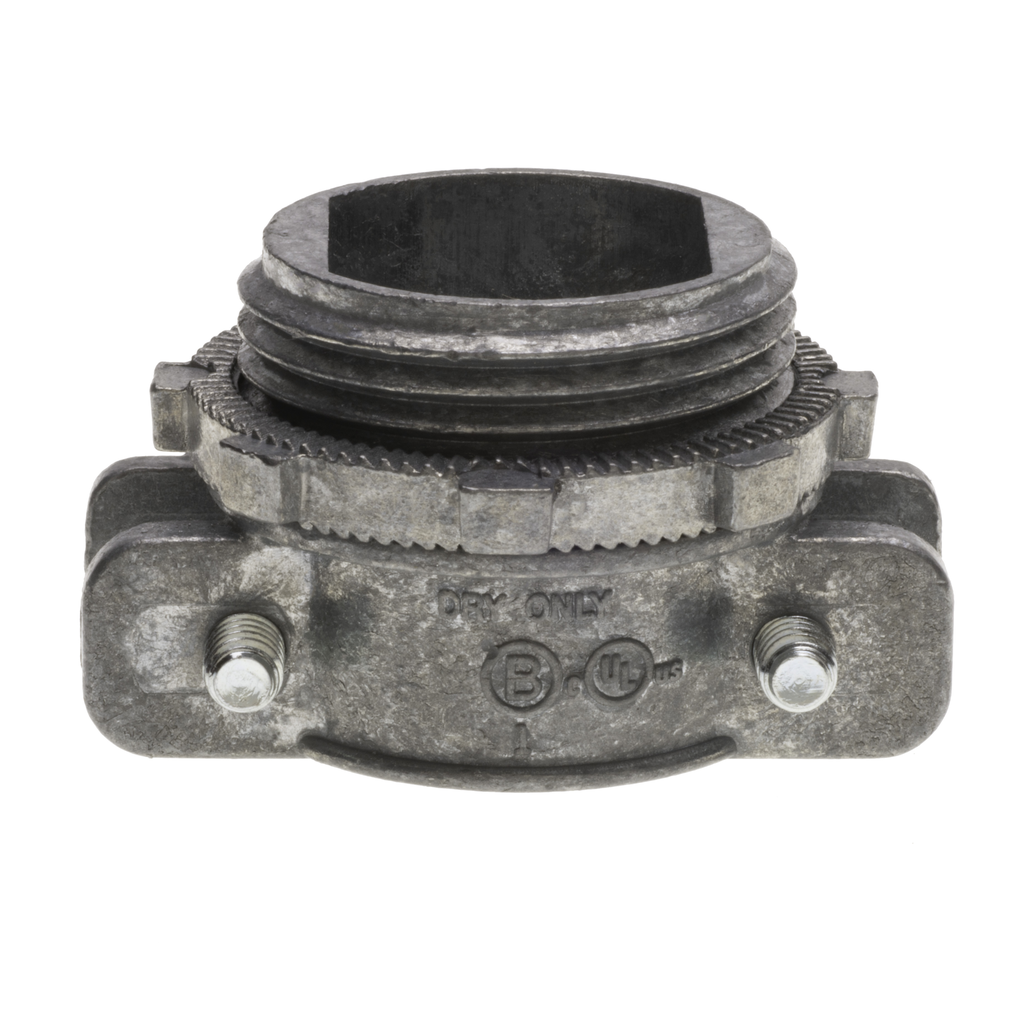

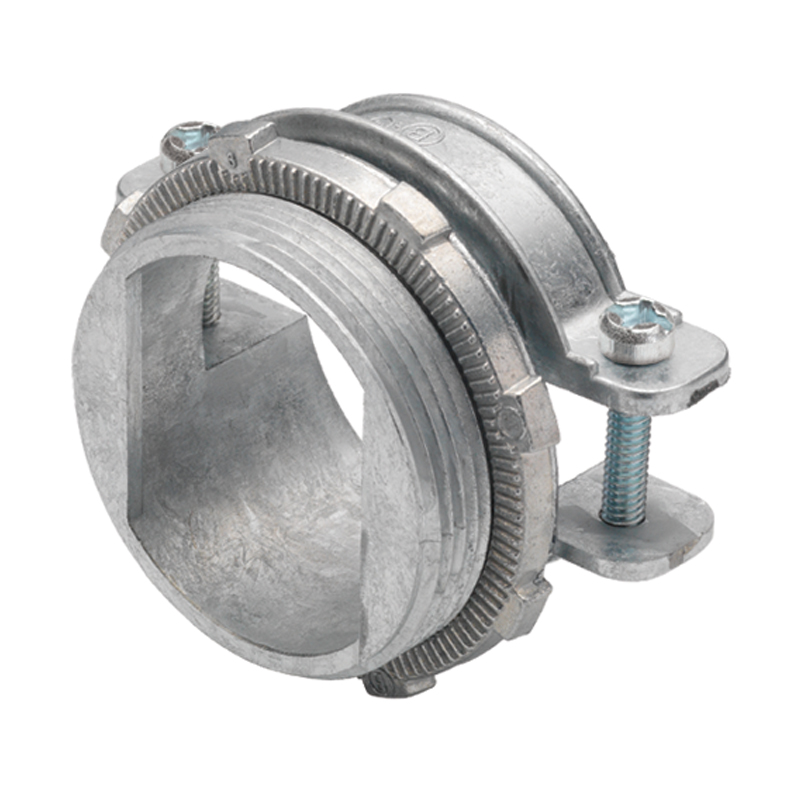

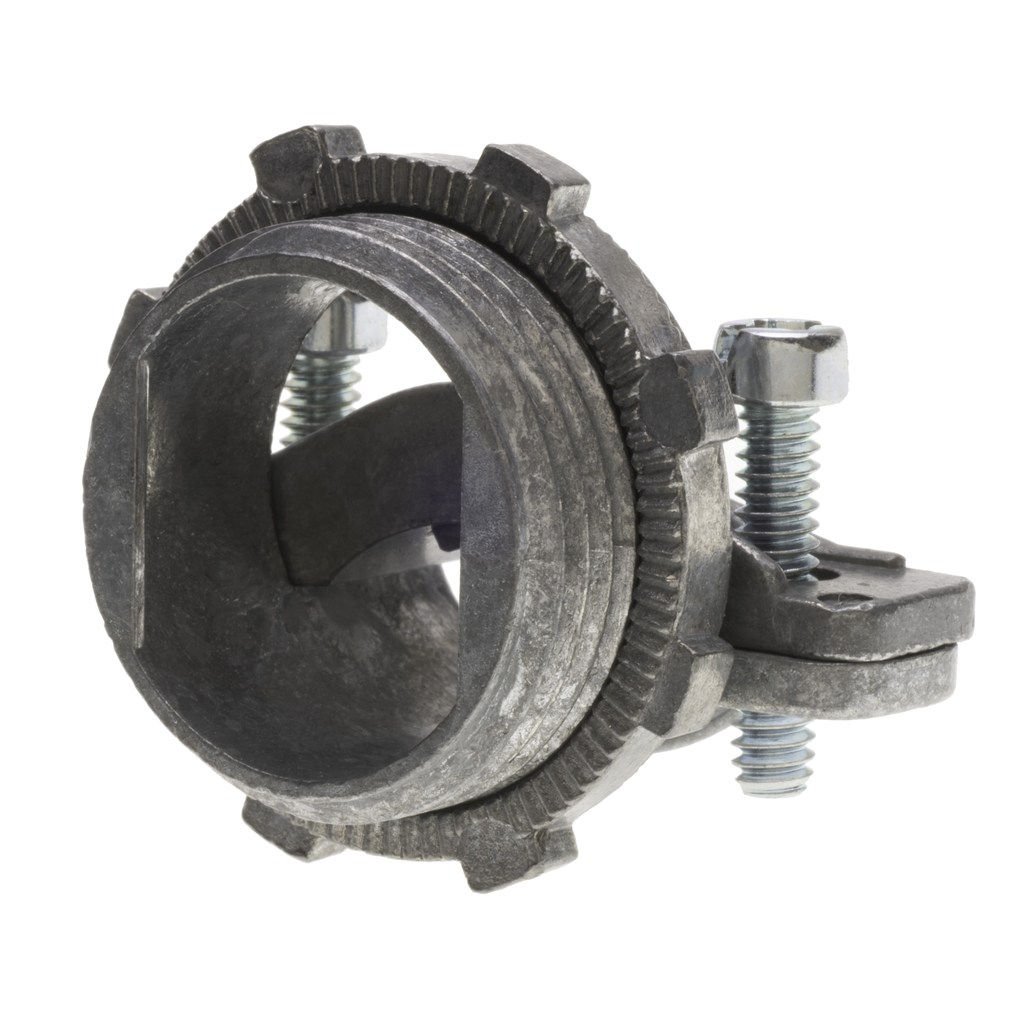

Bridgeport Fittings 686-DCX2 MC Connector Two Screw Strap 2 in Zinc Die Cast Ball Burnished Mirror Smooth
The Two Screw Strap Type MC Connector from Bridgeport Fittings exemplifies both reliability and superior engineering, designed to securely connect interlocked metal clad cables in various applications. Constructed from corrosion-resistant die cast zinc, this connector not only ensures a precise fit, facilitating ease of assembly, but also adheres to UL-514B standards, guaranteeing safety and performance. Its rectangular throat acts as a positive stop for the inserted cable jacket, which helps ensure that the connections maintain integrity and stability. With a ball burnished, mirror smooth finish, this connector not only serves functional purposes but also enhances the aesthetic of your installation. Fitted with two screws, it promises a secure connection for cables ranging from 3-3/0 to 3-250 MCM (1.5"-1.85") when interfacing with a box or enclosure. Backed by a one-year warranty, this versatile connector is a testament to Bridgeport’s commitment to quality and innovation in the electrical fitting sector.
- UL-514B listed for safety and performance assurance
- Corrosion-resistant die cast zinc construction
- Two screw strap design ensures secure cable connection
- Rectangular throat provides positive stop for cable jacket
- Fits cables from 3-3/0 to 3-250 MCM (1.5"-1.85")
- Ball burnished, mirror smooth finish enhances aesthetics
- Precise fit facilitates ease of assembly
- Versatile connector for use with boxes or enclosures
- Connector Type: Two Screw Strap Type
- Length: 3.5 in
- Width: 2.75 in
- Depth: 0.8125 in
- Size: 2 in
- Material: Die Cast Zinc
- Finish: Ball Burnished, Mirror Smooth
- UL Listing: UL 514B, File E202876
- Weight: 56 lbs
- Country of Origin: United States
