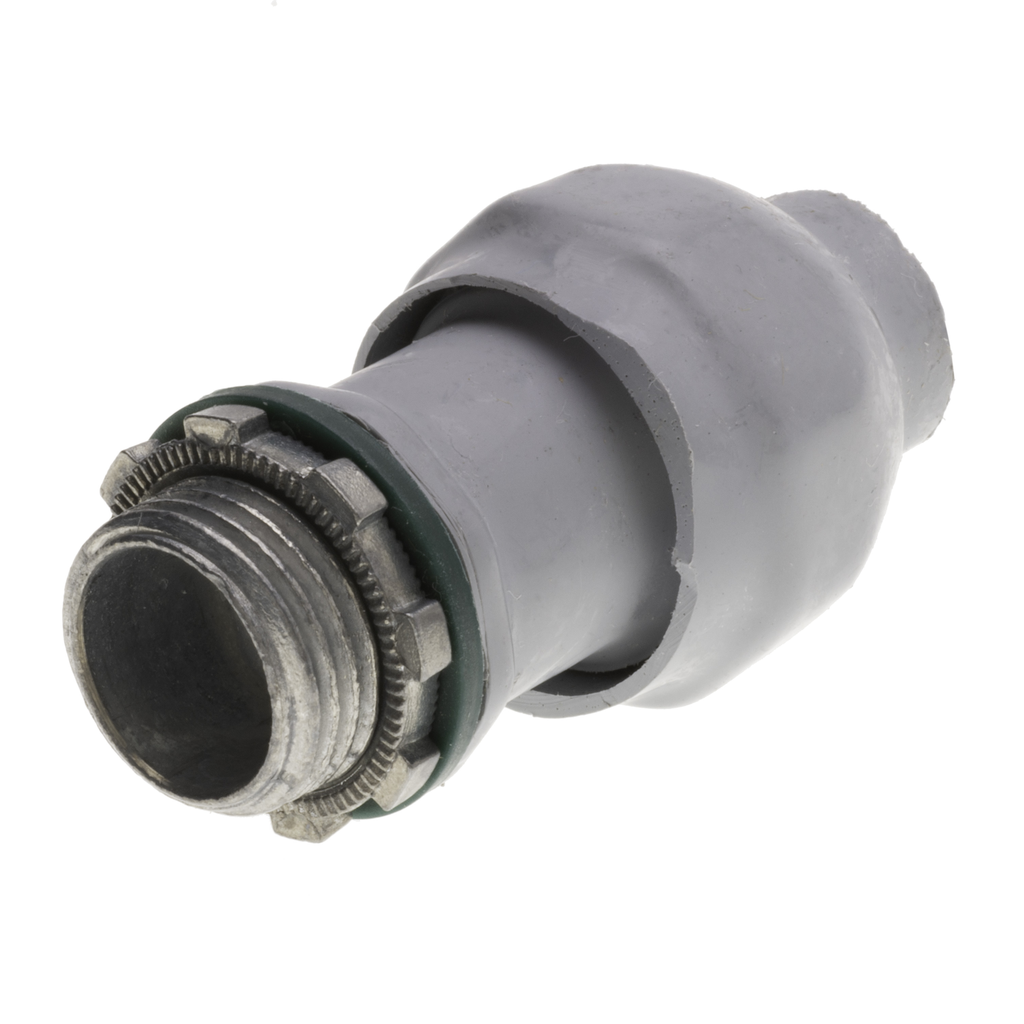

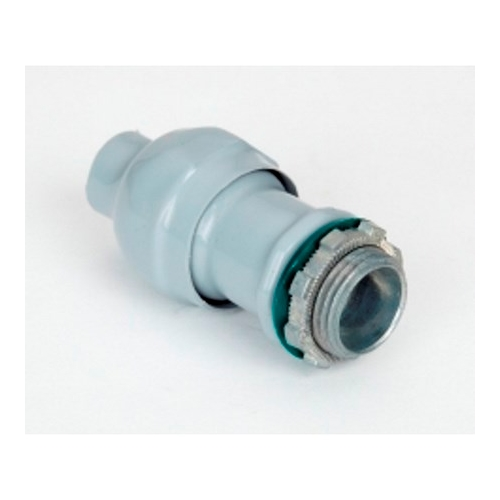

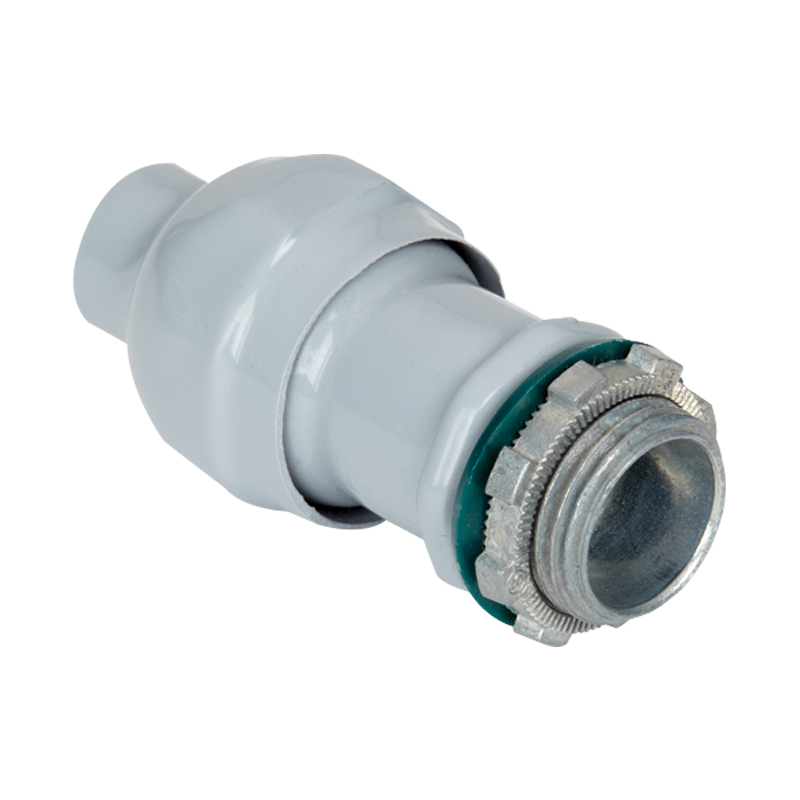

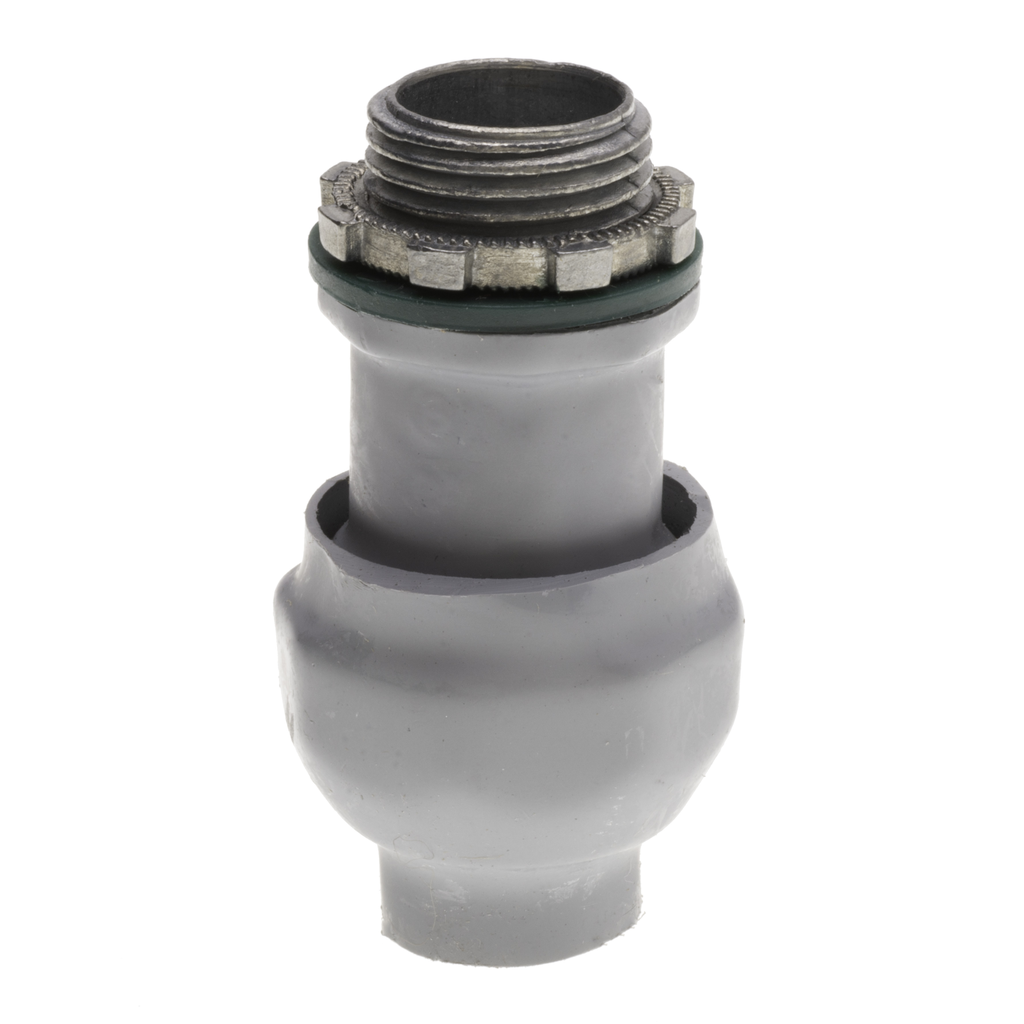

Bridgeport Fittings 595-DC2C Cable Connector 3/8 in Zinc Die Cast Cor-Shield Coated Direct Burial UL-514B
Engineered for superior reliability in electrical installations, the Mighty-Seal® PVC Jacketed MC/TECK Cable Connector provides a robust solution for connecting jacketed metal clad cable and TECK cable to various electrical enclosures. With its durable zinc die cast construction and Cor-Shield polyolefin coating, this connector ensures corrosion resistance and exceptional protection against environmental factors, including UV exposure and salt spray, making it suitable for direct burial applications. The connector features a precise fit that simplifies assembly; users can easily strip the cable jacket before connecting, while a polyethylene gasket forms a tight, rain-proof seal at the knockout, safeguarding internal wiring. NRTL listed to meet UL-514B standards, this product is designed not only for professional performance but also for ease of installation, providing reliable service for a wide range of electrical setups.
- NRTL listed to meet UL-514B safety standards
- Polyethylene gasket ensures a tight, rain-proof seal
- Durable zinc die cast construction for long-lasting use
- Cor-Shield polyolefin coating provides corrosion resistance
- UV and salt spray protection suitable for direct burial
- Precise fit simplifies assembly and cable connection
- Compatible with jacketed MC and TECK cables
- Meets NEMA Type 2, 3, 3R, 4, and 4X environmental ratings
- Suitable for a wide range of electrical enclosures
- Connector Size: 3/8 in
- Material: Die Cast Zinc
- Coating: Cor-Shield Polyolefin Coating
- Seal Type: Polyethylene Gasket
- Compliance: UL 514B Listed
- Application: Direct Burial, connects jacketed MC/TECK cable to box/enclosure, cable range .50-.61 in, max jacket O.D. .72 in
- Length: 2.25 in
- Width: 1.32 in
- Weight: 1.806 lbs
- Country of Origin: United States
- NEMA Rating: Type 2, 3, 3R, 4, 4X
