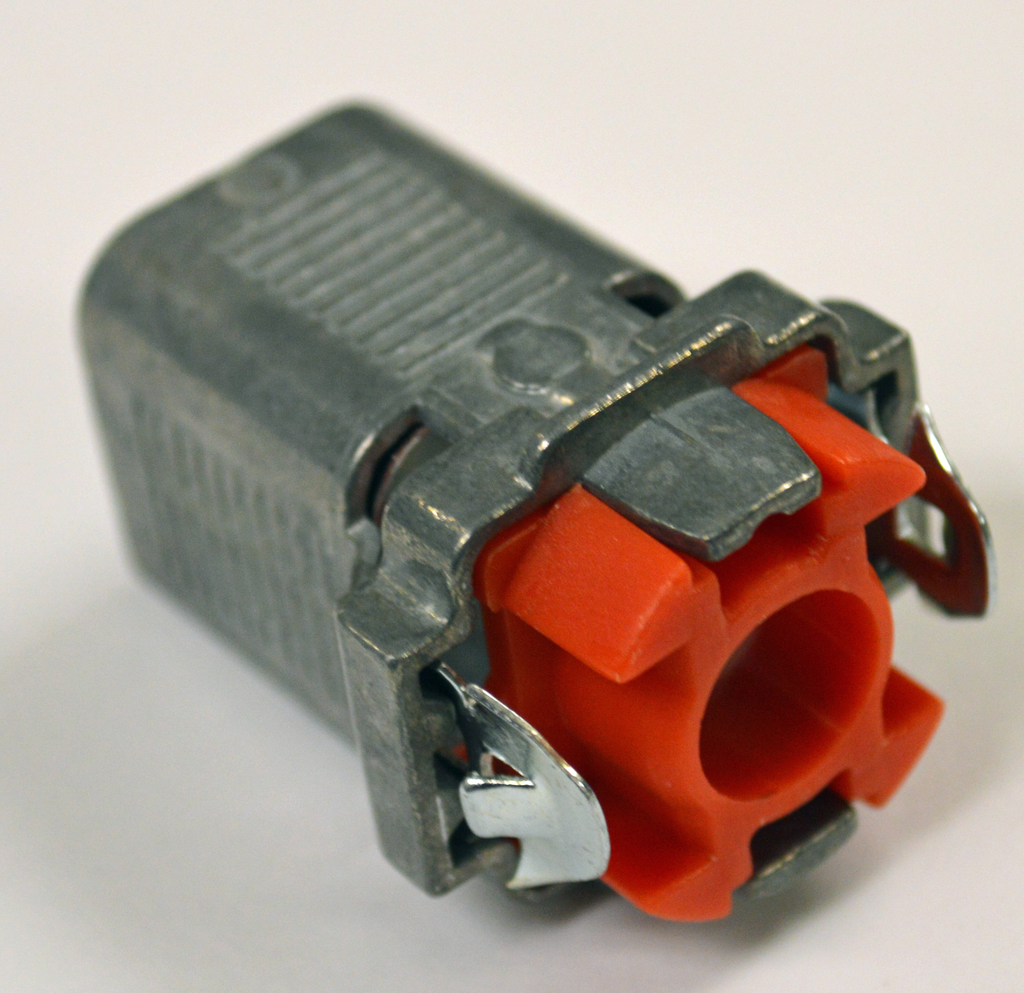

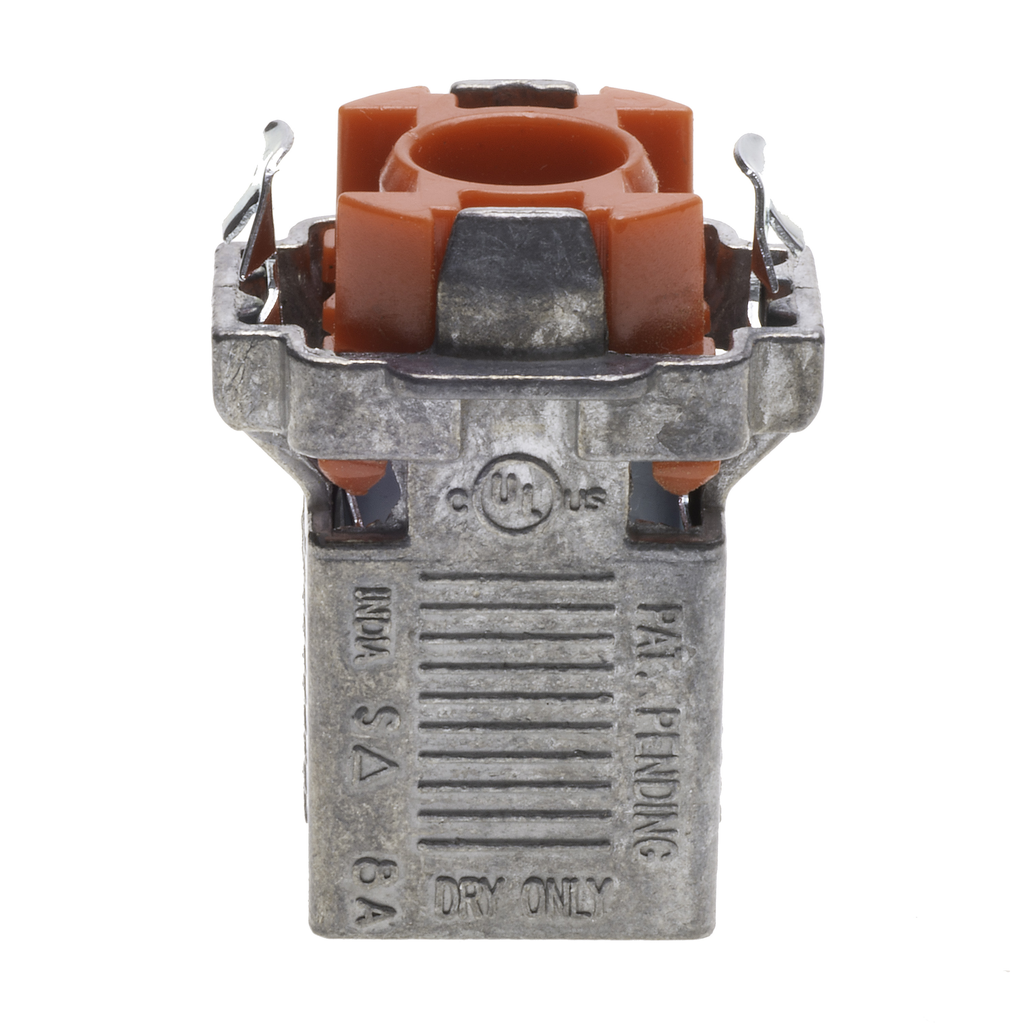

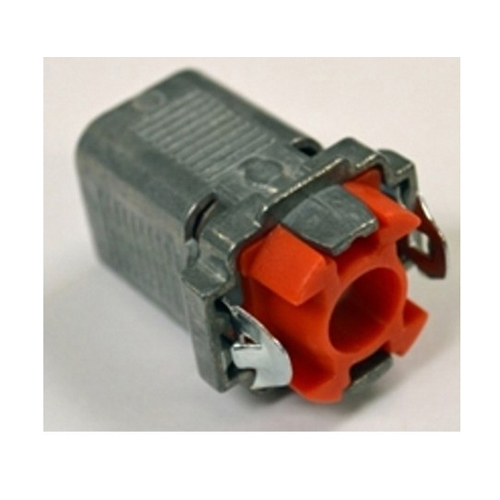

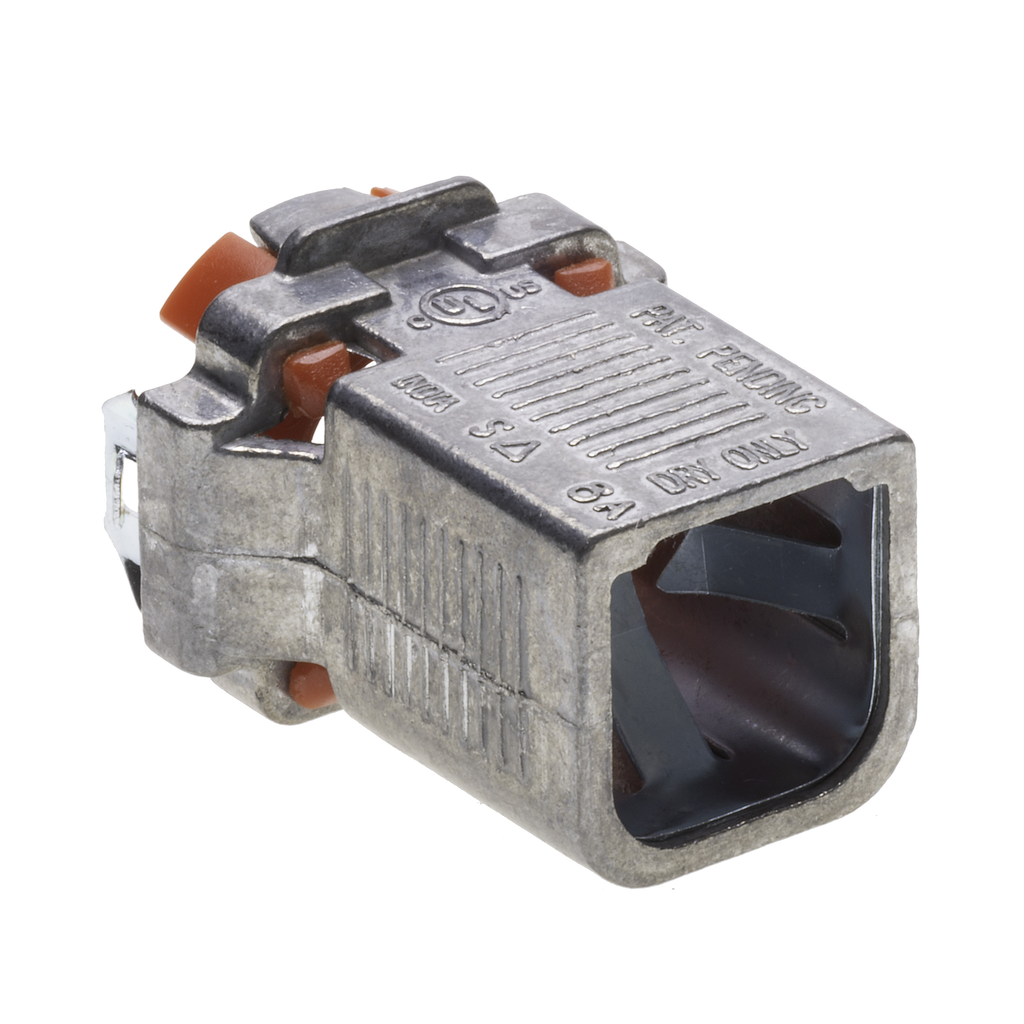

Bridgeport Fittings 38ADS AC/MC Snap-In Connector 3/8 in Insulated Throat Zinc Die Cast
Bridgeport Fittings presents the E-Z Lock® Insulated AC/MC Connector, specifically designed for new work applications with a versatile 3/8" size. This innovative connector features a unique insulated throat that provides superior protection against cable abrasion, ensuring long-lasting durability and effective maintenance of grounding continuity, in compliance with the NEC. Made from high-quality zinc die cast with a ball burnished finish, the connector is not only robust but also easy to install, as it requires no tools; simply snap the cable into place and the connector into the box. Engineered for efficiency, the double-snap design incorporates front and rear locking tabs that securely fasten cables and connectors for enhanced reliability, making it suitable for a variety of installations including 14/2 to 10/3 aluminum and steel AC/MC applications. Whether you're a professional electrician or handling a DIY project, this connector promotes quality workmanship and installation speed, ultimately providing a dependable solution for your electrical needs.
- NRTL and cULus Listed for safety assurance
- Insulated throat prevents cable abrasion
- Maintains grounding continuity compliant with NEC
- Durable zinc die cast construction with ball burnished finish
- Double-snap design with front and rear locking tabs for secure fastening
- Tool-free snap-in installation for easy use
- Compatible with 14/2 to 10/3 aluminum and steel AC/MC cables
- UL 514B compliance for electrical fittings
- Suitable for new work electrical installations
- Temperature Rating: 1056C

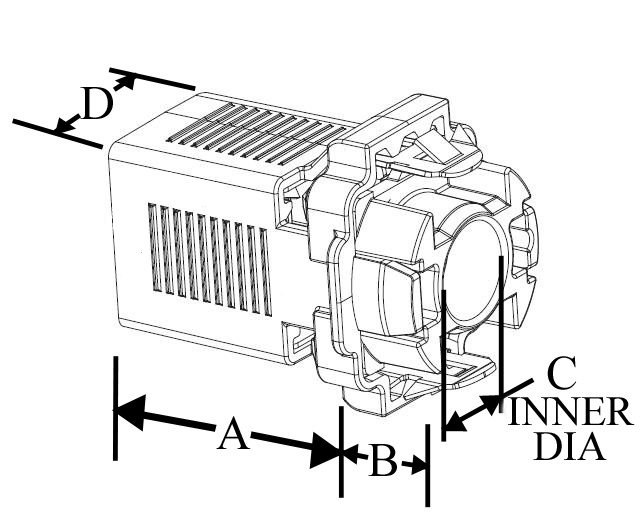

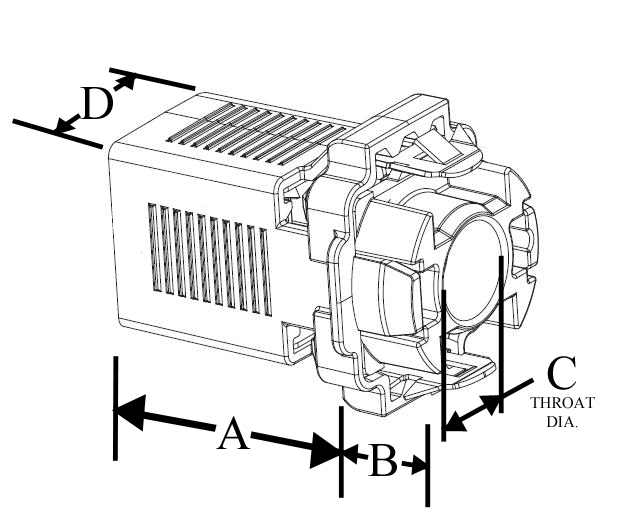

- Connector Size: 3/8 in
- Cable Size: 14/2 to 10/3 (0.40 in to 0.63 in)
- Length: 1.165 in
- Width: 0.77 in
- Depth: 0.28 in
- Weight: 3.29 lbs
- Material: Zinc Die Cast, Spring Steel, Plastic Bushing
- Finish: Ball burnished, mirror smooth, Grounding lug: Tin electro-plate
- NEMA Rating: FB-1
- Compliance: UL 514B, NRTL Listed, cULus Listed, UL File # E20534
- Country of Origin: India
