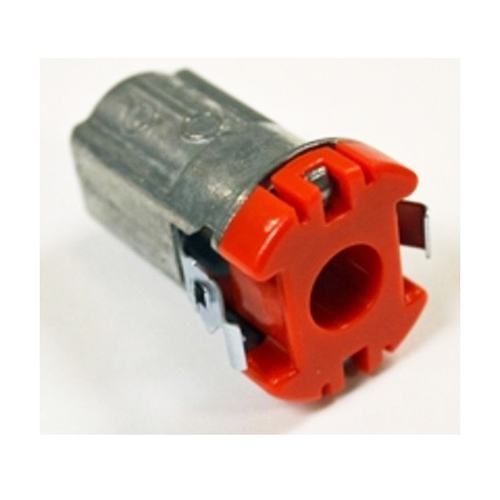

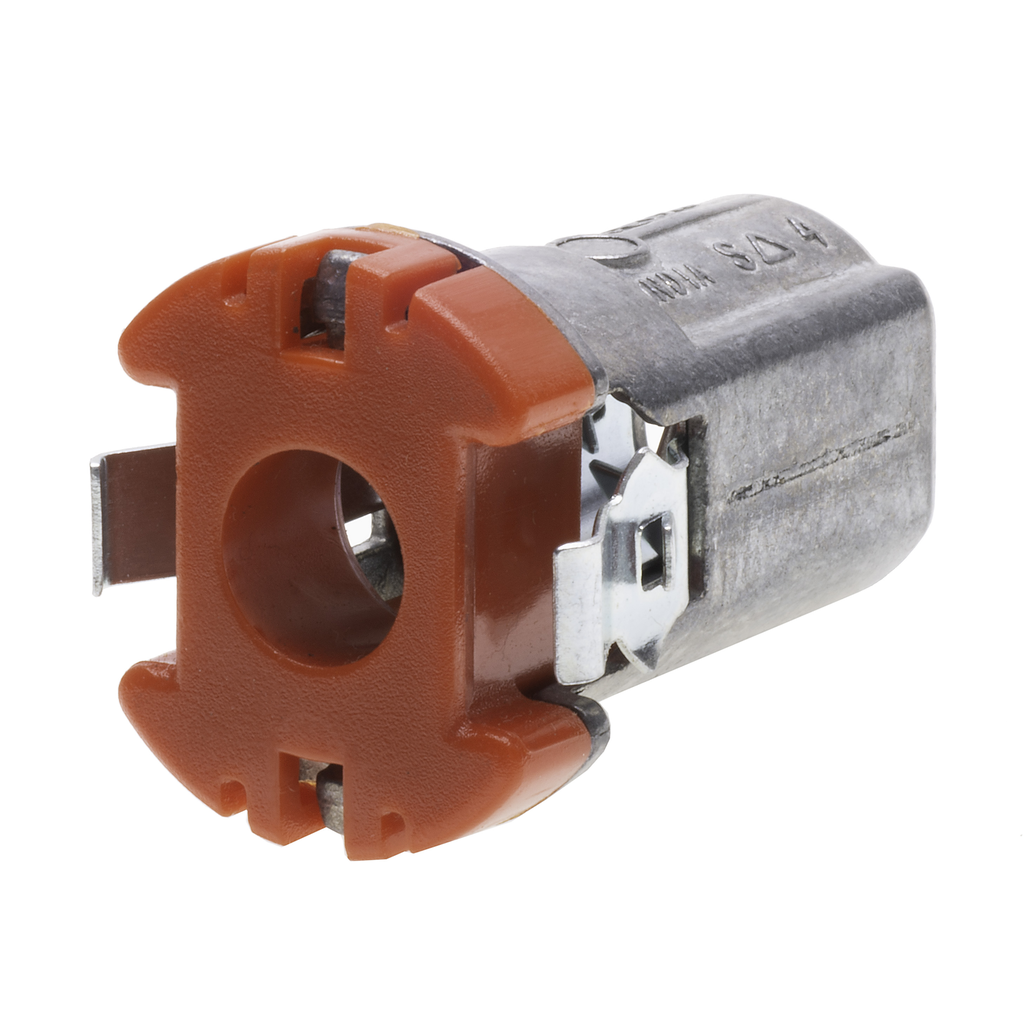

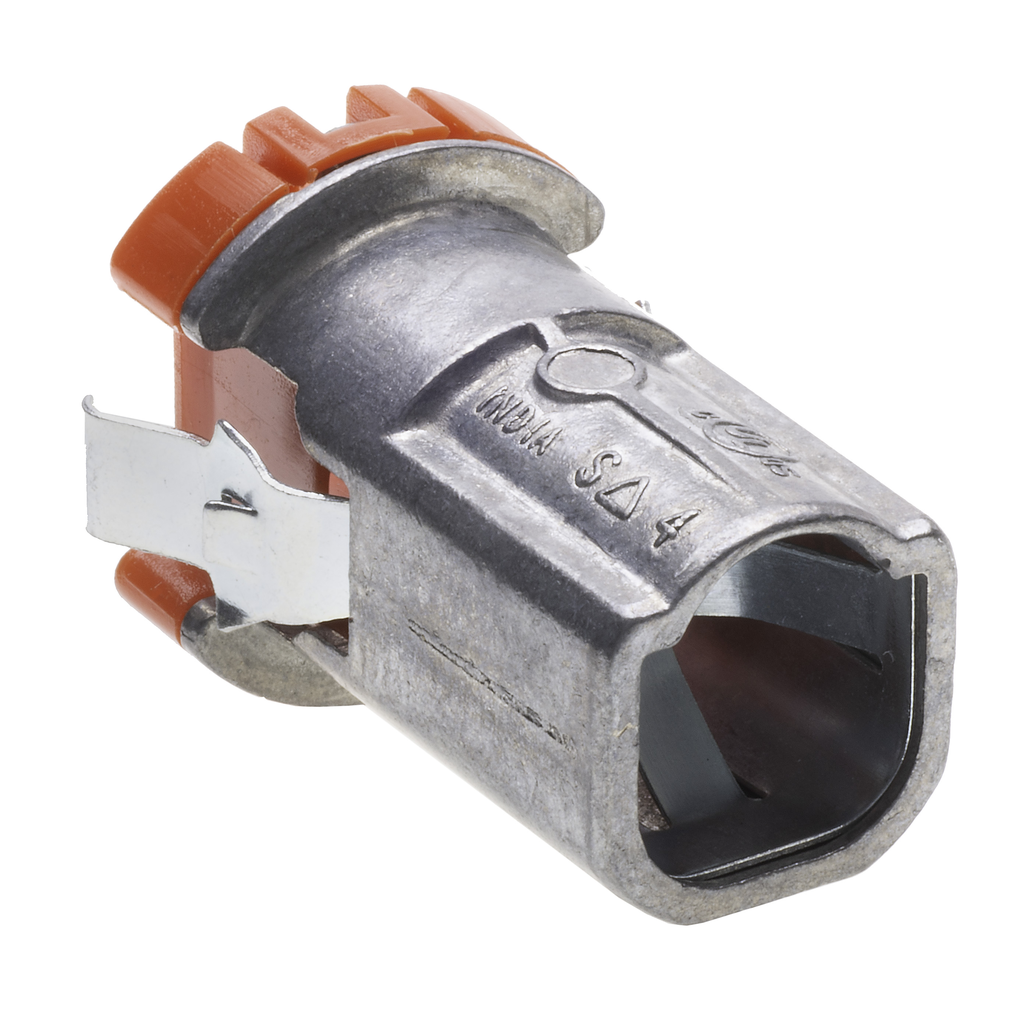

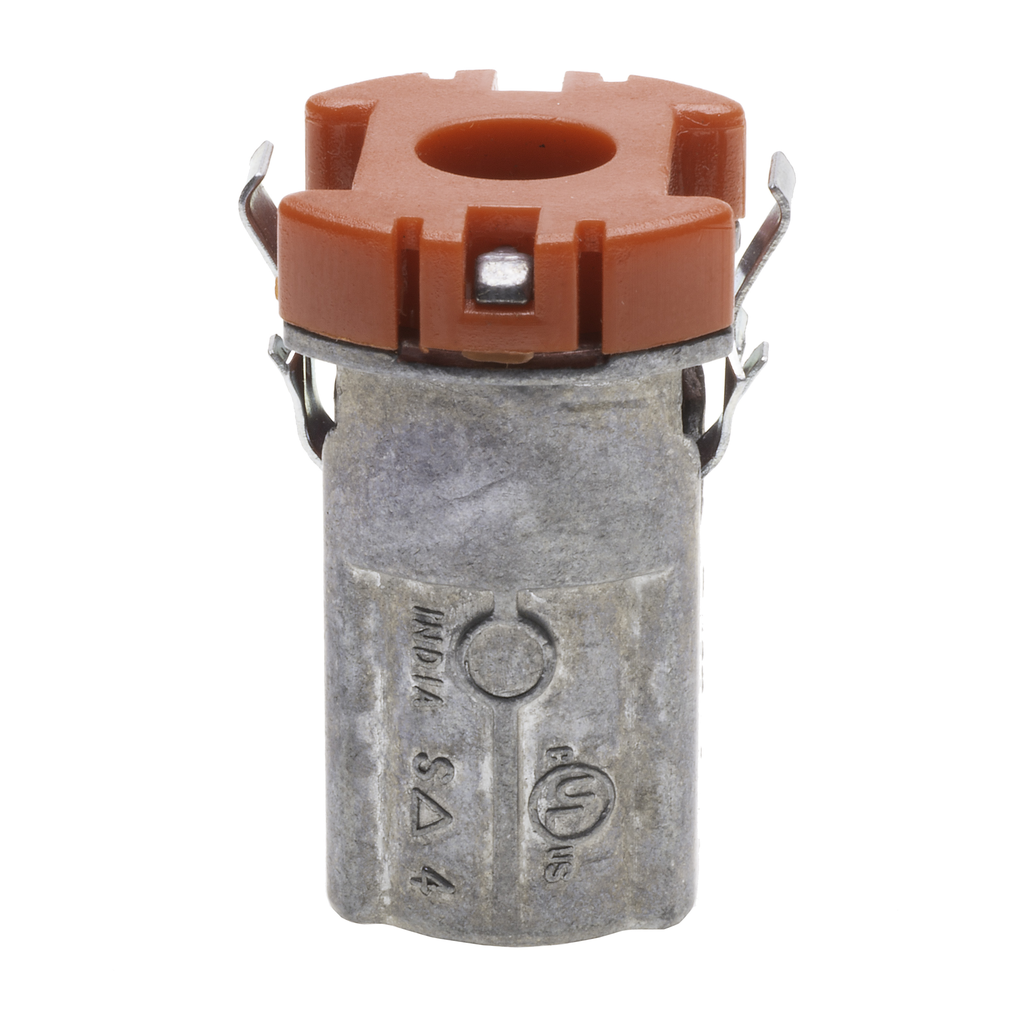

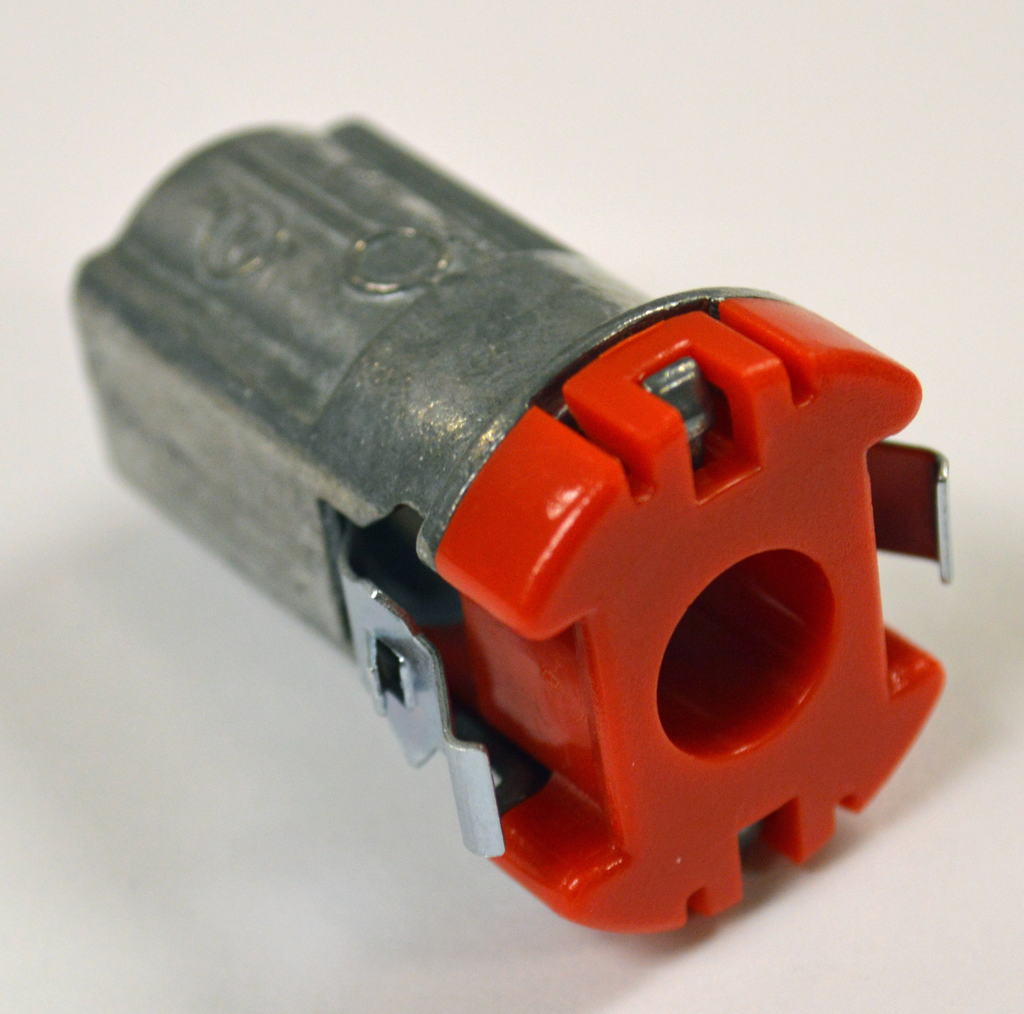

Bridgeport Fittings 38ACDS AC MC Snap-In Connector 3/8 in Zinc Die Cast Insulated Throat
The E-Z Lock® Insulated AC/MC Connector is designed for efficient installation in old work applications, where speed and reliability are paramount. Crafted from durable zinc die cast and equipped with a patented double-snap design, this connector ensures that it can be installed and removed in a fraction of the time compared to traditional options, promoting quality workmanship as you tackle your projects. Its insulated throat offers enhanced protection against cable abrasion, and the product is rated up to 105°C, guarding against potential wire damage. This connector meets essential grounding and bonding requirements when installed according to NEC standards, making it an invaluable component for maintaining safety and efficiency in electrical setups.
- UL 514B certified for safety and reliability
- Meets grounding and bonding requirements per NEC standards
- Insulated throat provides enhanced cable abrasion protection
- Durable zinc die cast construction for long-lasting use
- Rated up to 105°C for high-temperature resistance
- Patented double-snap design for quick installation and removal
- Ball burnished, mirror smooth finish reduces corrosion
- Grounding lug with tin electro-plate ensures corrosion resistance
- Temperature Rating: 1056C
- Cable Fit Range: 14/2 to 10/3 (0.40 to 0.63 in)
- Country of Origin: India
- NEMA Rating: FB-1
- Material: Zinc Die Cast, Spring Steel, Plastic Bushing
- Finish: Ball burnished, mirror smooth, Grounding lug: Tin electro-plate
- UL Certification: UL 514B, NRTL Listed, UL File #E20534
- NPD Date Electrical: 2013-04-17

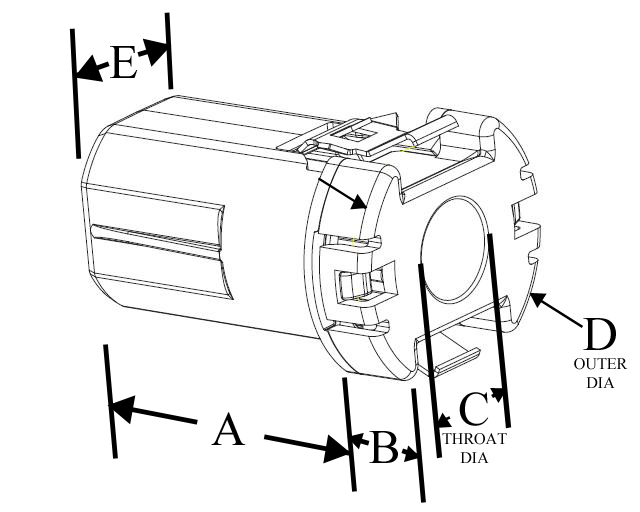

- Width: 1.11 in
- Length: 1.22 in
- Depth: 0.39 in
- Weight: 2.69 lbs
- BPT Trade Size: 3/8 in
- Conduit Size: 3/8 in FMC
- Knockout Size: 1/2 in
- Insulated Connector: Rated to 1056C for cable abrasion protection
