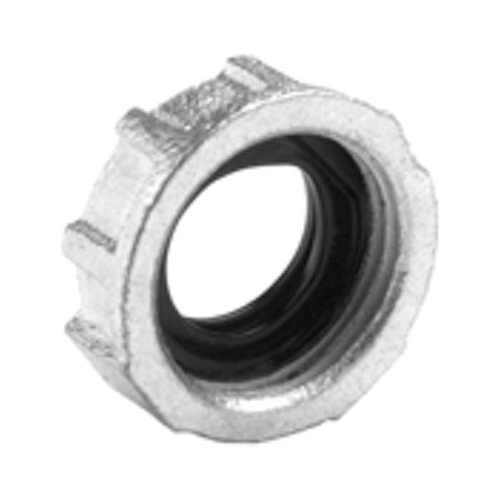

Bridgeport Fittings 361 Insulated Bushing 1/2 in Malleable Iron Zinc Electroplate Gray Black Insulator
Engineered for robust functionality, this insulated bushing from Bridgeport Fittings is an essential component for reliable box terminations. Constructed from malleable iron and finished with zinc electroplating, it offers outstanding durability and resistance to corrosion, making it suitable for a variety of industrial applications. The design incorporates a plastic metal liner to safeguard wire insulation, while the threaded coupling allows for straightforward connections with rigid or IMC conduits. Meeting stringent UL standards, this product ensures compatibility and performance in demanding environments, standing out as a dependable choice for electrical installations.
- UL-514B and NRTL listed for safety compliance
- Constructed from malleable iron with zinc electroplated finish for corrosion resistance
- Plastic metal liner protects wire insulation
- Threaded coupling enables easy connection to rigid or IMC conduits
- Suitable for use up to 150°C temperature rating
- Designed for reliable box terminations in electrical installations
- NEMA FB-1 rated for electrical fittings durability
- Temperature Rating: 150 6C
- Size: 1/2 in.
- Length: 1.0625 in.
- Diameter: 0.625 in
- Material: Malleable Iron
- Finish: Zinc electroplated
- UL File #: E9391
- NEMA Rating: FB-1
- Compliance: UL-514B, NRTL Listed, OSHA Recognized
- Weight: 2.9 lbs
- Country of Origin: China
- Color: Grey with Black Insulator
