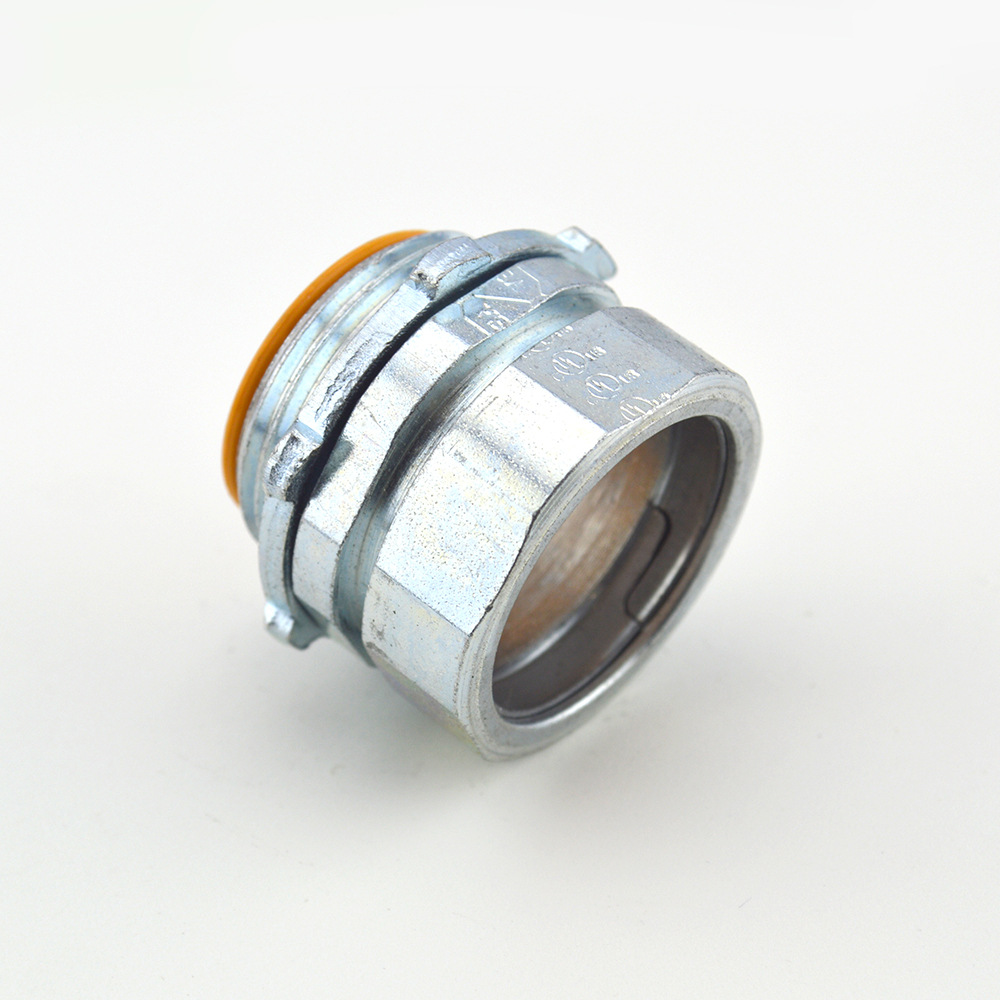

Bridgeport Fittings 252-USI EMT Compression Connector 1 in Insulated Steel Zinc Electro-Plate
Engineered for reliability and ease of installation, this insulated EMT compression connector from Bridgeport Fittings is a vital component for any electrical system. Designed to provide fast and dependable connections, it allows users to simply insert the EMT and tighten the ring for a secure fit, facilitating a smoother workflow. The durable steel construction, complemented by zinc plating, ensures exceptional corrosion resistance, making it suitable for demanding environments. With an insulated throat that protects against cable abrasion and is rated up to 105°C, this connector not only enhances safety but also supports a range of applications, accommodating trade sizes from 1/2" to 4". Trust in its UL certification and robust design for your next installation project, knowing it meets the highest standards for electrical performance.
- UL listed for electrical safety assurance
- Concrete-tight seal between EMT and electrical boxes
- Insulated throat protects against cable abrasion
- Rated to 105°C for high-temperature applications
- Durable steel construction with zinc plating for corrosion resistance
- Quick and reliable compression connections for EMT
- Flexible sizing available from 1/2" to 4" trade sizes
- Made in the USA ensuring quality manufacturing
Specifications
- Country of Origin: United States
- Fast Connections: EMT compression connectors offer quick and reliable connections between EMT and a box knockout – just insert the EMT, tighten the ring and you're done
- Flexible Sizing: Insulated steel compression type EMT connectors are available in trade sizes 1/2" to 4", offering greater flexibility for all of your EMT installation needs
- UL File #: E24001
- BPT Trade Size: 1"
- Insulated Connector: An insulated throat offers superior protection against cable abrasion and is rated up to 105℃
- Strong and Durable: Steel EMT connectors feature a strong steel body with zinc plating for both durability and excellent corrosion resistance in harsh environments
- MATERIAL: Steel
- Division: Electrical H1
- Width: 1.813 in
- NPD Date Electrical: 2008-07-02T00:00:00.000Z
- Weight: 19.4 lbs
- NEMA Rating: FB-1
- Field Application: Compression type connectors used to join EMT to box or enclosure. Concrete Tight. Made in the USA! Insert UL bug. Insulated Throat -105 DegreeC.
- Collection Folder: 252-USI
- WARRANTY: 1 Year
- Sub-Division: Electrical-E H2
- FINISH: Zinc Electro-Plate
- Length: 2 in
- Concrete-Tight: Compression type EMT connectors provide a concrete-tight seal between EMT and an electrical box or enclosure knockout
