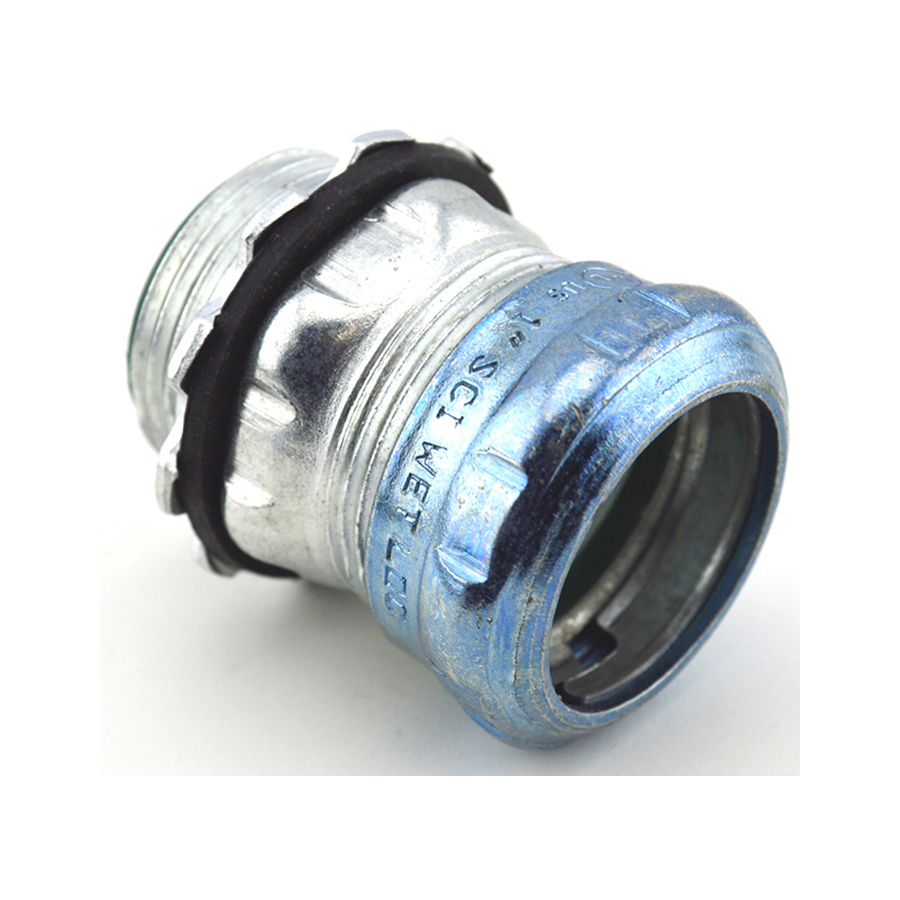

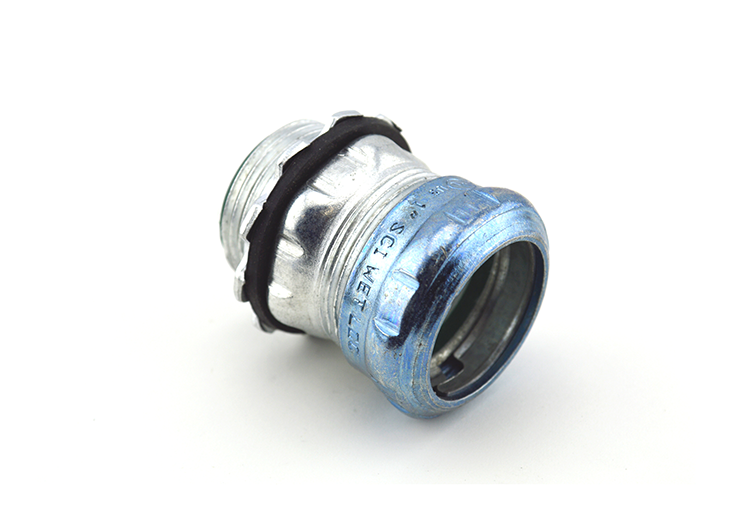

Bridgeport Fittings 252-SRTI EMT Compression Connector 1 in Raintight Insulated Steel Zinc Electro-Plate
Designed for robust connectivity, the Raintight Screw-on EMT Compression Connector excels in environments where moisture intrusion is a concern. Engineered by Bridgeport Fittings, this insulated connector features a unique internal sealing system, including an BUNA-N knockout gasket, ensuring a reliable raintight seal while effectively protecting cables against abrasion up to 105°C. With its durable steel construction and zinc electro-plated finish, it not only withstands harsh conditions but also eliminates the need for separate hardware components, streamlining installation tasks. UL Listed and compliant with NEMA Type 2, 3, 3R, and 4 standards, this compression connector is a dependable choice for professionals needing a fusion of safety and performance in electrical applications.
- UL Listed and compliant with NEMA Type 2, 3, 3R, and 4 standards including UL-514B
- Raintight seal with internal sealing ring and BUNA-N knockout gasket
- Insulated design protects cables against abrasion and moisture
- Steel construction with zinc electro-plated finish for corrosion resistance
- Maintains performance up to 105°C temperature
- Screw-on compression design for secure and reliable connectivity
- No separate hardware needed for streamlined installation
- Temperature Range: Up to 105dc
- Compliance: UL Listed (File No. E24001), UL-514B, NEMA Type 2, 3, 3R, 4
- Thread Type: NPSM
- Size: 1 in
- Length: 2 in
- Width: 1.5625 in
- Material: Steel
- Finish: Zinc electro-plate
- Seal Type: Internal sealing ring, BUNA-N knockout gasket
- Weight: 27.1 lbs
- Country of Origin: China
