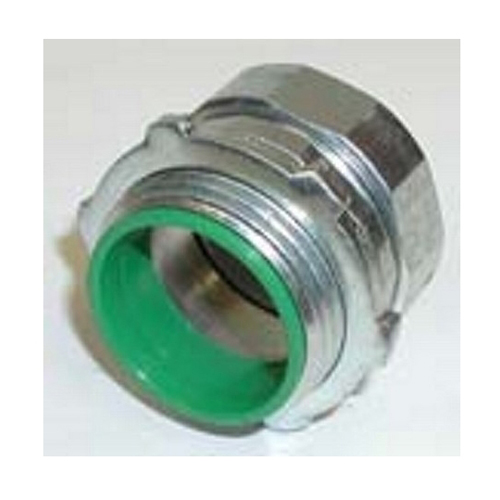

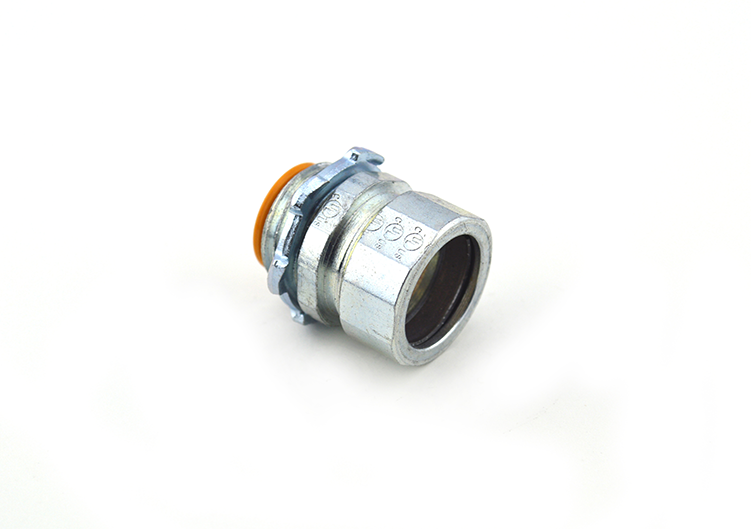

Bridgeport Fittings 250-USI EMT Compression Connector 1/2 in Concrete Tight Insulated Throat Zinc Steel

Crafted for efficiency and reliability, this insulated compression connector seamlessly joins EMT conduits to electrical boxes or enclosures, ensuring a concrete-tight seal for robust installations. Its insulated throat design offers exceptional protection against cable abrasion, allowing it to withstand temperatures of up to 105°C, making it ideal for various electrical applications. Made from strong steel and featuring a zinc electro-plated finish, this connector is resistant to corrosion, ensuring durability even in challenging environments. With a simple and fast installation process, just insert the EMT and tighten the ring for a secure connection, enhancing both the quality and performance of your electrical setups.

• UL-514B certified for safety
• Insulated throat protects against cable abrasion
• Rated for temperatures up to 105°C for thermal reliability
• Concrete-tight seal for secure EMT to box connections
• Strong steel construction with zinc electro-plated finish resists corrosion and enhances durability
• Quick and easy installation with compression design
• Available in multiple trade sizes for flexible application

Specifications

• Field Application: Compression type connectors used to join EMT to box or enclosure. Concrete Tight. Made in the USA! Insert UL bug. Insulated Throat -105 DegreeC.
• BPT Trade Size: 1/2"
• Sub-Division: Electrical-E H2
• Length: 1.75 in
• Country of Origin: United States
• Fast Connections: EMT compression connectors offer quick and reliable connections between EMT and a box knockout – just insert the EMT, tighten the ring and you're done
• NPD Date Electrical: 2008-07-14T00:00:00.000Z
• Insulated Connector: An insulated throat offers superior protection against cable abrasion and is rated up to 105℃
• UL File #: E24001
• MATERIAL: Steel
• Collection Folder: 250-USI
• Width: 1.25 in
• Weight: 8.1 lbs
• WARRANTY: 1 Year
• Flexible Sizing: Insulated steel compression type EMT connectors are available in trade sizes 1/2" to 4", offering greater flexibility for all of your EMT installation needs
• Strong and Durable: Steel EMT connectors feature a strong steel body with zinc plating for both durability and excellent corrosion resistance in harsh environments
• Division: Electrical H1
• Concrete-Tight: Compression type EMT connectors provide a concrete-tight seal between EMT and an electrical box or enclosure knockout
• FINISH: Zinc Electro-Plate
• NEMA Rating: FB-1
