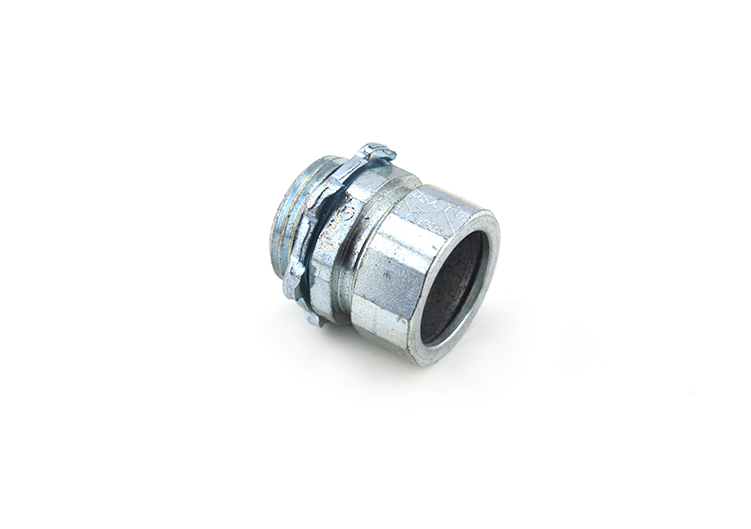

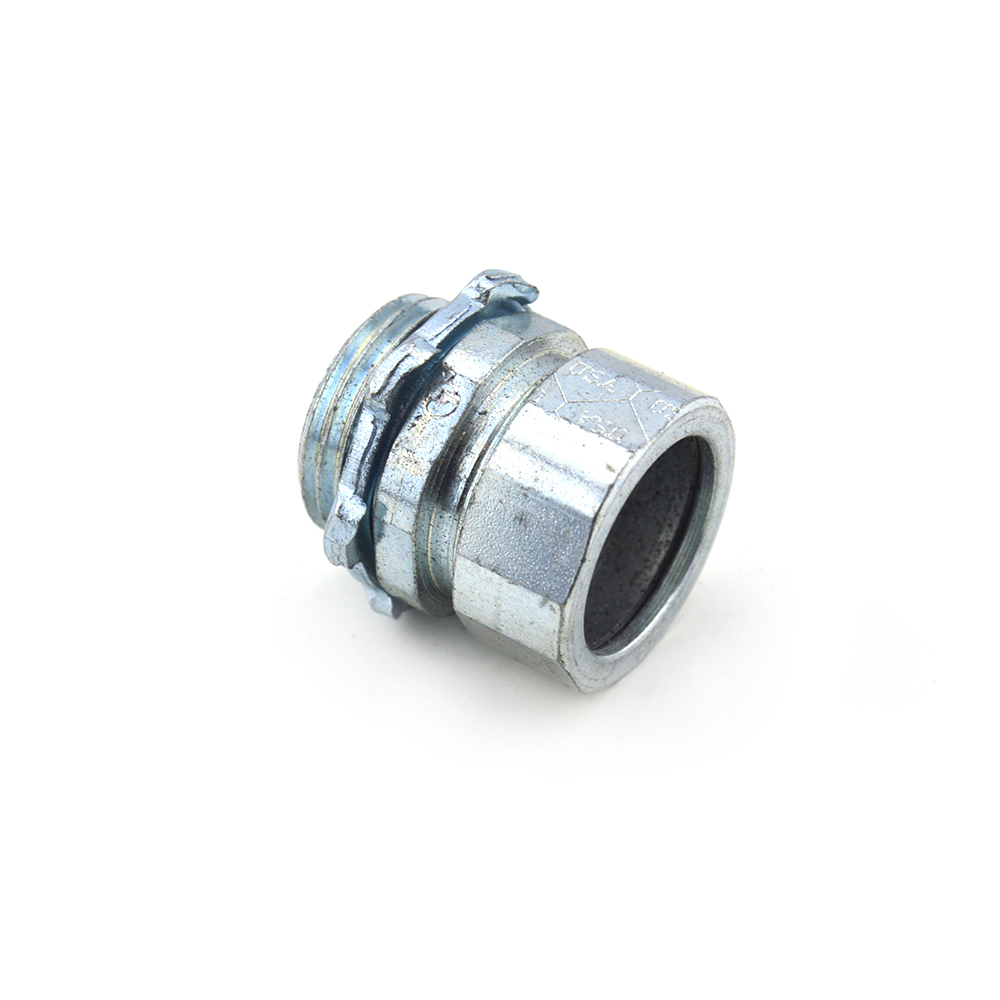

Bridgeport Fittings 250-US EMT Compression Connector Concrete-Tight 1/2 in Steel Zinc Electro-Plate

Brand SKU 311759
Skip image gallery

Crafted specifically for robust electrical installations, the screw-on EMT compression connector from Bridgeport Fittings excels in providing reliable and efficient connections between EMT conduits and electrical boxes. This durable connector features a steel construction with a zinc electro-plated finish, ensuring long-lasting performance and excellent corrosion resistance, even in harsh environments. Its design allows for quick connections—simply insert the EMT, tighten the ring, and the job is done, making it an ideal choice for both professional and DIY applications. Additionally, with a concrete-tight seal, it meets the stringent standards laid out by UL-514B, guaranteeing safety and effectiveness for your electrical projects. With flexible sizing options available from 1/2" to 4", this connector addresses diverse installation needs while proudly supporting American manufacturing.

  • Concrete-tight seal ensuring safety in electrical installations
  • UL-514B compliance for certified safety and effectiveness
  • Durable steel construction with zinc electro-plated finish for corrosion resistance
  • Quick screw-on EMT compression connection for efficient installation
  • Available in flexible sizes from 1/2" to 4" to suit various EMT installation needs
  • Made in the USA supporting American manufacturing standards

Specifications

  • WARRANTY: 1 Year
  • Fast Connections: EMT compression connectors offer quick and reliable connections between EMT and a box knockout – just insert the EMT, tighten the ring and you're done
  • NEMA Rating: FB-1
  • Width: 1.06 in
  • Weight: 8 lbs
  • Field Application: Compression type connectors used to join EMT to box or enclosure. Concrete Tight. Made in the USA
  • Country of Origin: United States
  • Flexible Sizing: Steel compression type EMT connectors are available in trade sizes 1/2" to 4", offering greater flexibility for all of your EMT installation needs
  • UL File #: E24001
  • NPD Date Electrical: 2008-07-10T00:00:00.000Z
  • FINISH: Zinc Electro-Plate
  • Collection Folder: 250-US
  • Length: 1.12 in
  • American-Made: When you buy Bridgeport, you buy from an American manufacturing company
  • Strong and Durable: Steel EMT connectors feature a strong steel body with zinc plating for both durability and excellent corrosion resistance in harsh environments
  • Concrete-Tight: Compression type EMT connectors provide a concrete-tight seal between EMT and an electrical box or enclosure knockout
  • MATERIAL: Steel
  • Division: Electrical H1
  • Sub-Division: Electrical-E H2
  • BPT Trade Size: 1/2"
