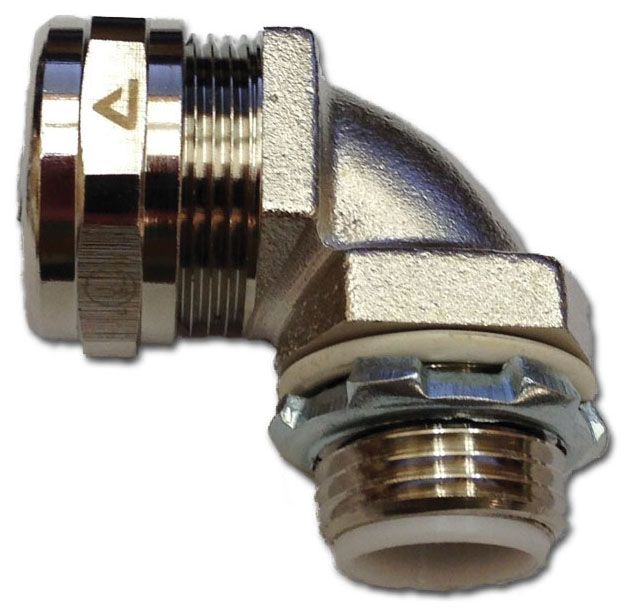

Anamet Electrical 71452692IT Liquid Tight Conduit Fitting 1 Inch NPT 90 Degree Compact 316 Stainless Steel

Engineered for resilience in challenging environments, the Liquid Tight Conduit Fitting from Anamet Electrical showcases a compact design that is both 20% smaller and 35% lighter than traditional Sealtite® fittings, making it perfectly suited for tight spaces. With a robust temperature rating of -49 to 221 degrees Fahrenheit, this fitting is versatile and reliable for various applications ranging from harsh industrial settings to food and beverage, petrochemical, and wastewater environments. Constructed from superior 316 stainless steel, it ensures exceptional corrosion resistance and durability, meeting the high standards of the NEC and approved for both exposed and concealed locations. Complete with a sealing washer and stainless steel lock nut, this fitting boasts an enclosure rating of IP66/67 when installed with an approved conduit, ensuring optimal protection against dust and water ingress. The 1-inch NPT type fitting is RoHS compliant and is ideal for use with liquid tight flexible metal conduits, making it a reliable choice for demanding commercial and industrial projects.

• UL Listed and CSA Certified for safety and code compliance
• Enclosure rated IP66/67 with approved conduit for dust and water ingress protection
• Temperature rated from -49 to 221 °F for versatile environmental use
• Constructed from 316 stainless steel for superior corrosion resistance and durability
• New compact design 20% smaller and 35% lighter for tight spaces and easier handling
• Includes sealing washer and stainless steel lock nut for secure, leak-resistant connections
• RoHS compliant ensuring environmentally responsible manufacturing
• Approved for both exposed and concealed locations
• Designed for use with liquid tight flexible metal conduits in industrial and commercial applications
• Meets NEC standards for safe electrical installations

• Approval: UL Listed (Canada and US), CSA Certified, RoHS Compliant
• Trade Size: 1 in.
• Type: Compact, 90 Degree NPT
• Material: 316 Stainless Steel
• Minimum Internal Diameter: 23.8 mm
• Temperature Range: -49 to 221 °F
• Connector Type: 90°
