Anamet Electrical 34238 Liquid Tight Flexible Metal Conduit Type UA 1 in Gray PVC Jacket

Anamet Electrical's Liquid-Tight Flexible Metal Conduit (LFMC) offers reliable protection and flexibility in various applications, particularly suited for environments requiring stringent safety standards. Spanning a length of 400 feet, this conduit is designed for easy installation with standard liquid-tight connectors, and achieves an IP 67 rating when properly paired, assuring durability against moisture and particulates. It complies with multiple safety standards, such as UL Standard 360 and CSA C22.2, making it ideal for use in hazardous locations as outlined in NEC Articles. Versatile in temperature ranges from -40°F to +176°F, it is approved for both exposed and concealed applications, as well as for direct burial and in concrete, with sizes available from 3/8" to 4". This conduit also serves as an equipment grounding conductor when used according to specified conditions, further enhancing its utility in electrical installations. Whether for industrial settings, data centers, or commercial buildings, this conduit ensures robust performance under diverse conditions, suitable for a variety of installations.

• UL Listed and CSA Certified for safety assurance
• IP 67 rated for moisture and dust ingress protection

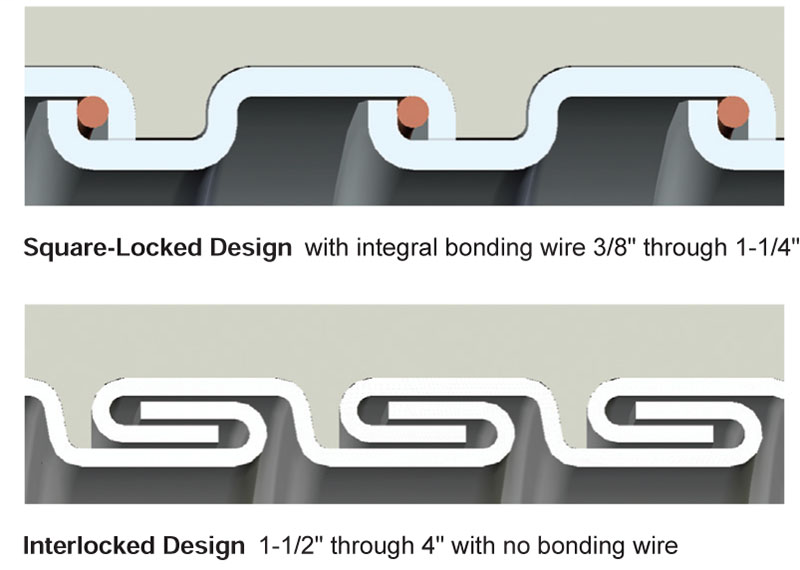

• Integral bonding wire for reliable equipment grounding
• Sunlight resistant and flame retardant PVC jacket
• Continuously interlocked hot dipped zinc galvanized steel core
• Flexible liquid-tight raceway for wiring protection
• Approved for direct burial and embedding in concrete
• Suitable for exposed, concealed, and hazardous locations
• Wide temperature range from -40ºF to +176ºF for versatile environments
• Easy installation with standard liquid-tight connectors

• Length: 400 ft (121.92 m)
• Approx. Inside Bend Radius: 6.0 in (152.4 mm)
• Inside Diameter: 1.041 to 1.066 in (26.441 to 27.076 mm)
• Outside Diameter: 1.290 to 1.315 in (32.766 to 33.401 mm)
• Approx. Weight per 100 ft: 73 lbs (33.11 kg)
• Electrical Trade Size: 1 in (27 mm)
• Type: UA
• Material: Hot dipped zinc galvanized steel, PVC jacket
• Certifications: RoHS WEEE, UL Listed & CSA Certified
• Ingress Protection Rating: IP 67
• Temperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
• Color: Gray
• Optional Colors: Black
• Cross-Reference #: 23104, 55-09-30-04, 6204-41-00, LA-13
