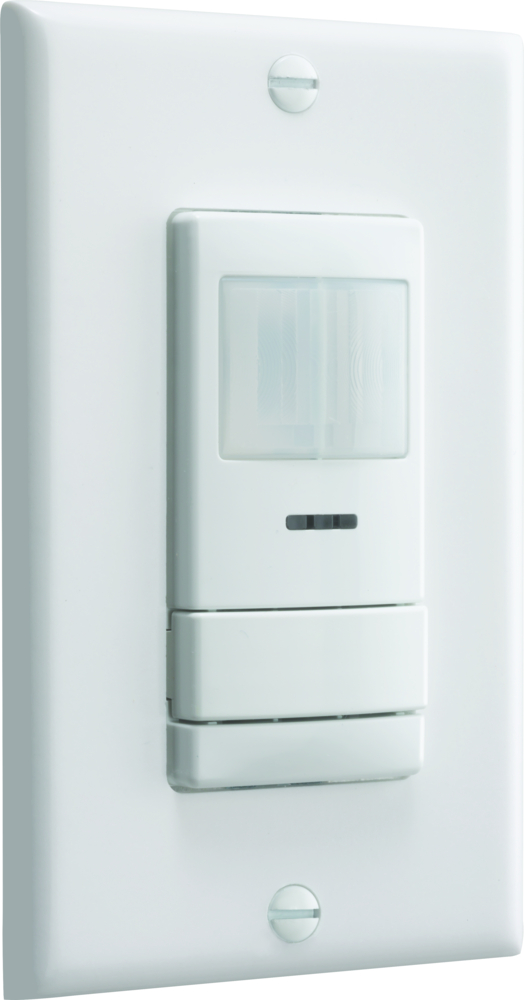

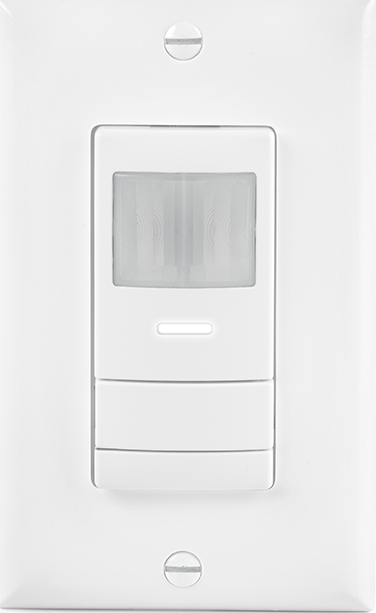

Acuity WSX WH Wall Switch Sensor Small Motion Detection 120 277V Dimmable White Plastic
Specifications
Color
White
Current
6.6A (120-277VAC), 4.3A (347VAC)
Dimmable
Yes
Dimmable (Y/N)
Yes
Environmental Conditions
Indoor
Finish
Gloss
Height
2.74 in
Horsepower
1/4 HP (120/277/347VAC) Motor
Length
1.63 in
Lens Material
Plastic
Material
Plastic
Maximum Operating Temperature
60 °C
Mounting
Semi-recessed
Operating Temperature Range
32°F to 140°F (0°C to 60°C)
Product Type
Sensor
Relative Humidity
Up to 90%, Non-Condensing
Technology
Passive Infrared (PIR) or Dual Technology (PIR + Microphonics)
Weight
0.332 lbs
Width
1.68 in
Designed for versatility and reliability, this wall switch sensor from Acuity, Inc. is an excellent addition to both commercial and residential lighting systems. It boasts compatibility with a wide range of lighting options, including LEDs, CFLs, and incandescent fixtures, making it a flexible choice for various environments. The innovative design includes a vandal-resistant lens and an easy wiring method that allows for straightforward installation, while preventing incorrect connections. With small motion detection capabilities of up to 20 feet, this sensor ensures efficient energy management in spaces such as private offices and restrooms. Additionally, its modern aesthetic features soft-click buttons and a low-profile design, which complements any setting while adhering to energy codes. Backed by a 5-year limited warranty, it combines durability and performance for a reliable solution in controlling lighting effectively.
