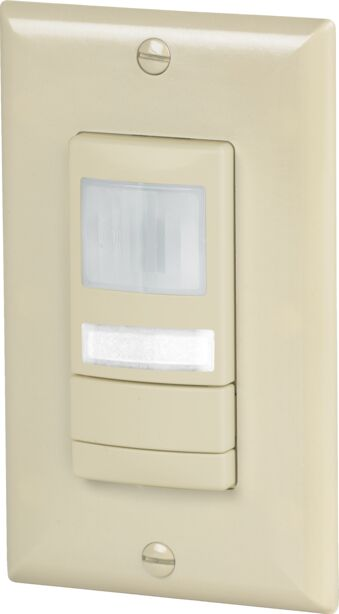

Acuity WSX PDT SA IV Wall Switch Sensor Passive Dual Technology 120 277V Dimmable Ivory Plastic
Specifications
Color
Ivory
Dimmable
Yes
Dimmable (Y/N)
Yes
Environmental Conditions
Indoor
Finish
Gloss
Frequency
50/60 Hz
Lens Material
Plastic
Material
Plastic
Mounting
Semi-recessed, Single gang switch box
Mounting Height
30-48 in
Operating Mode
Vacancy (default) or Auto-On
Shape
Rectangular
Size
5 in (L) x 3.5 in (W) x 2.5 in (H)
Standard
cUL, UL
Technology
Passive Dual Technology (PIR/Microphonics)
Temperature Rating
0°C - 60°C
Warranty
5 Year Limited
Weight
0.343 lbs (5.5 oz)
The passive dual technology wall switch sensor from Acuity, Inc. is a versatile solution designed to enhance energy efficiency in various indoor environments, including educational institutions, healthcare facilities, and commercial offices. Featuring a sleek ivory finish, this sensor can be set to vacancy mode by default or to auto-on, allowing for adaptable lighting control based on occupancy patterns. Its rectangular shape and semi-recessed mounting make it an unobtrusive addition to any space, while the durable plastic lens ensures longevity and reliability. Offering a dimmable option and a maximum operating temperature of 60 degrees Celsius, this product is suitable for a wide range of applications, providing a dependable and energy-saving lighting control solution with a five-year limited warranty.
