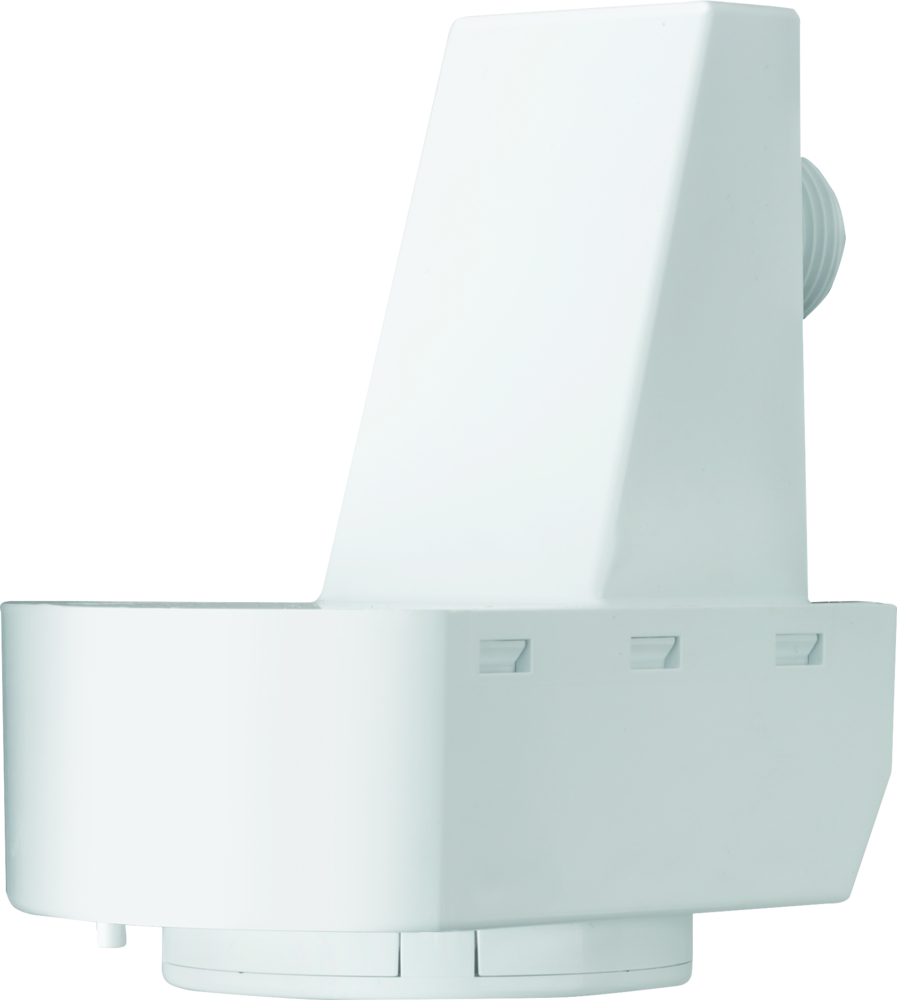

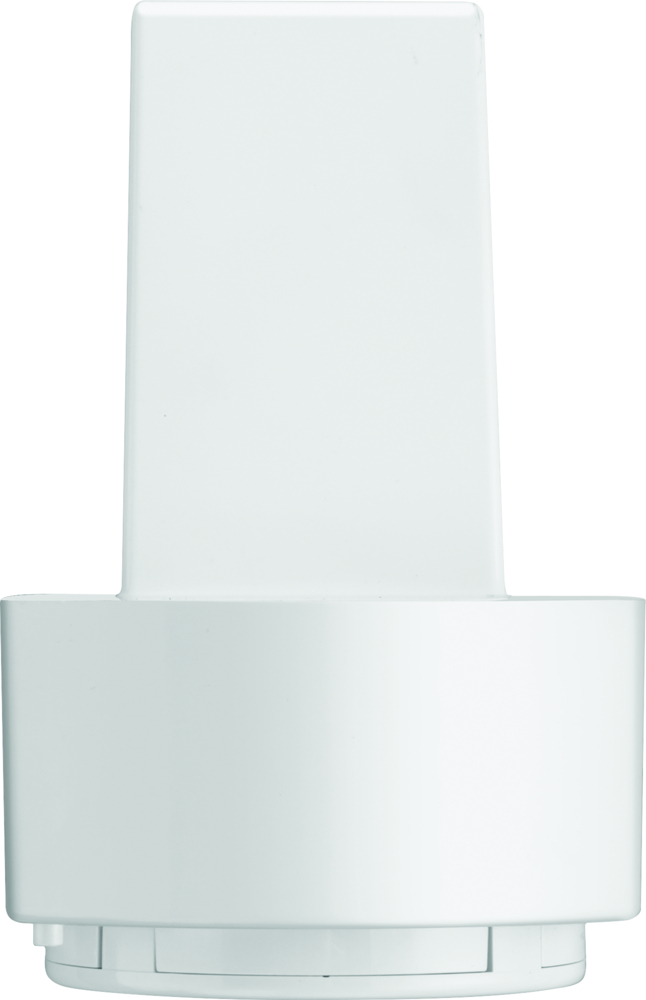

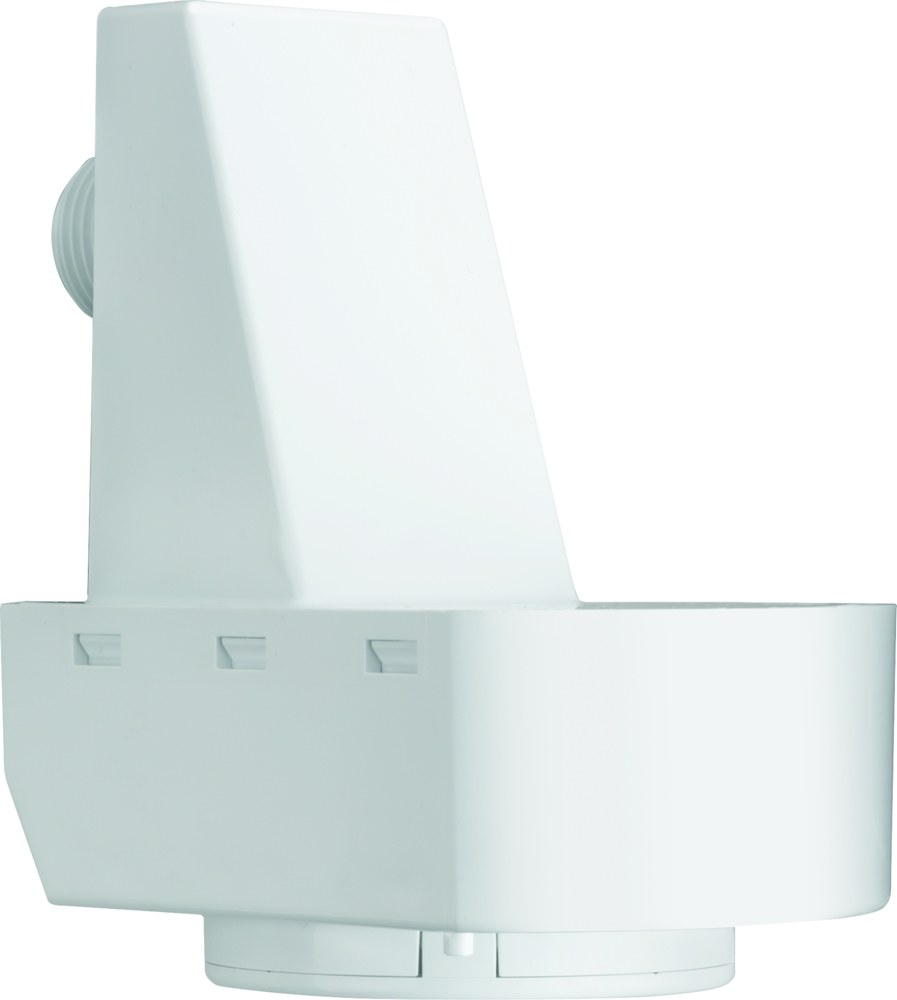

Acuity LSXR 610 Fixture Mount Sensor 120-277 VAC Passive Infrared White Plastic
Specifications
Color
White
Current
80 mA at 120-277V, 60 mA at 347V/480V
Finish
Gloss
Lens Material
Plastic
Material
Plastic, White
Maximum Operating Temperature
60°C (140°F)
Mounting
Fixture Attached (Initial)
Operating Temperature
14°F to 140°F (-10°C to 60°C), Low Temp Option: -4°F to 140°F (-20°C to 60°C)
Relative Humidity
Up to 90%, Non-Condensing
Voltage Rating
120, 208, 240, 277 V AC
Warranty
5 Year Limited
Weight
0.423 lbs
Acuity, Inc. presents a high-performance fixture mount interchangeable lens sensor, providing highly effective occupancy detection for a variety of commercial and industrial settings. This advanced sensor features integrated mounting that positions the lens three inches lower from the chase nipple, eliminating the need for additional bracket accessories, while its interchangeable lenses allow for customized coverage patterns suitable for various mounting heights.
With a default ten-minute occupancy time delay and the innovative LampMaximizer technology, this sensor not only enhances energy efficiency but also extends the life of fluorescent lamps. Its digital Passive Infrared (PIR) detection system ensures reliable operation across a spectrum of environments, including offices, warehouses, and healthcare facilities, making it a versatile solution for managing indoor lighting. Furthermore, with a robust five-year limited warranty and compliant with energy management regulations, this sensor stands out as a dependable choice for effective lighting control.
