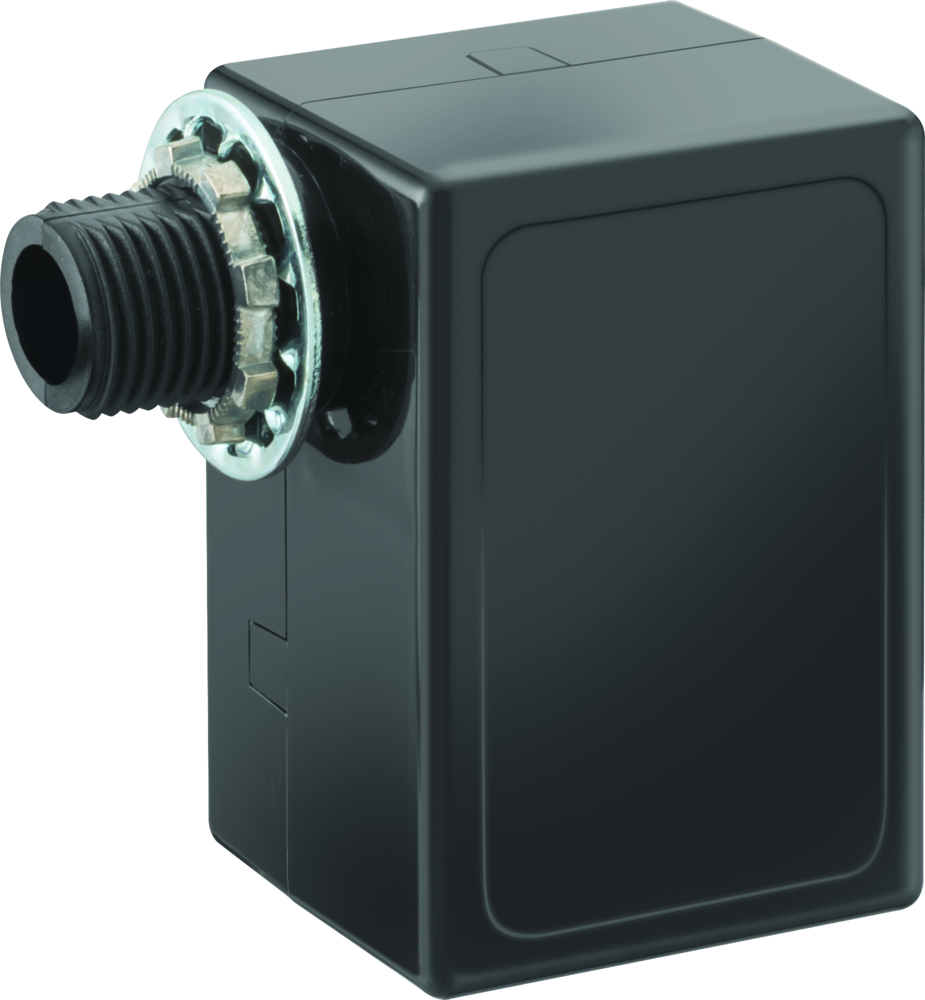

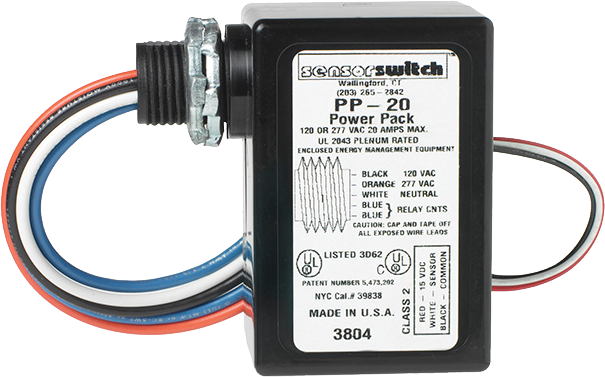

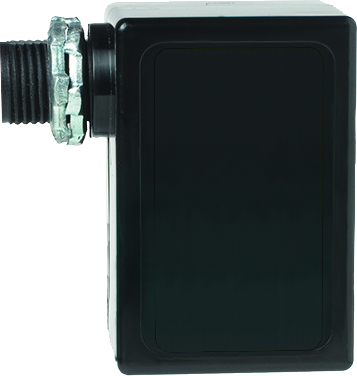

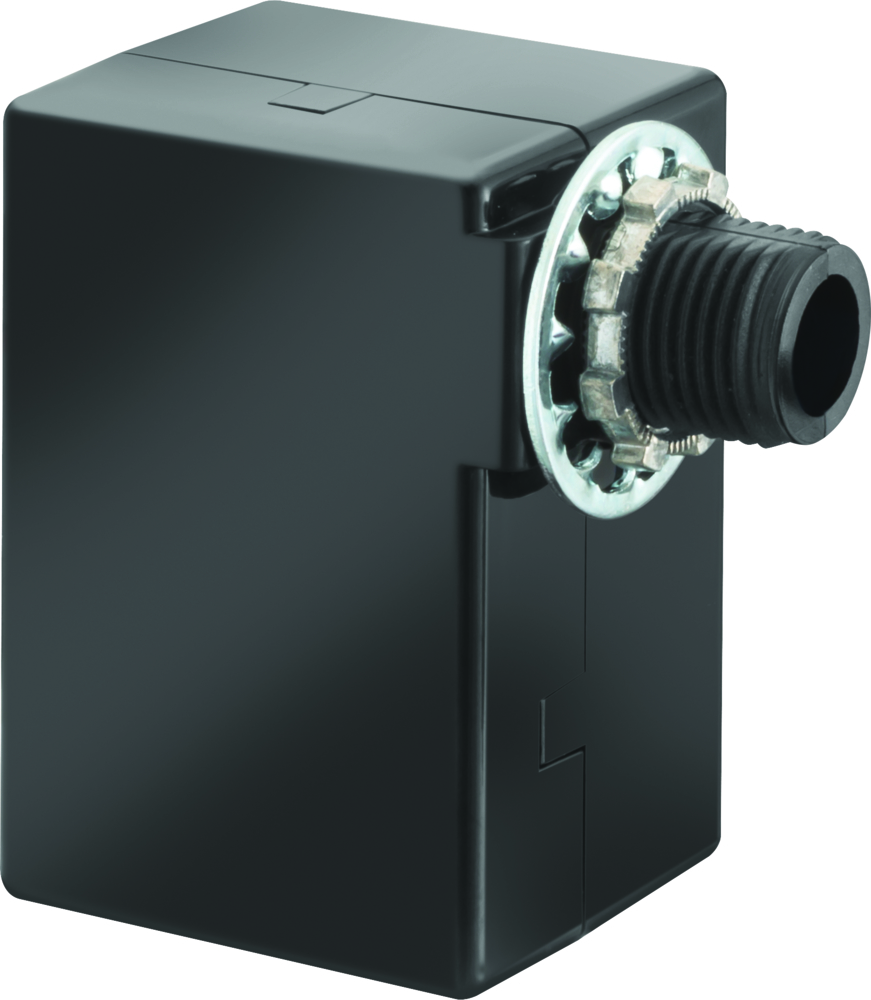

Acuity Inc PP20 Power Pack 120 240 277 VAC to 15 VDC Patented Relay Protection Black Plastic
Specifications
Application
Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
Certifications
cUL, UL, RoHS, UL2043 Plenum
Color
Black
Environmental Conditions
Indoor
Finish
Gloss
Height
4 in
Length
4 in
Material
Plastic
Maximum Operating Temperature
60 °C
Mounting
Unit to J Box
Output Current
20A per pole (150mA total)
Output Voltage
15 VDC
Weight
0.97 lbs
Width
2.5 in
The PP20 Power Pack from Acuity, Inc. is an essential component for low voltage sensor systems, adeptly transforming 120, 240, or 277 VAC to Class II 15 VDC, effectively powering up to 14 sensors. This unit is engineered with a patented relay circuit protection feature that not only safeguards the internal mechanisms but also withstands extensive testing, proving reliable for over 400,000 cycles at rated load. Designed for versatility, it can be mounted directly through a 1/2 inch knockout in a junction box, making it suitable for various environments such as educational institutions, healthcare facilities, and commercial spaces. Additionally, the device is constructed from durable materials and complies with industry standards, ensuring a dependable and efficient operation in diverse applications.
