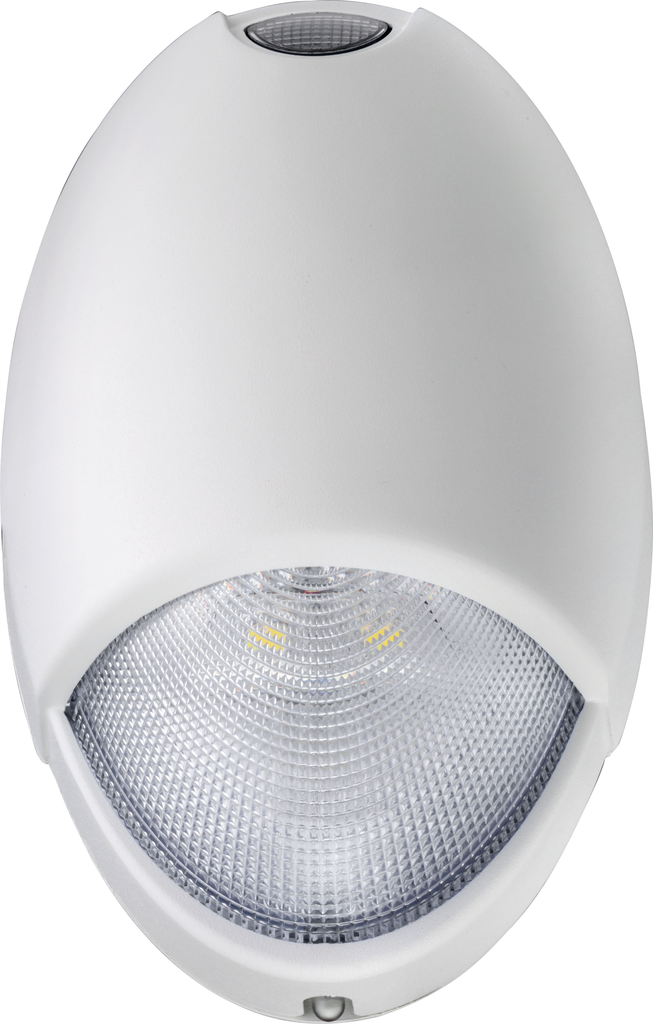

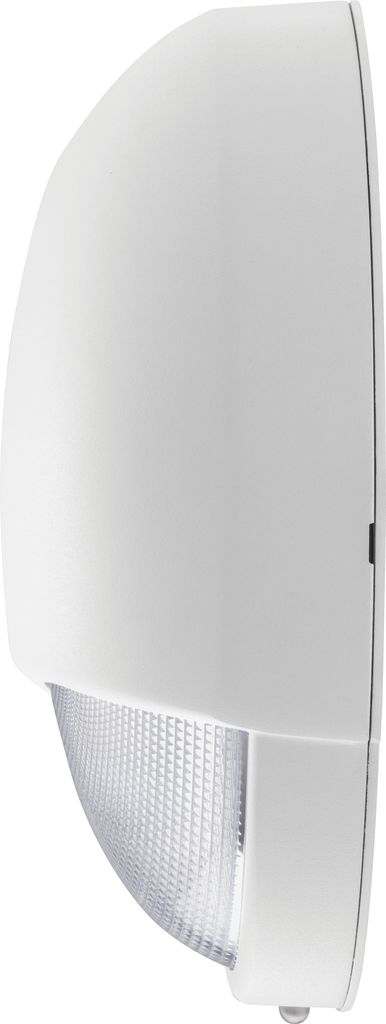

Acuity Inc AFO W MVOLT N SD M6 Emergency Lighting Unit 120-277V 1275LM LED Oval White Aluminum Polycarbonate
Specifications
Average Life
60,000 hrs (L70 LED)
Battery Life
7-9 years typical
Battery Voltage
4.8 V
Certification
UL Listed, NFPA 101, CA Title 20 Certified
Color
White textured
Color Temperature
5000 K
Environmental Conditions
Indoor, Outdoor
Finish
Matte
Lamp Included
Yes
Lamp Type
LED Static
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
1275 LM Normal-On, 350 LM Emergency
Material
Die-cast aluminum housing
Maximum Operating Temperature
50 °C
Mounting
Surface
Operating Temperature Range
0 to 50 °C standard, -30 to 50 °C cold weather option
Power Consumption
2.8 W
Product Type
Emergency Lighting Unit
Standard
NFPA 101, UL
Weight
4.2 lbs standard battery, 4.4 lbs cold weather battery
Engineered for both aesthetic appeal and robust performance, the Architechtural LED Emergency Unit from Acuity, Inc. is ideal for a diverse array of applications including education, healthcare, and retail environments. This emergency lighting solution features a sleek, oval design that blends seamlessly into both indoor and outdoor settings, ensuring reliability even in cold and wet conditions. With a maintenance-free nickel-cadmium battery and self-diagnostic capabilities, it automatically conducts monthly and annual tests, enhancing peace of mind for users. Operating on a versatile 120-277V range with an impressive output of up to 1,275 lumens, this unit not only meets NFPA 101 and UL standards but also promises an average lifespan of 60,000 hours. Its clear polycarbonate lens and matte white housing combine functionality with a modern look, making it a valuable addition to any facility's emergency lighting strategy.
