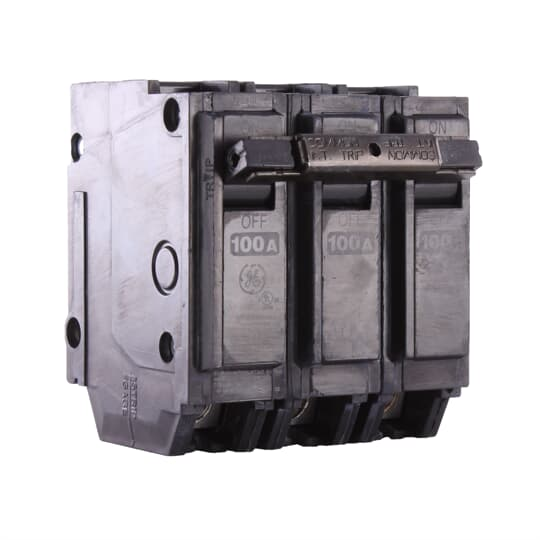

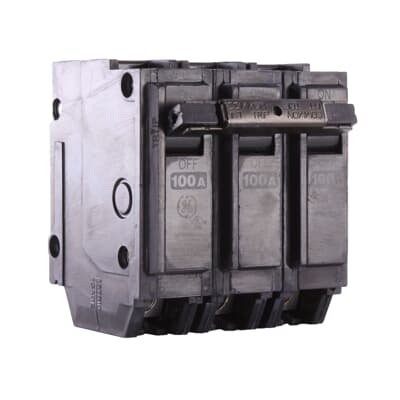

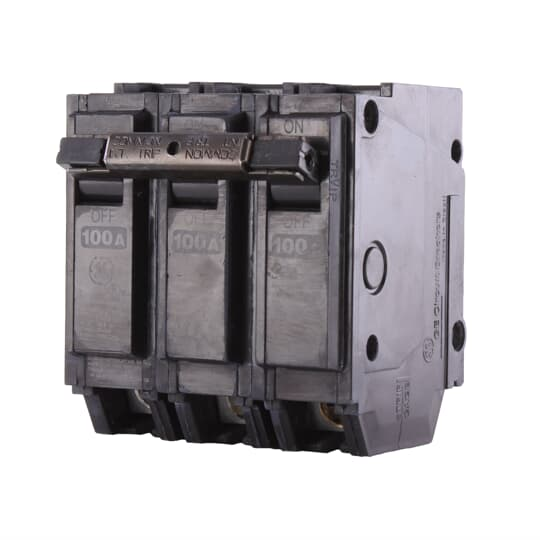

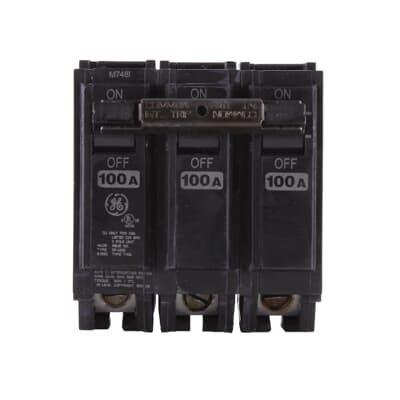

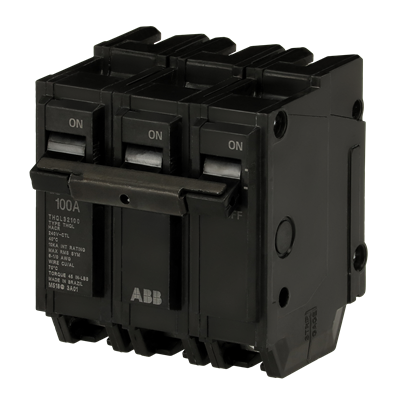

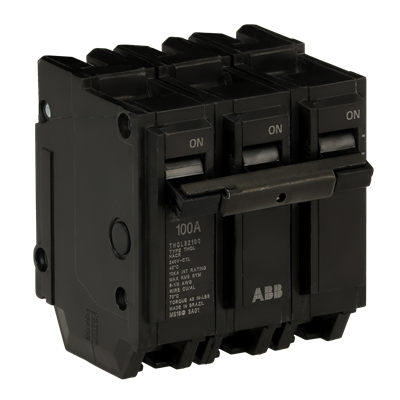

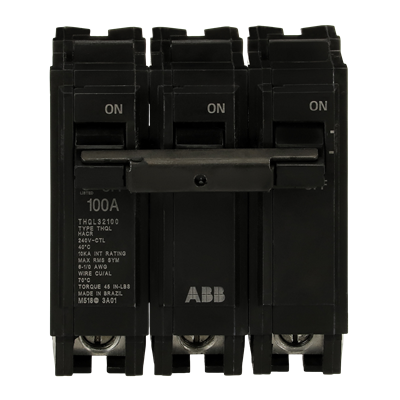

ABB THQL32100 Circuit Breaker 3-Pole 100A 240V HACR 10kA Q-Line Plug-In
Specifications
Amperage
100 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Interrupting Capacity
10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 Vac
Load Rating
HACR
Number of Poles
3
Standard
E11592
Trip Range
Non-Interchangeable
Trip Type
LI
This three-pole circuit breaker from ABB is engineered for thermal-magnetic protection, making it a reliable choice for managing electrical loads in various applications. With an amperage rating of 100 A and a voltage rating of 240 V, it is particularly suited for HACR-rated loads, ensuring it meets diverse operational requirements. The device features an interrupt rating of up to 10 kA, guaranteeing safety and stability under fault conditions. Designed as part of the Q-Line series, this plug-in circuit breaker upholds compliance with E11592 standards and adheres to pertinent regulations, making it a dependable option for industrial settings.
