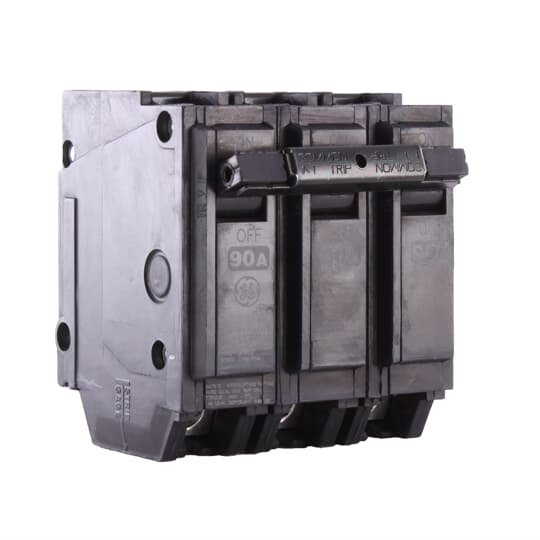

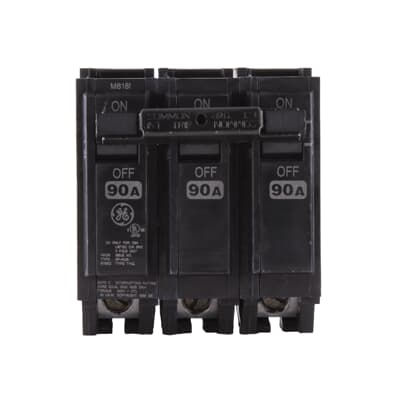

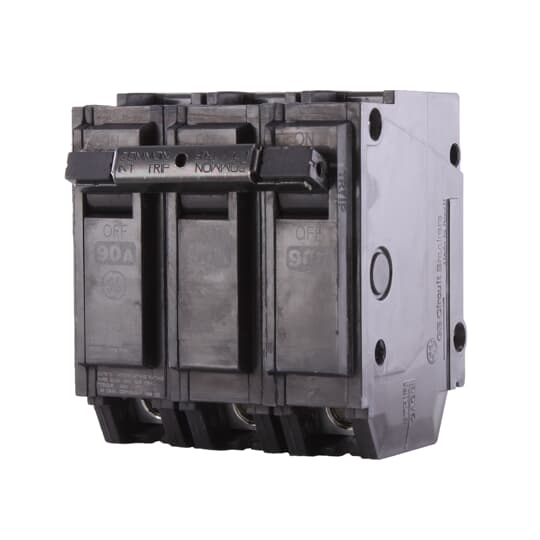

ABB THQL32090 Circuit Breaker 3 Pole 90A 240V Thermal Magnetic LI Q-Line
Specifications
Amperage
90 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Interrupting Capacity
10 kA@120 Vac / 10 kA@120/240 Vac / 10 kA@240 Vac
Load Rating
HACR
Number of Poles
3
Standard
E11592
Sub Brand
Q Line
Trip Range
Non-Interchangeable
Trip Type
LI
This reliable circuit breaker from ABB is engineered for thermal-magnetic application, embodying a robust design that ensures dependable performance under demanding conditions. With a voltage rating of 240 V and a load rating compliant with HACR standards, it effectively protects electrical circuits by interrupting potential overloads with an interrupt rating of 10 kA across its operational voltages. Featuring a three-pole configuration and a 90 A amperage rating, this circuit breaker is part of the Q-Line series, designed for seamless integration into various panel applications, offering stability and safety in electrical management. Its non-interchangeable trip range and standard compliance with E11592 further demonstrate its suitability for industrial and commercial use, ensuring peace of mind in your electrical systems.
