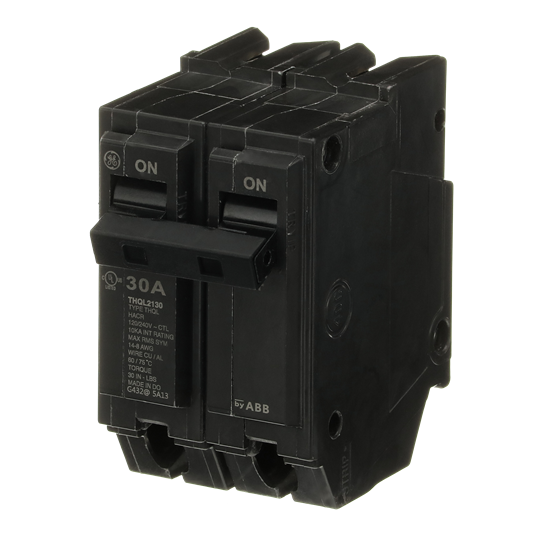

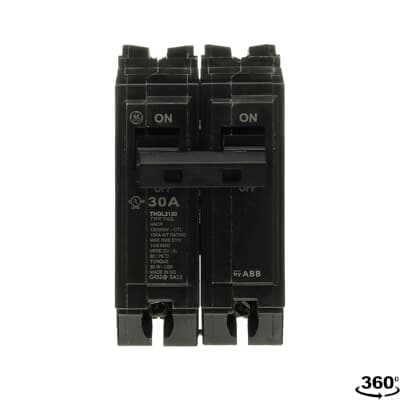

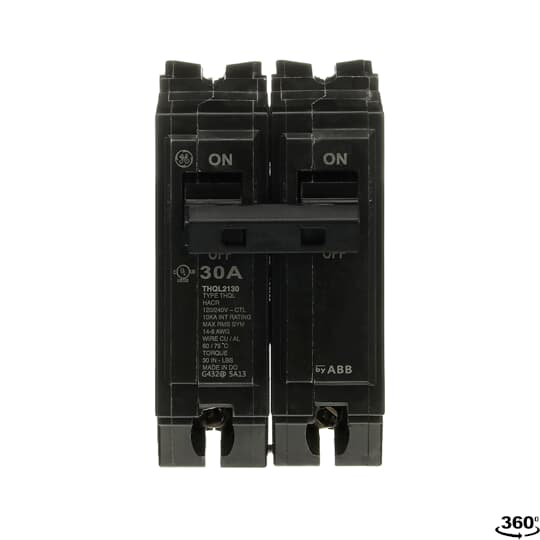

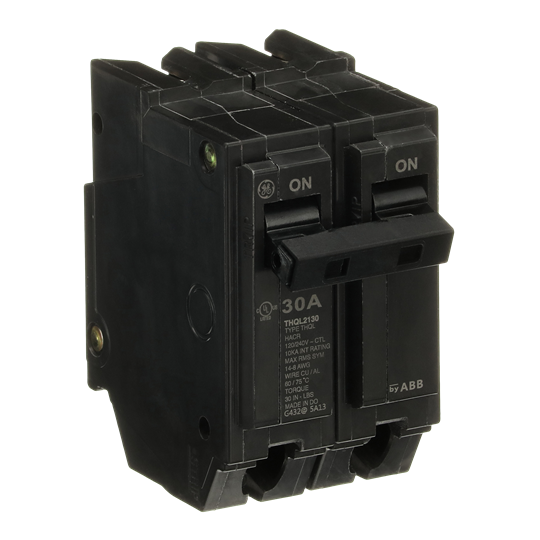

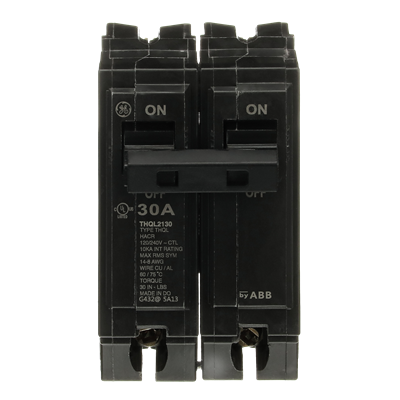

ABB THQL2130 Circuit Breaker 2 Pole 30A 240V 10kA LI Q-Line
Specifications
Amperage
30 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Load Rating
HACR
Number of Poles
2
Standard
UL Listed (E11592)
Trip Type
LI (Non-Interchangeable)
Voltage Rating
240 V
Designed to deliver robust thermal-magnetic protection, this circuit breaker from ABB's Q Line series is engineered for use in a variety of electrical applications. With a dual-pole configuration rated at 30 amps and a voltage capacity of 240 volts, it offers reliable performance where safety is paramount. The circuit breaker features a low instantaneous trip type, ensuring that it can respond quickly to overload conditions. Its interrupt rating of 10kA at both 120 Vac and 240 Vac makes it suitable for handling demanding scenarios, providing peace of mind for electrical systems. This device not only adheres to industry standards but is also compliant with regulatory acts such as the American Recovery and Reinvestment Act and the Buy American Act, reflecting ABB's commitment to quality and compliance in electrical components.
