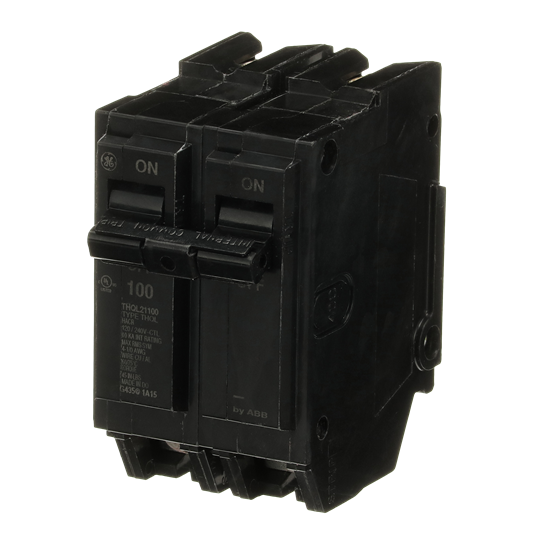

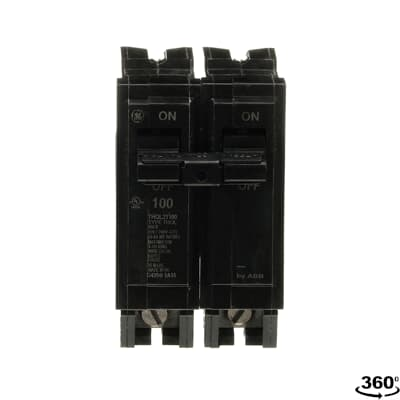

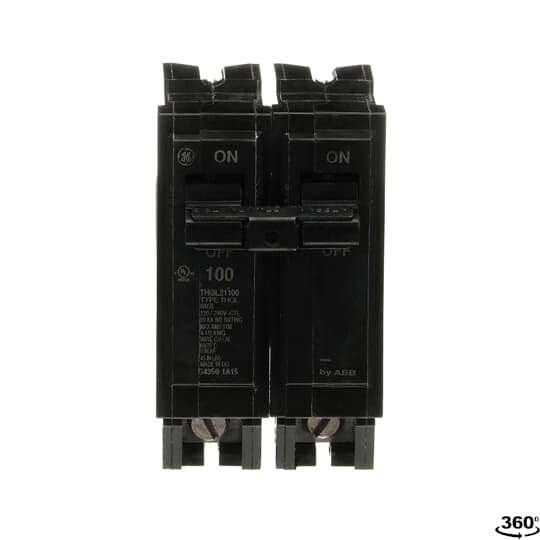

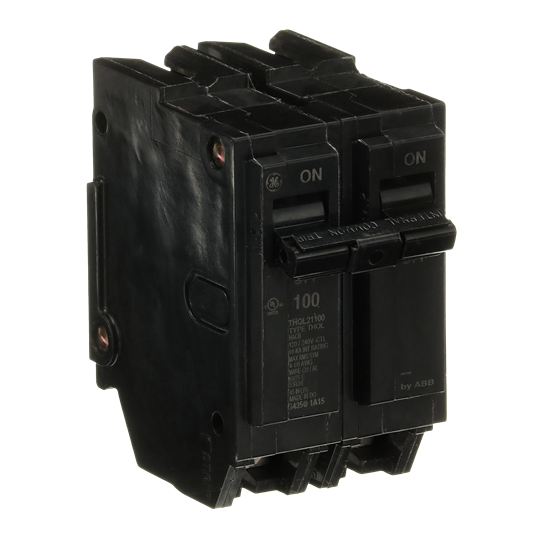

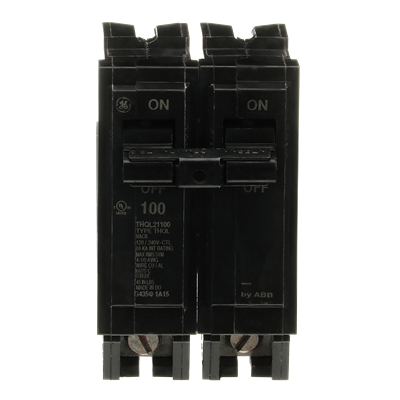

ABB THQL21100 Circuit Breaker 2-Pole 100A 240V Thermal Magnetic HACR Q-Line Plug-In
Specifications
Amperage
100 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Interrupt Rating
10 kA @ 120 Vac / 10 kA @ 120/240 Vac
Load Rating
HACR
Number of Poles
2
Sub Brand
Q Line
Trip Range
Non-Interchangeable
Trip Type
LI
Voltage Rating
240 V
The THQL 2-Pole Circuit Breaker from ABB is engineered for demanding electrical applications, providing robust thermal magnetic protection with a reliable trip type. Designed to accommodate a voltage rating of 240 V, it features a two-pole configuration with a total amperage rating of 100, ensuring it meets the needs of various load ratings, including HACR. This breaker boasts an interrupt rating of 10kA at both 120 Vac and 120/240 Vac, making it an essential choice for maintaining safety and efficiency in electrical systems. The Q-Line series incorporates a plug-in design for straightforward installation, balancing ease of use with compliance to industry standards.
