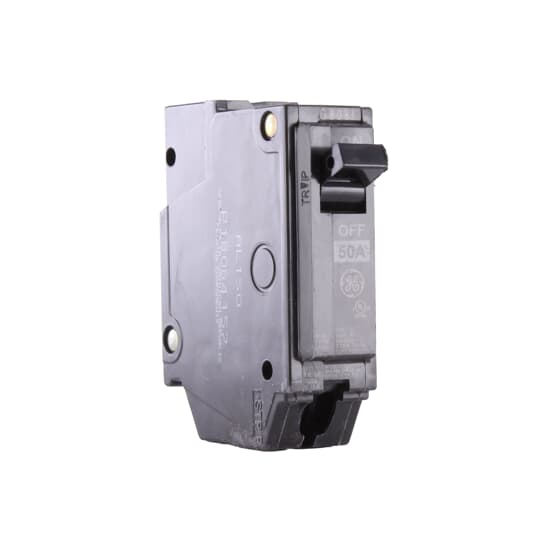

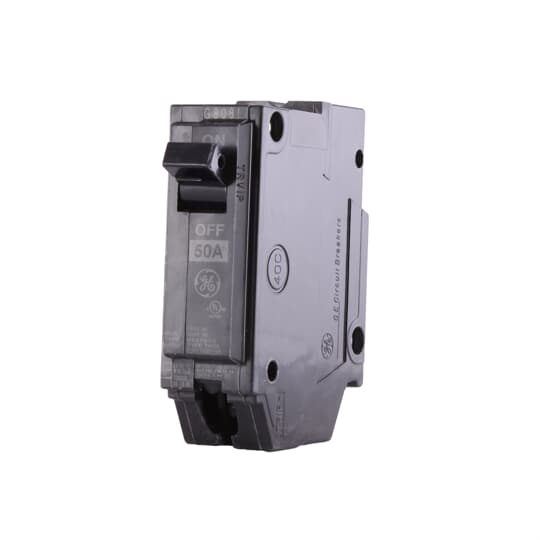

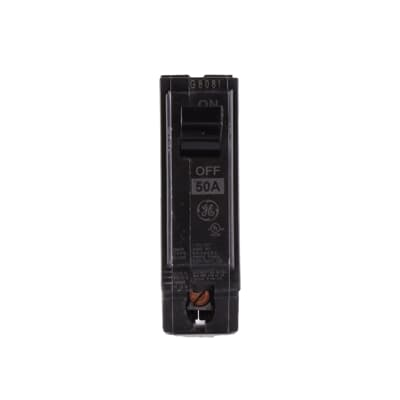

ABB THQL1150 Thermal Magnetic Circuit Breaker 1 Pole 240V 50A 10kA Q-Line Plug-In
Specifications
Amperage
50 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Interrupting Capacity
10 kA @ 120 Vac, 10 kA @ 120/240 Vac
Load Rating
HACR
Number of Poles
1
Standard
E11592
Sub Brand
Q Line
Trip Range
Non-Interchangeable
Trip Type
LI
This thermal magnetic circuit breaker is engineered for reliable performance in electrical systems, featuring a one-pole design with a voltage rating of 240 volts. Capable of handling a load rating suitable for HACR applications, it provides essential protection with an interrupt rating of 10kA at both 120 Vac and 120/240 Vac. The unit operates with a non-interchangeable trip range and is built on ABB's Q-Line frame, known for its robust and flexible plug-in capabilities. Compliance with standards such as the Buy American Act and the American Recovery and Reinvestment Act underscores its quality and accountability, making it a dependable choice for a variety of electrical installations.
