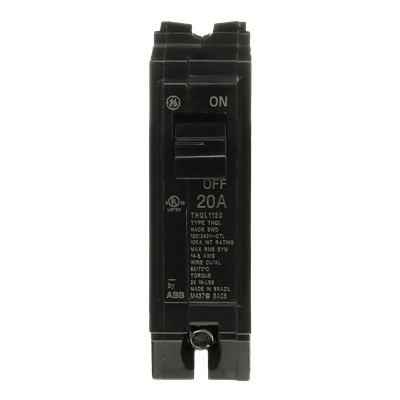

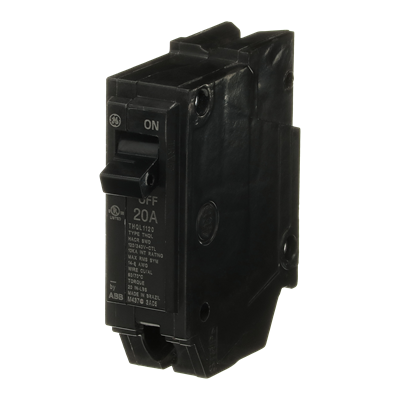

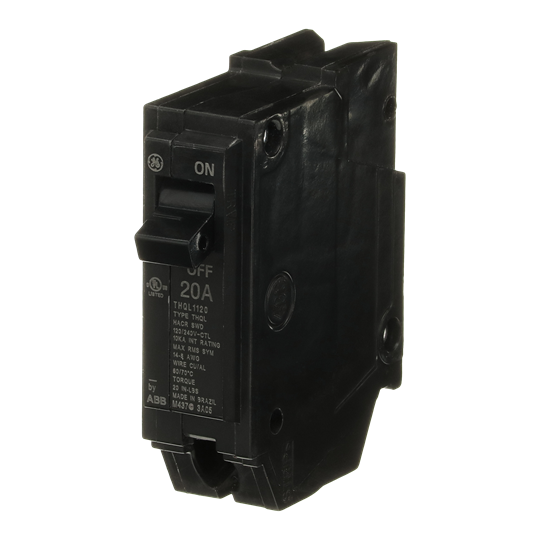

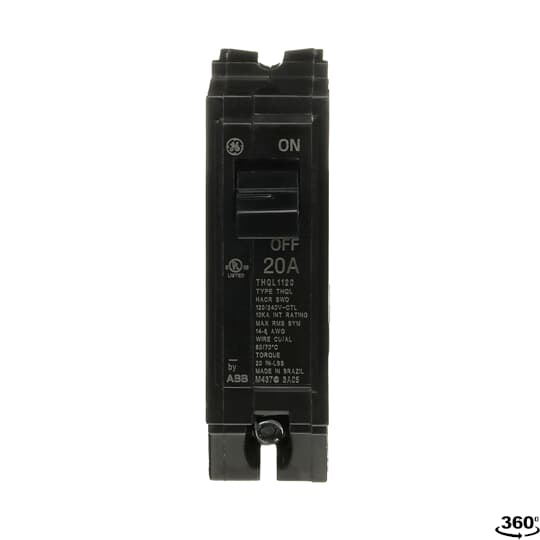

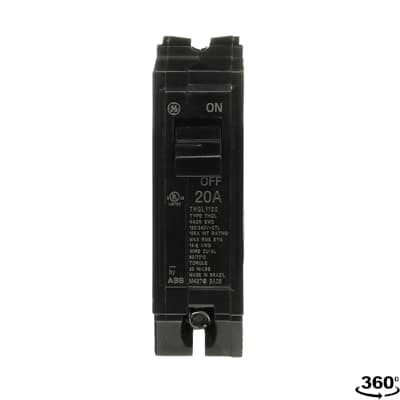

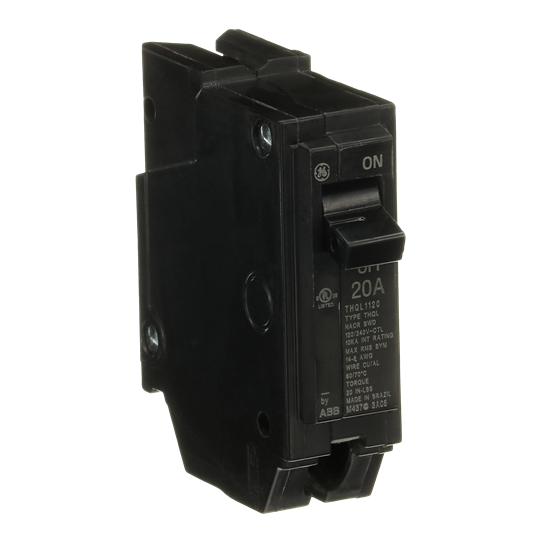

ABB THQL1120 Circuit Breaker 1 Pole 20A 240V 10kA HACR SWD Q-Line
Specifications
Amperage
20 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Interrupting Capacity
10 kA @ 120/240 V
Load Rating
HACR / SWD
Poles
1
Standard
UL Listed (E11592)
Sub Brand
Q Line
Trip Range
Non-Interchangeable
Trip Type
LI
Engineered for exceptional thermal magnetic protection, this circuit breaker from ABB's Q-Line series is designed to enhance electrical safety and efficiency. Featuring a single pole configuration with a voltage rating of 240V and an amperage rating of 20A, it ensures reliable operation across various applications. The robust interrupt rating of 10kA at both 120Vac and 240Vac allows for effective management of fault conditions, making it suitable for HACR and SWD load ratings. Moreover, it complies with the American Recovery and Reinvestment Act and the Buy American Act, ensuring that it meets stringent standards while delivering dependable performance in both residential and commercial settings.
