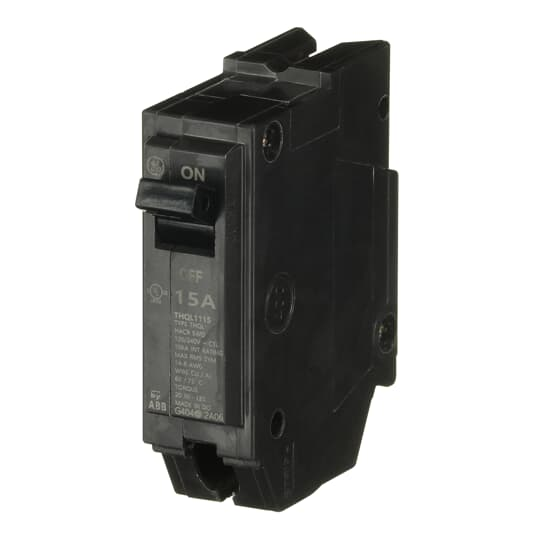

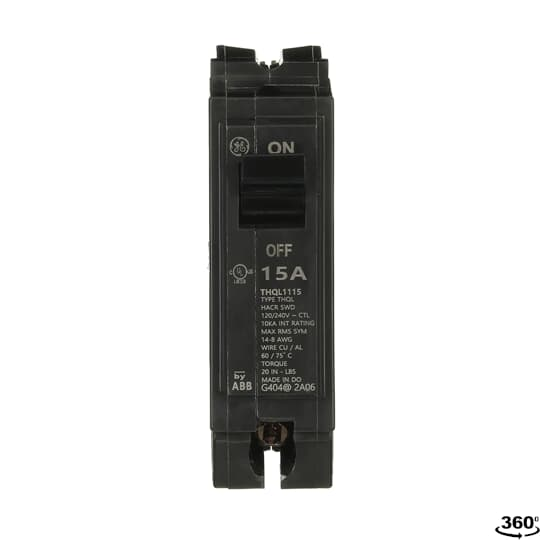

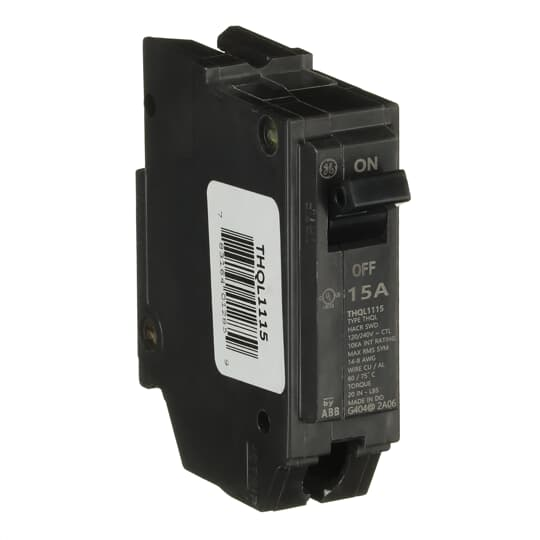

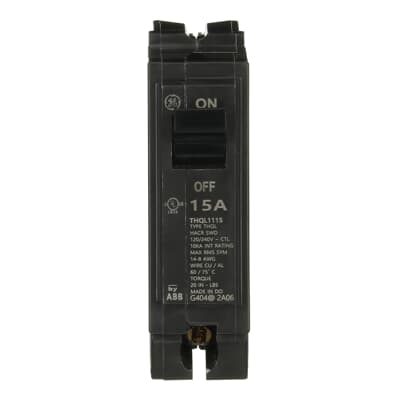

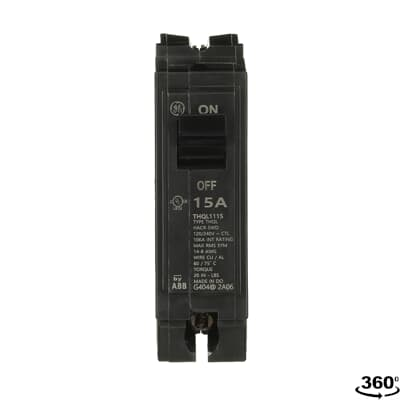

ABB THQL1115 Circuit Breaker 1 Pole 15A 240V 10kA Q-Line Thermal Magnetic
Specifications
Amperage
15 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Frame
Q-Line
Interrupt Rating
10 kA @ 120 Vac / 10 kA @ 120/240 Vac
Load Rating
HACR / SWD
Number of Poles
1
Standard
UL E11592
Trip Range
Non-Interchangeable
Trip Type
LI
Voltage Rating
240 V
The THQL 1 POLE 120/240V 10K IC 15 AMP circuit breaker from ABB is engineered for effective thermal magnetic protection in various applications. With a voltage rating of 240V and an interrupt rating of 10kA at both 120V and 240V, it ensures safety and reliability under load conditions. This dependable breaker features a single pole design and operates within a non-interchangeable trip range, making it suitable for HACR and SWD load types. As part of the Q Line series, it adheres to industry standards and compliance requirements, ensuring it meets the needs of modern electrical systems.
