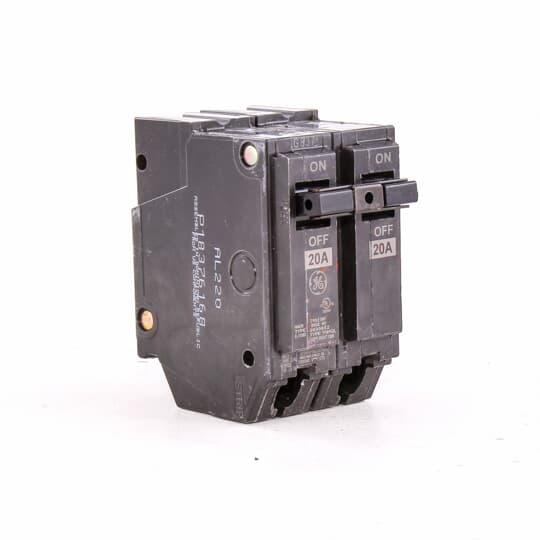

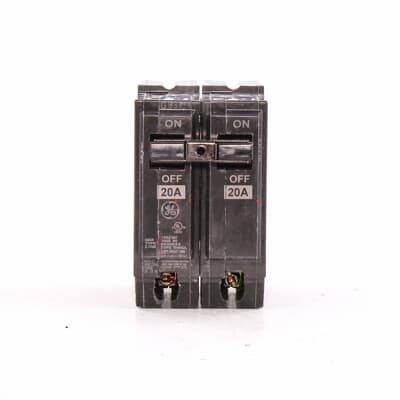

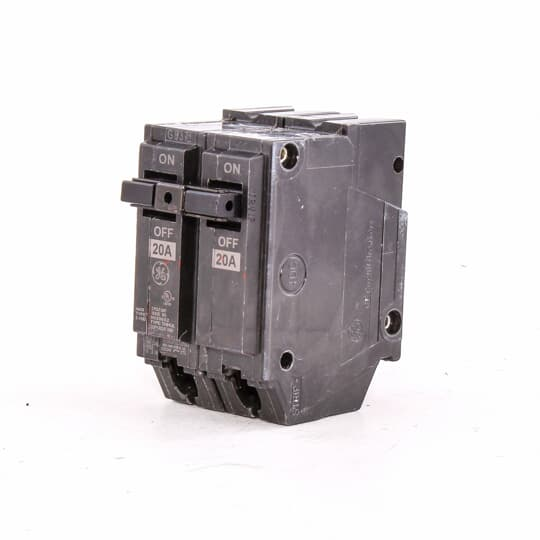

ABB THHQL2120 Thermal Magnetic Circuit Breaker 2P 20A 120/240V 22kA Q-Line Plug-In
Specifications
Amperage Rating
20 A
Application
Thermal Magnetic
Brand Name
Q-Line (Plug-In)
Connection
14-8 kcmil / 12-8 kcmil
Frame
Q-Line
Interrupt Rating
22kA@120 Vac / 22kA@120/240 Vac
Load Rating
HACR
Number of Poles
2
Standard
UL File # E11592
Sub Brand
Q Line
Trip Range
Non-Interchangeable
Trip Type
LI
Voltage Rating
120/240 V
This thermal magnetic circuit breaker from ABB offers robust protection with a dual-pole configuration, designed to operate effectively at 120/240 volts and rated for a load of 20 amps. Engineered within the Q-Line framework, it features an impressive interrupt rating of 22kA at both 120 VAC and 120/240 VAC, ensuring reliable performance in demanding applications. With a trip type categorized as Long-Time Instantaneous (LI) and a non-interchangeable trip range, it meets diverse installation needs while adhering to the required standards. Additionally, its compact, plug-in design simplifies installation and is suitable for various applications, making it a dependable choice for panel builders and electricians alike.
